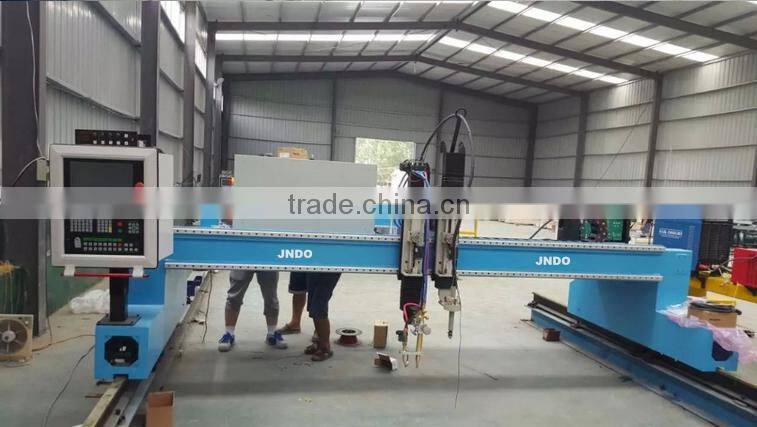

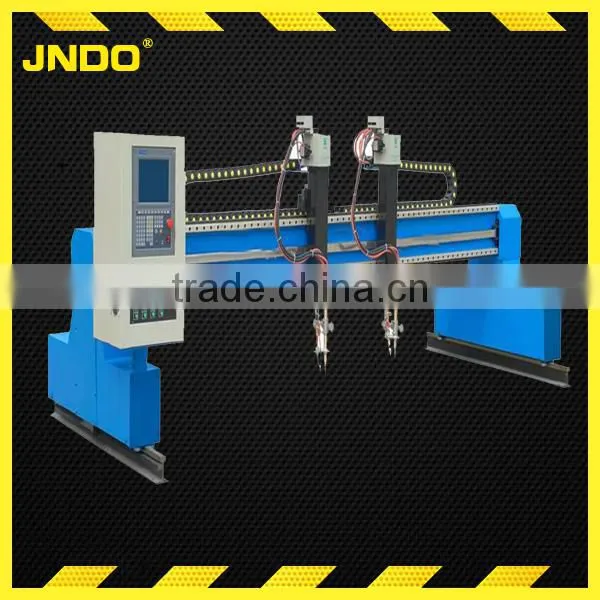

factory gantry type sheet metal cnc plasma cutting machine
The gantry CNC plasma and flame cutting machine are widely applied to the cutting of shipbuilding industry,steel structure,pressure vessel and various metallic plates in mechanical industry.its high automation and cutting precision save the human resources and improve the working efficiency,which makes it suitable for industrial and mining enterprises. .
2. Gar-rack driving motions without engagement gap ensure the machine running smooth at high speed.
3. Fully functionalized CNC system and optocoupler device enhance the super anti-jamming capability of the plasma system.
4.Synchronism cutting of multiple cutting torches can be provided;
5.Gapless gearing transmit, stable and smooth running in high speed, smart, fine surface quality.
6.Low maintenance cost, dispense with special maintenance, friendly operator interface.
7. World’s top branded components and circuits ensure long service life.
8. Multiple cutting torches can be configured. Both flame and plasma torches are optional to meet the needs of cutting different materials in a range of thickness.
Item |
Descriptions |
Specification |
Machine Body |
Gantry Width (mm) |
4000 |
Rail length (mm) |
12000 |
|
Effective Cutting Area(mm) |
3000mmx10000 |
|
Drive motor |
Dual-drive / Panasonic AC servo motor |
|
Max traveling speed(mm/min) |
12000mm/min |
|
Flame Torch |
Flame Cutting Torch Number |
1Set Flame torch |
Flame Cutting Thickness(mm) |
6-120mm |
|
Flame Torch Height Sensor |
TAYOR Torch Height sensor |
|
Flame Cutting Speed(mm/min) |
50-800mm/min |
|
Flame cutting Gas Pressure and Flow Request |
Oxygen:0.5-0.8MPa Purity: 99.5%; Flow:1.0M3/h |
|
|
Fuel Gas :Propane or Acetylene Pressure:0.05-0.1MPa | ||
Plasma Torch |
Plasma Cutting Torch Number |
1 Set Plasma torch |
Plasma Torch Height Sensor |
Hypertherm Sensor THC |
|
Plasma Torch Anti-Collision Holder |
TAYOR |
|
Plasma Cutting Speed(mm/min) |
50-4500mm/min |
|
Model |
Hypertherm powermax105 |
|
Plasma Cutting Thickness(mm) |
50mm(carbon steel) |
|
Country of origin |
Made in USA |
|
Max current output |
500A |
|
Power |
80KW |
|
Duty cycle |
100% |
|
Surface decline angle |
4-7 |
|
Plasma Cutting Gas Request |
Basically gas: dry and oil free compressed air Pressure and Flow as per Plasma Manuel |
|
CNC Controller |
Hypertherm |
Micro EDGE pro(Made in USA)15” monitor |
Nest Software |
Nest Software |
FASTCAM (Australia) |
Electrical Components |
PLC |
Delta(Taiwan Brand) |
Electric Components |
SIMENS |
|
Cables |
CE approached cable |
|
Dust Extraction |
Water Surface Cutting Table |
Made by user as per TAYOR’s drawing |
Down draft drawing Cutting table |
Made by user |
Comprehensive Accuracy
Positioning Accuracy |
±0.5mm/1000mm |
Repeatability |
±0.5mm/1000mm |
Speed setting error |
≤±5% |
THC accuracy |
≤±0.5mm |
Length of a side Error(mm) |
±0.5mm |
Base Point Return Error |
±0.4mm |
Intersection point Error |
±0.5mm |
Lineation forward-reverse Error |
±0.2mm |
Working Conditions
|
Power Supply
Temperature Humidity Surroundings |
Machine : 220v±10%;50Hz~60Hz(Customized) Plasma System: 3×380v±10%;50Hz~60Hz(Customized) -10°C-50°C <90% /No Condensation Ventilate, No big shake |

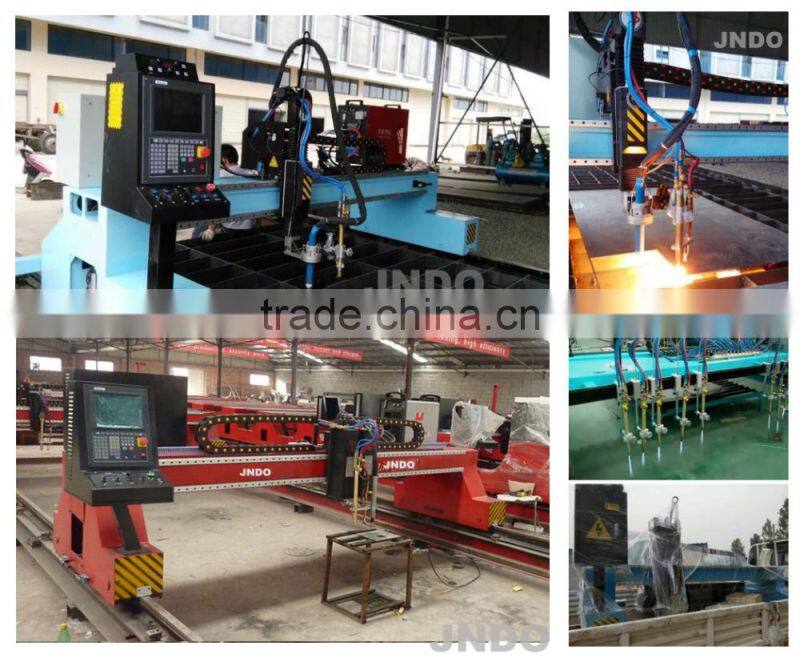

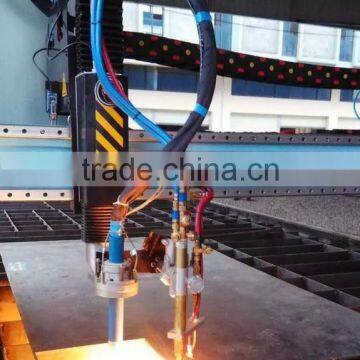

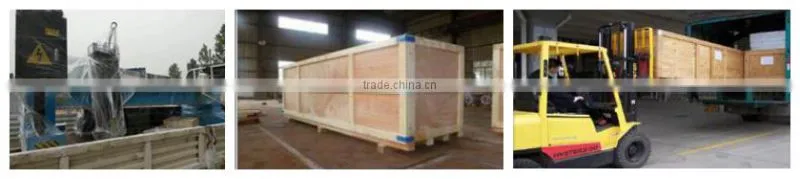

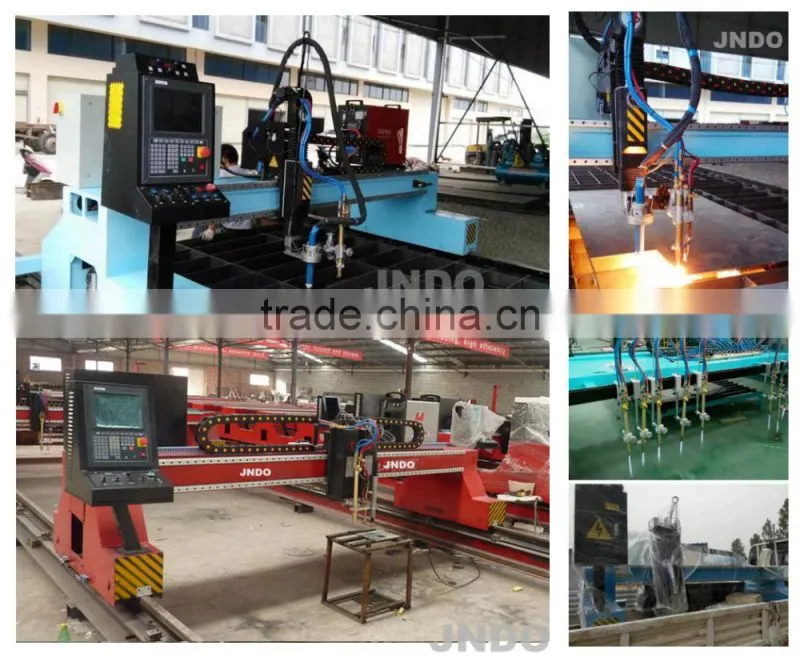

Real Pictures of Cutting Machine

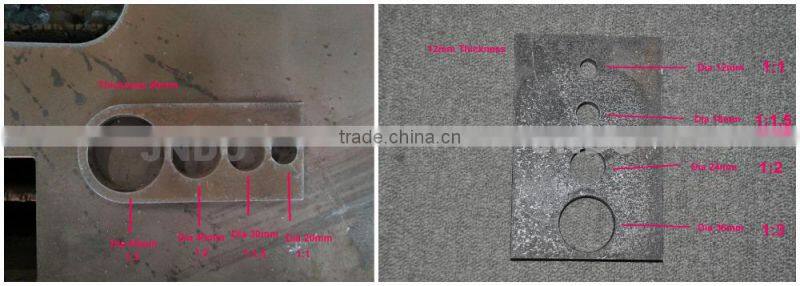

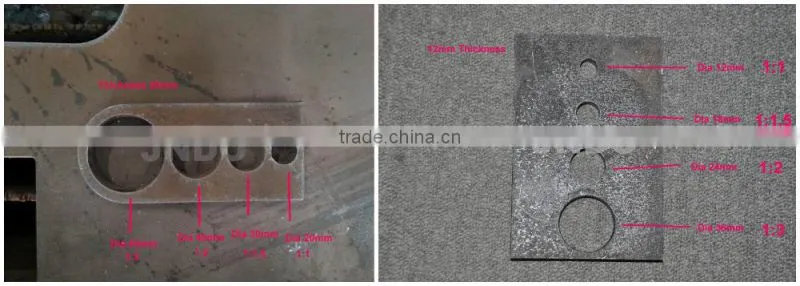

Cutting Sample

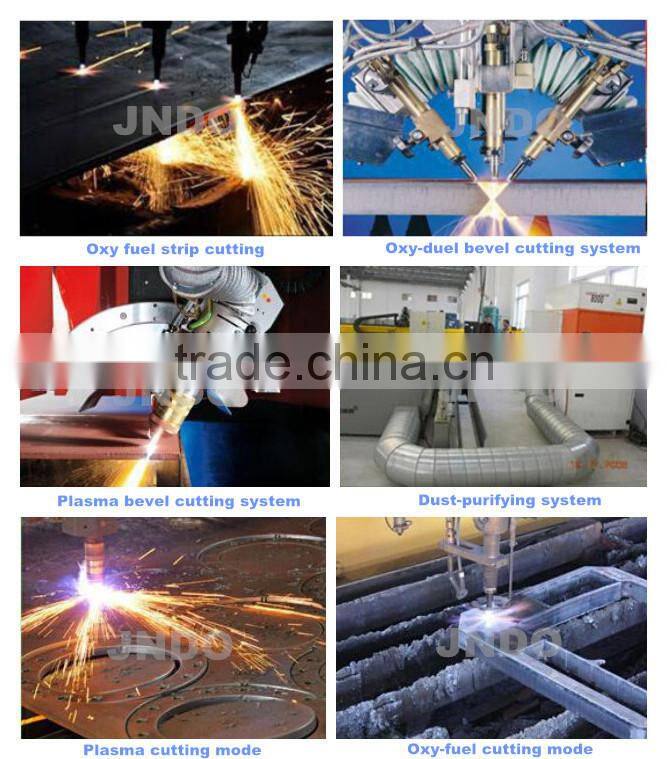

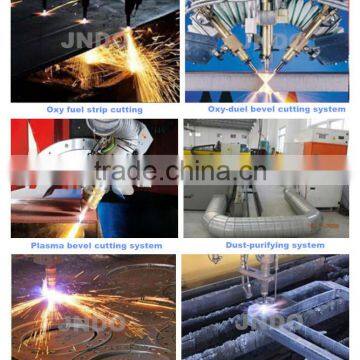

Application of Cutting Machine
We appreciated that if you can supply following details,so we can give you more useful suggestion:
1.The cutting size(width*length)?
2. The minimum and maximum cutting thickness?
3. Cutting material is mild steel or stainless steel?
4. The material shape is metal sheet,or metal plate,or proximate matter,or steel pipe?
