CNC tube plate cutting machine price
- 100 Set / Sets per Month
- QINGDAO
- T/T Credit Card
- REBOUND CNC plasma cutting machinery with bevel head 30mm
- REBOUND cnc detachable gantry plasma and flame cutting machinery sheet
- Best price cnc detachable plasma cutting machinery for gas-plasma cutting
- helical rack and pinion cnc detachable plasma cutting machinery automatic high safety level
- pump inside air detachable plasma cutting machinery sliding work bench
- solenoid valve for detachable plasma cutting machinery lokermann high safety level
Product Details
Condition: | New | Place of Origin: | Shandong, China | Brand Name: | JNDO |
Model Number: | pipe cutting machine | Voltage: | 220V | Rated Power: | 220w/600w |
Dimension(L*W*H): | 2640X410X330mm/ 3140X410X330mm/ 3640X410X330mm | Weight: | 140kgs/ 150kgs / 160kgs | Certification: | CE |
Warranty: | 1year | After-sales Service Provided: | No overseas service provided |
Product Description

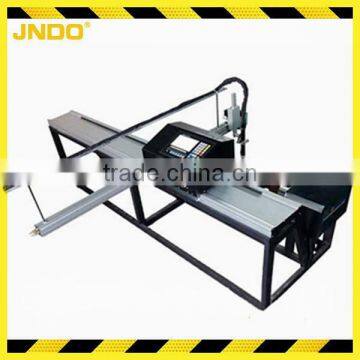

CNC tube plate cutting machine price
CNC Pipe Profile Cutting Machine Product features:
1) Tailored track acquires zero-noise, high-intensity, high-speed and high-precision features.
2) Human-computer interface design makes the machine easy to learn and operate, and have complete functions.
3) Equipped with functions of portable CNC cutting and can cut carbon steel, stainless steel and non-ferrous metal plate.
4) Enable the conversion of the CAD into the program file which can be transmitted to the main machine by USB to cut plate into any shape.
5) With two cutting modes: Flame Cutting & Plasma Cutting.
6) Chinese, English, French, and Portuguese are ready to use.
7) Can automatically memorize and restore when power is off.
8) Plasma THC ( torch height control) device function: By automatically adjust the height of the torches according to the feedback of
the plate height changes, THC can protect the torch form damage and prolong life span of the nozzles.
9) With status indication device.
10) With positioning functions of protection cover, proximity switch and dual-speed.
11) Compatibility of the domestic plasma and foreign-brand plasma.
12) With PWM control mode.
Name | CNC Pipe Profile Cutting Machine | ||
Model | JNDO-1030P | ||
Input Power | Single Phase AC 220V | ||
Approximately 600W | |||
Cutting Modes | Plasma Cutting (Working with plasma generator) and Flame Cutting replacement used | ||
Transmission Style | Rack And Gear | ||
Motor Style | Step Motors Single Drive | ||
Track Length | 3500mm | ||
Track length (effective cutting length Y axis) can be customized for extending cutting length | |||
Pipe Diameter | Φ60~Φ260 mm | ||
Pipe Rotate Speed | 2000mm/min | ||
Cutting Speed | 60-2000mm/min | ||
Ovality Of Pipe | ≤2% | ||
Max. Weight Of Pipe | ≤200 kg | ||
Size Of Chuck | φ250mm | ||
Numbers Of Pipe Supporter | 2 pieces | ||
Auto ControledAxis | 2 axis | ||
Torch Lifting Distance (Z) | ≤160mm | ||
Working Precision | ± 0.2 mm / meter | ||
Flame (Gas) Cutting Thickness | Piercing Capacity: 5 - 80 mm Edge Start: 5 - 120mm | ||
Plasma Cutting Thickness | Depends on the cutting capacity of the Plasma Generator | ||
Flame Auto Igniter | Optional | ||
Gas Pressure | Acetylene Gas or Propane Gas Max 0.1Mpa | ||
Oxygen Pressure | Oxygen Gas Max 0.7Mpa | ||
Cutting Table | Seperated with main machine.Cutting table will be optional supplied. | ||
Please contact us if you want to customize a machine for special pipe size. |
We can provide not only amazing products,but also special ones designed at requests. We'll do our best to meet the need of customers.
