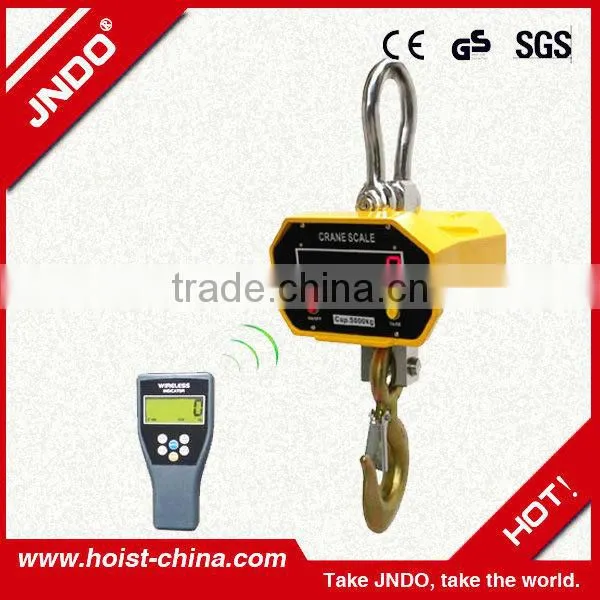

OCS-SL Digital Wireless Crane Scale Sensor

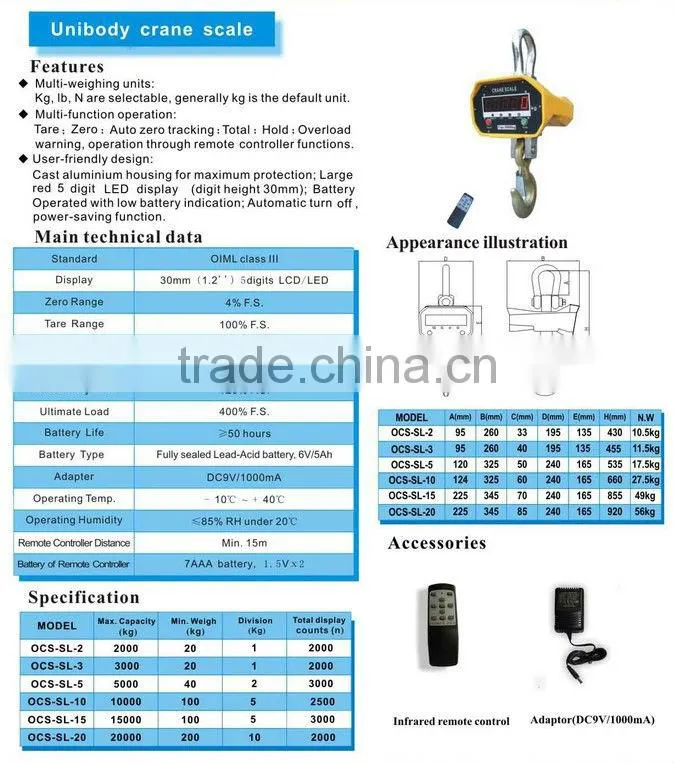

Specifications

1.electric hoist scale
2.Capacity:2ton to 50 ton
3.Unit:kg,lb
4.Certificate: CE;ISO9001
5.Warranty: 1 year

OCS-SL Digital Wireless Crane Scale Sensor





Features:

1.30MM(1.2'')LED display with readablity

2.High quality square die casting aluminum,sturdy and durable

3.With storing function for the present, it is convenient to record weight

4.Automatic dormancy/shutdown saving energy design

5.Weight accumulation and demanding function

6.Handheld remote control with operating easily and convenience

7.With adjusting acceleation factor of gravity, suitable for all over the world

8.Display adjsting of speed and shakeproof rank, with small error and calibration by hand

9.Independent battery box design, it is easy to replace battery







Portable size, RS232 port ,USB port, bi-directional control fuction with printer moderate price.



1)The latest design,Compatible with the concept of portable ,print and easy to operate.



(size:220*128*90mm).



2) ARM-based 32-bit MCU,combines high performance,real-time capabilities, and low-power, low-voltage operation.



3)5 digits LCD display with backlight,digit height:25mm,there are many signal on LCD display( battery power,TARE,ZERO,PEAK,Stable) .



4) It can print data,time,Serial number, commodity number,net weight and total weight.



5) It can input 16 digits head information(company name).



6) It can store up to 2000 weighing records.



7)It can be statistics by Serial number or commodity number,also can statistics by data.statistical results can print weighing number and total weight.



8) Both RS232 serial port and USB port,solve most laptopswithoutserial portproblem

9) with the Everight company’s PC host computer software,not only display weigh   value and stable information on the PC ,can also enter company’s name,complete storage ,print query and other function .



10)High performance,3500mAh SC type industrial NIMH batteries,repeatedly chargingtimes can reach 1000times one time charge can sustainable work more than 50 hours.



11)Standard 433MHz wireless module,long distance,Anti Interference Ability.(868MHz,2.4Ghz wireless module optional ).



12)Shoulder bag style leather case,easy to carry, good protection.





Enclosure:
NEMA 12/IP54 powder coated Foundry Cast Aluminum
Multi-weighing units:
Kg, lb are selectable, kg are default unit.
Multi-function operation:
Tare, Zero, Auto zero tracking, Total, Hold, Overload warning and record, operated through infrared remote controller.
User-friendly design:
Large red 5 digit LED display (digit height



















 Super Abilities:



By adopting carefully selected components and perfect and perfect manufacturing technology, we can show the outstanding product quality to customers so that users can operate our products easier, by using brand new environment-friendly peotection paint and humanization design,it takes you perfect security in different work conditions.



 Outstanding Service:



We can provide not only amazing products,but also special ones designed at requests. We'll do our best to meet the need of customers.
