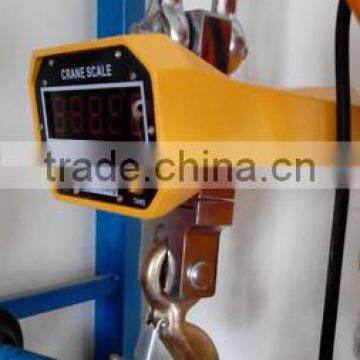

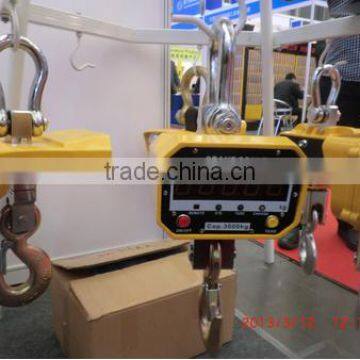

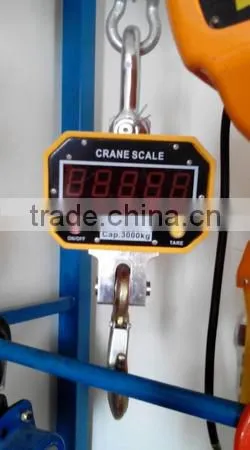

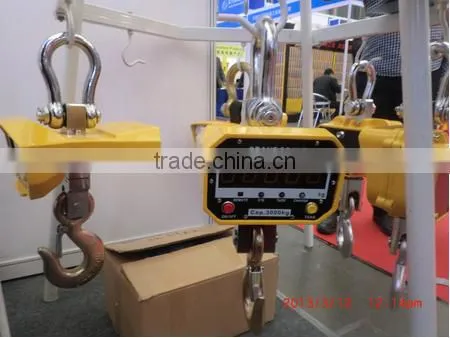

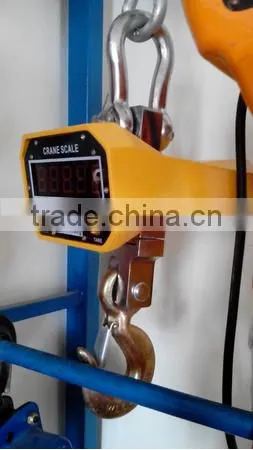

5 ton digital ocs scale with 360 rotating hook
- 1000 Piece / Pieces per Month
- QingDAO
- T/T Credit Card
Product Details
Place of Origin: | Shandong, China | Brand Name: | JNDO | Model Number: | OCS |
Type: | Crane Scale | Power Supply: | Rechargeable Battery | Display Type: | LED LCD |
Rated Load: | 1000kg-30000kg | Accuracy: | 0.1kg |
Product Description
5 ton digital ocs scale with 360 rotating hook
Main feature
- 30mm high LEDdisplay
- Auto shut off function
- Weight accumulation function
- Gross/Net weight display convertible

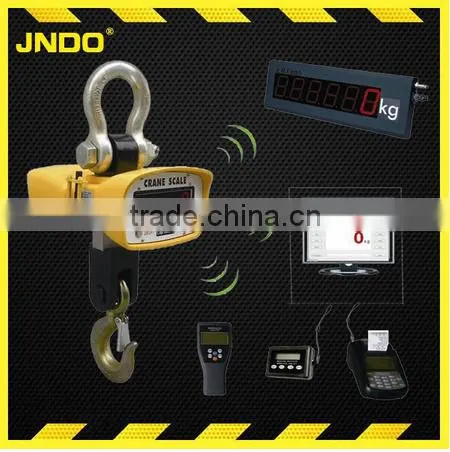

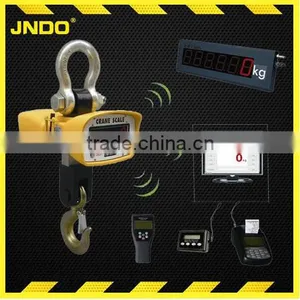

- Remote control calibration
- Function key: Tare,zero, automous zero tracking,
- Material: Casting aluminum housing ,solid and durable
- Extra-large hook and shakle,more convenient to weigh
- Build-in 6v/4.5Ah rechargeable battery,standby mode for 200 h
- Anti-errosion and anti-rust
- Calibration by any weights
- Galvanized hook, anti-errosion and rust resistance MAIN TACHNICAL DATA:
Standard
According to OIML class III
Display
30mm (1.2’’) 5digits LCD/LED
Zero Range
4% F.S.
Tare Range
100% F.S.
Stable Time
≤10seconds
Overload Indication
100% F.S. + 9e
Max. Safety Load
125% F.S.
Ultimate Load
400% F.S.
Battery Life
≥50 hours
Battery Type
Fully sealed Lead-Acid battery, 6V/4.5Ah
Adapter
DC9V/1000mA
Operating Humidity
≤85% RH under 20°C
Remote Controller Distance
Min. 15m
Battery of Remote Controller
AAA battery, 1.5V×2
Parameters of Crane Scale:
MODEL
Max. capacity(kg)
Min. weigh(kg)
Division(kg)
Total dispay counts(n)
OCS-SL-2
2000
20
1
2000
OCS-SL-3
3000
20
1
3000
OCS-SL-5
5000
40
2
2500
OCS-SL-10
10000
100
5
3000
OCS-SL-15
15000
200
5
3000
OCS-SL-20
20000
200
10
2000
Illustration of Crane Scale:
MODEL
A(mm)
B(mm)
C(mm)
D(mm)
E(mm)
H(mm)
N.W.(kg)
OCS-SL-2
95
260
33
195
135
430
10.5
OCS-SL-3
95
260
40
195
135
455
11.5
OCS-SL-5
120
325
50
240
165
535
17.5
OCS-SL-10
124
325
60
240
165
660
27.5
OCS-SL-15
225
345
70
240
165
855
49
OCS-SL-20
225
345
85
240
165
920
56
* Factory appearance

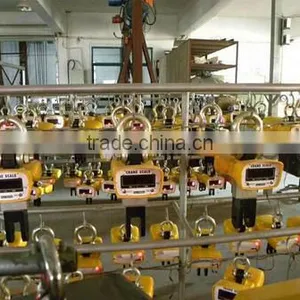

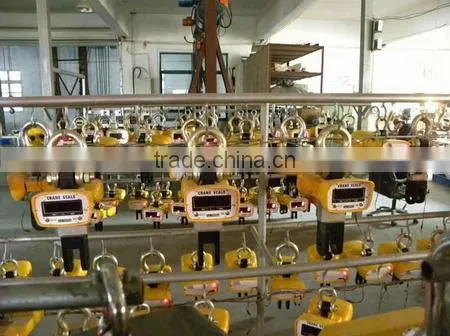

*Production workshop
