Specifications
Vacuum Tungsten and Molybdenum sintering furnace High sintering temperature Vacuum sintering furnace W and Mo sintering
Vacuum Tungsten and Molybdenum sintering furnace,Carbide Tungsten sintering furnace, NdFeB sintering furnace
1. Main application
It is suitable for sintering copper tungsten alloys, aluminum Ni-Co permanent magnet, carbon fiber graphitization,carbon composites, silicon carbide products, tungsten molybdenum and other alloy material in vacuum or atmosphere .Also it can be used for other metal materials heating treatment and deposition.
2.Features
The system use reasonable vacuum unit, it is suitable for vacuum sintering.
Intelligent temperature controller, configuration can be installed freely 148 sections. And the equipment has high precision temperature control heating curves, temperature can reach automaticly according to procedures
The equipment use high efficiency power and induction coils, with high heating speed and high temperature.
Furnace atmosphere is optional and uniformity.The furnace can be filled with hydrogen, nitrogen and argon, etc
We can add unglued devices according to the craft.
3.Equipment specifications
Model | Power (KW) | Heating area size Diameter*height (mm) | Temperature (°C) | Limit vacuum (pa) | Pressure rise rate (Pa/min) | Frequency (KHZ) |
SLT50 | 60 | 150×200 | 2500 | 0.0047 | <0.15 | 8 |
SLT100 | 100 | 250×400 | 2500 | 0.0047 | <0.15 | 6 |
SLT160 | 160 | 360×750 | 2500 | 0.0047 | <0.15 | 4 |
SLT200 | 200 | 450×900 | 2500 | 0.0047 | <0.15 | 4 |
SLT300 | 300 | 600×1200 | 2500 | 0.04 | <0.15 | 4 |
SLT400 | 400 | 680×1200 | 2300 | 0.04 | <0.15 | 2.5 |
SLT500 | 500 | 800×1500 | 2300 | 5 | <0.15 | 2.5 |
SLT600 | 600 | 600×2500 | 2300 | 5 | <0.15 | 2.5 |
SLT630 | 600 | 850×2600 | 2300 | 5 | <0.15 | 2.5 |
Other specification can be made according to the requirement
Power supply cabinet

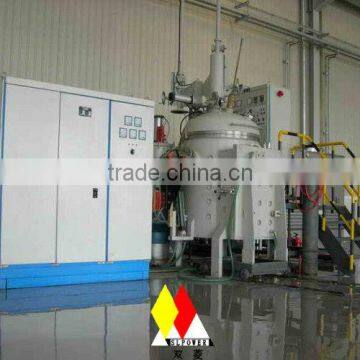

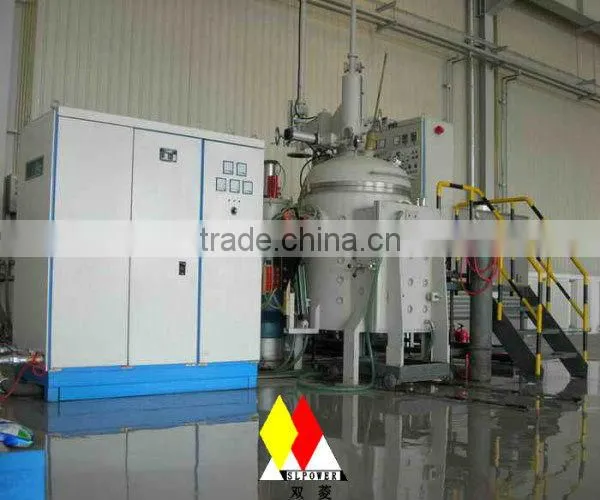

Vacuum sintering furnace system
Our Factory is the best producer for the sintering furnace you need.
