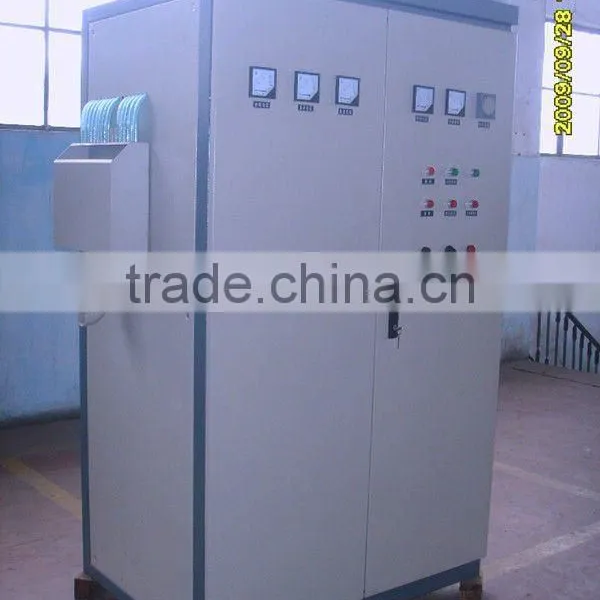

Middle frequency induction power supply
Advanced German technology, digital control, fiber signals.
Double circuit resonance method: series and parallel resonant, adapt to all kinds of heating process.
High efficiency,Transistors power efficiency may reach above 95%, energy-saving 45%, than tubes power than SCR intermediate frequency energy-saving 15% lower cost.
Frequency range is wide,Power can be in any medium frequency and super audio frequency between job, do not need to adjust circuit; Can satisfy various process requirements.
Load matching is simple,Setting frequency automatic scanning system, and load matching is simple.
High start success rate,It can start frequently, safe and reliable, start-up success rate as high as 100%.
Complete safeguarding system,With water temperature, flow, current minimum and maximum values such as protection, work process adopting PLC monitoring
|
Power Model |
Input (V) |
Power (KW) |
Frequency (KHZ) |
Cool-Water (T/h) |
Out-Dimension (mm) |
IGPS60 |
380 |
60 |
1-200 |
1.8 |
A |
IGPS100 |
380 |
100 |
1-200 |
2.5 |
A |
IGPS160 |
380 |
160 |
1-200 |
3.0 |
B |
IGPS250 |
380 |
250 |
1-100 |
6.0 |
B |
IGPS300 |
380 |
300 |
1-100 |
8.0 |
B |
IGPS400 |
520 |
520 |
1-50 |
8.0 |
C |
IGPS500 |
520 |
520 |
1-50 |
1 0 |
C |
IGPS600 |
600 |
600 |
1-10 |
1 2 |
D |
IGPS800 |
600 |
600 |
1-10 |
1 5 |
D |
Other specification can be made according to the requirement
A-750×800×1980 (L×W×H)
B-1400×800×1980 (L×W×H)
C-1800×800×1980 (L×W×H)
D-2200×800×2100 (L×W×H)
