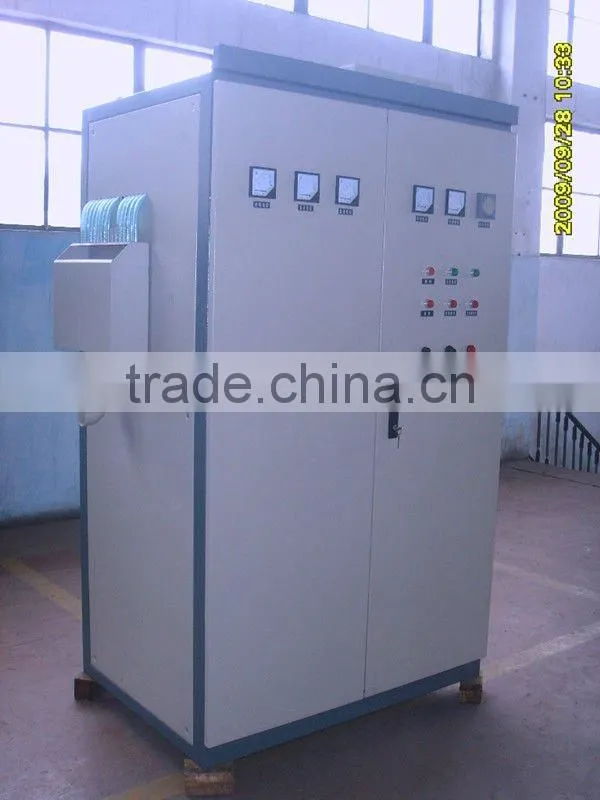

Help CenterMedium Frequency / IF Power Supply for Heating and Melting Furnace
Related Products
-
High Efficiency Industrial Power Supply(60KW-6500KW)US$ 1,000 - 20,000MOQ: 1 Set -
KGPS and IGPS Industrial Power Supply for Heating and Smelting FurnaceUS$ 1,000 - 15,000MOQ: 1 Set
-
60KW to 600KW Super Audio Induction Heating Power SupplyUS$ 1,000 - 15,000MOQ: 1 Set
-
Medium Frequency Power Supply(60KW-6500KW,0.2-200KHZ)US$ 1,000 - 20,000MOQ: 1 Set
-
Medium Frequency Power Supply for Smelting /sintering FurnacesUS$ 1,000 - 20,000MOQ: 1 Set
IF power supply
1.Advanced technology and design;
2.Digital control;
3.Perfect protect system;
4.Full module structure
KGPS thyristor IF power supply
Full digital control: It is provide with high precision and high reliability.
Voltage & Current double-closed-loop control system; It can ensure the system operated stably.
Impeccable protection system; It provide the protection of over-voltage, over-current, phase loss, shortage of hydraulic press, water over- temperature and so on, which can ensure the component not be damaged when the equipment is going wrong.
High power factor operating characteristics; It makes the operating efficiency and power factor of the set of the equipment reach the maximum value.
Perfect external control interface; It realized the closed-loop control of external temperature convenient.
Power supply starting performance being 100%; It can resolve the problem thoroughly of starting failure.
Full-module structure is adapted to minimized volume of the device and improves its reliability.
Excellent characteristics of IGBT can make the equipment operated in the frequency scope of 0.5 kHz-200 kHz. It can utter expand its operation scope.
Specifications
|
Power Model |
Input (V) |
Power (KW) |
Frequency (KHZ) |
Cool Water (T/h) |
Water (Mpa) |
Out-Dimension (mm) |
(KG) |
KGPS60 |
|
60 |
1-10 |
2.5 |
0.25 |
A |
400 |
KGPS100 |
|
100 |
1-10 |
3 |
0.25 |
A |
480 |
KGPS160 |
|
160 |
1-8 |
5 |
0.3 |
B |
600 |
KGPS250 |
|
250 |
1-8 |
5 |
0.3 |
B |
700 |
KGPS400 |
|
400 |
1-8 |
6 |
0.4 |
C |
850 |
KGPS500 |
|
500 |
1-6 |
6 |
0.4 |
C |
1000 |
KGPS750 |
|
750 |
1-6 |
8 |
0.4 |
C |
1250 |
KGPS1000 |
|
1000 |
1-4 |
10 |
0.4 |
D |
1250 |
KGPS1500 |
|
1500 |
1-4 |
12 |
0.4 |
E |
1750 |
KGPS2000 |
|
2000 |
1-2.5 |
18 |
0.4 |
E |
2000 |
KGPS2500 |
|
2500 |
0.5-2.5 |
20 |
0.4 |
E |
2500 |
KGPS3200 |
|
3200 |
0.5-1 |
35 |
0.4 |
E |
2800 |
KGPS6500 |
|
6500 |
0.4-0.5 |
50 |
0.4 |
F |
3500 |
Other specification can be made according to the requirement
A-750×800×1980 (L×W×H)
B-1400×800×1980 (L×W×H)
C-1800×800×1980 (L×W×H)
