Specifications
Vacuum experiment furnace1.high temperature2800C
2.Sintering/smelting experiment furnace
3.use for laboratory
Vacuum experiment furnace for laboratory
1.high temperature2800C
2.Sintering/smelting experiment furnace
3.use for laboratory

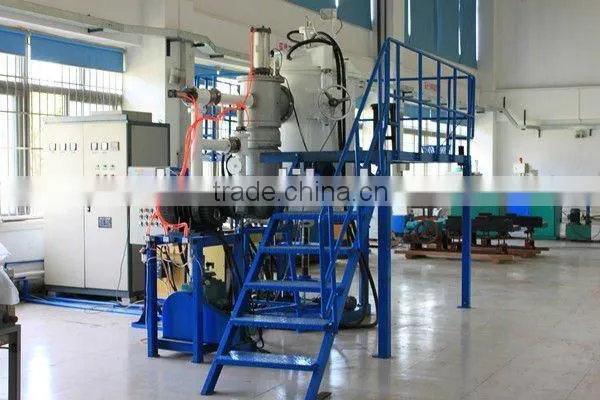

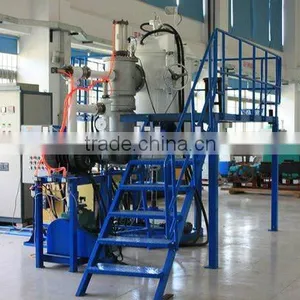

Laboratory Vacuum furnace /Vacuum experiment furnace
1.Application
It is mainly used for sintering experiment and smelting experiment for various metal, nonmetal materials in high temperature and super high temperature.
2. Function
It can do the sintering and smelting experiment in super high temperature ,the highest temperature can reach 2600°C.
The temperature can be adjustable, and the temperature can remains in a period in a constant state.
3.Specifications
(1)Work temperature 1600 -2200°C,the highest temperature can reach 2800°C
(2)temperature uniformity<20 °C (2200°C).
(3)limit vacuum according to the technical requirement.
(4)Vacuum system use high vacuum system, ROM pump units, rotary vane pumps ,vacuum measuring device and manual vacuum valves. The highest vacuum can reach 1 * 10-3Pa.
pressure increase rate, 6Pa/h.
(5)Workspace size Dia100mm -Dia600mm x H450mm (according to customer’s requirements).
