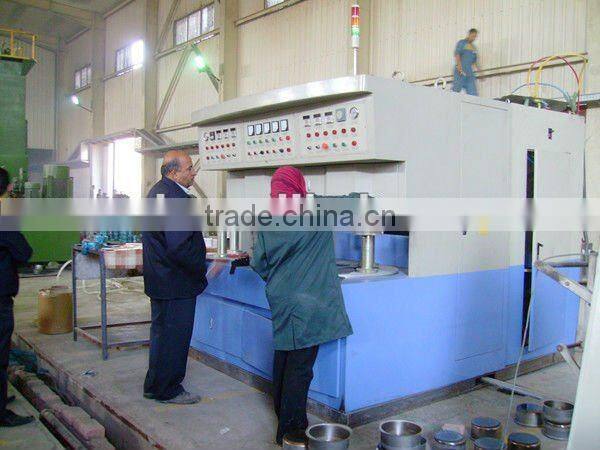

Made in China pan bottom brazing equipment 3 layers
Application

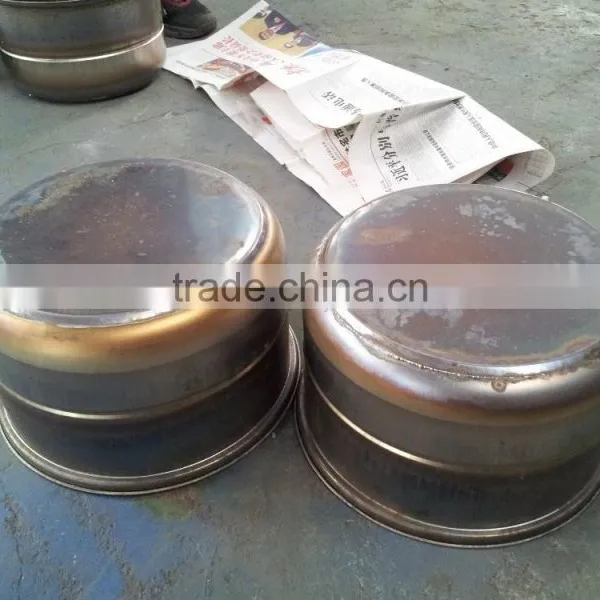

Various kinds of stainless steel pot, pot, kettle, the composite bottom welding such as tableware, also can other plane workpiece heating occasion.
Features
Vacuum tubes GGP inverter power, electrical stable performance, high efficiency
Use local induction heating welding, polishing less workload
Sensors center and edge temperature can be adjusted, heated evenly
Overall electromechanical integration design, installation is very simple
Setting heating, heat preservation, pressure-keeping cooldown, user-friendly adjustment parameters
Welding stress can automatically on the set pressure range conversion
Seawater treatment system, high-performance digital flow monitoring
Adopting PLC automatic control and protection system.
Main technique parameters
Model | Max. Diameter of welding(mm) | Max. Height of pot (mm) | Rate heating power (kw) | Size(L×W×H)(mm) | Weight (KG) |
FHGQ300 | 300 | 350 | 60 | 2370×2600×2000 | 3500 |
FHGQ400 | 400 | 450 | 100 | 2440×2600×2000 | 3800 |
FHGQ500 | 500 | 600 | 200 | 3200×2800×2200 | 4500 |
Other specification can be made according to the requirement
Composite pan bottom heating equipment
Application

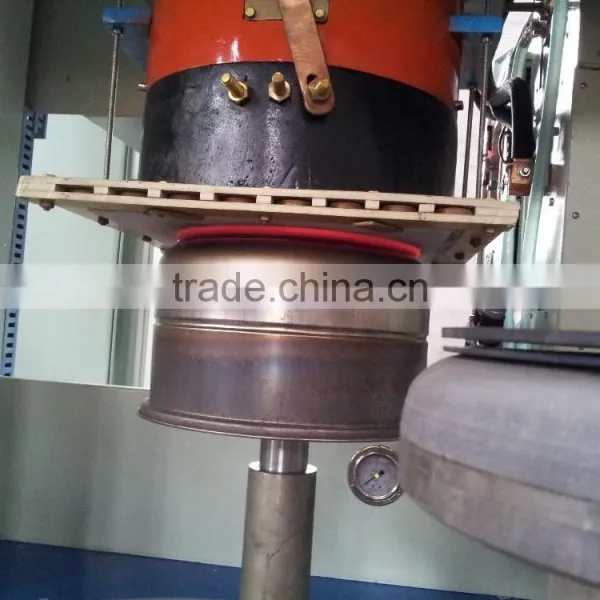

It is used to heating composite metal pan botton before welding.
Features
1. High efficiency.It can heating 3-5 layer compound metal pans each time.
2. 5-10 pieces/minute with uniformity heating temperature. It can heating bronze bottom, stainless steel iron bottom to forging temperature fastly, no oxidation and not edge, no bubbles.
3.Both CPU and PLC control water, electricity, gas , and is equipped with sound and light alarm and fault self-diagnosis function.
4.Local induction heating, greatly reduce the polishing workload, you donot need preheated.
5.Electromechanical integration design, small size, simple installation.
6.Adopts pure water circulation processing system, digital flow monitoring system and PLC automatic control system, the CPU automatically display flow and monitoring system
7.You can add touch screen, man-machine interface system.
Complete sets of rotor end ring high and intermediate frequency inductive brazing equipment
In large ac motor rotor manufacturing, rectangular conducting bar in the rotor cage joints rotate, then the intermediate frequency induction brazing method will be conducting bar ends with pool groove end respectively welded together, using ring advanced manufacturing technology, overcome traditional mouse cage rotor by centrifugal force, and the electromagnetic effect, cage bar fracturing shortcomings, including rectangular conducting bar and pool groove end ring medium frequency induction brazing is the key technology in the process, we passed through absorption, the digestion, innovation of advanced foreign technology and create a characteristic of welding equipment factory.
The equipment adopts whole heating schemes, one-time realize welding and annealing process in whole lead, the welding process using infrared measuring temperature control temperature, temperature uniformity control technology in + 5 °C scope; The speed of temperature rise, welding parameters such as temperature, holding time by procedures according to craft a given strict execution.
