Induction brazing equipment/machine
Induction welding equipment/machine
Induction soldering brazing/welding machine
Rotor end ring induction brazing equipment
In large AC motor rotor manufacturing,insert rectangular conducting bar in the rotor joints, then weld conducting bar both ends with rotor joints seperately by intermediate frequency induction brazing machine.The advanced manufacturing technology overcome traditional mouse cage rotor by centrifugal force , electromagnetic effect, cage bar fracturing shortcomings.Rectangular conducting bar and pool groove end ring medium frequency induction brazing is the key technology in the process, we absorb and innovation of advanced foreign technology and create a characteristic of welding equipment in our factory.
The equipment adopts whole heating , one-time realize welding and annealing process in whole process, the welding process using infrared measuring temperature control temperature, temperature uniformity in the range of plus and minus5 degrees.The temperature rise speed, welding temperature, holding time is strict with process craft.

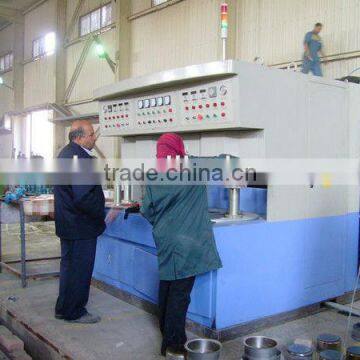

Pan bottom induction heating equipment
Application
It is used to heating composite metal pan bottom before welding.
Features
1. High efficiency.It can heating 3-5 layer compound metal pans each time.
2. 5-10 pieces/minute with uniformity heating temperature. It can heating bronze bottom, stainless steel iron bottom to forging temperature fastly, no oxidation and not edge, no bubbles.
3.Both CPU and PLC control water, electricity, gas , and is equipped with sound and light alarm and fault self-diagnosis function.
4.Local induction heating, greatly reduce the polishing workload, you donot need preheated.
5.Electromechanical integration design, small size, simple installation.
6.Adopts pure water circulation processing system, digital flow monitoring system and PLC automatic control system, the CPU automatically display flow and monitoring system
7.You can add touch screen, man-machine interface system.
Main technical parameters
Model
| Rated power(KW)
| Rated frequency (KHZ)
| Biggest diameter (mm)
| Maximum height ( mm )
| Working | Production efficiency ( P S )
| Heating temperature ( °C )
| Power type
|
FHG-300 | 160 | 20 | DIA300 | 350 | 4Station | 5-10 | 800 | IGPS |
FHG-400 | 200 | 15 | DIA400 | 450 | 4Station | 4 -6 | 800 | IGPS |
Other specification can be made according to requirement
