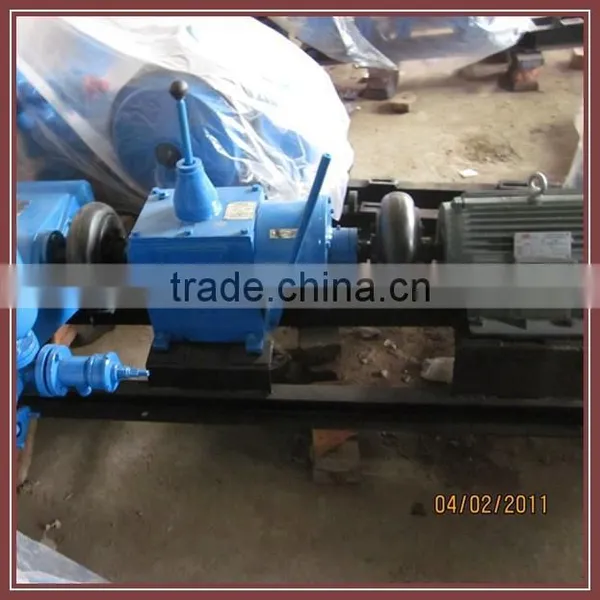

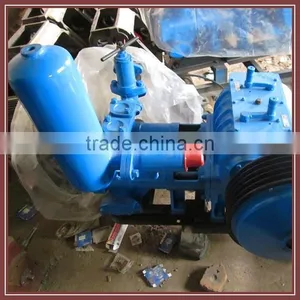

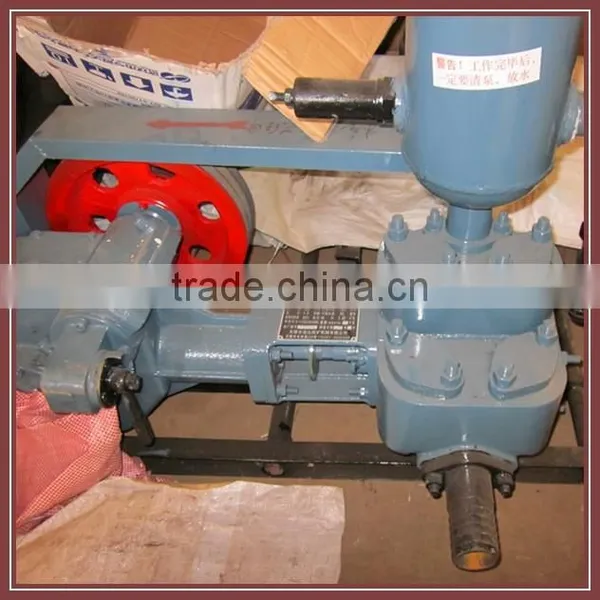

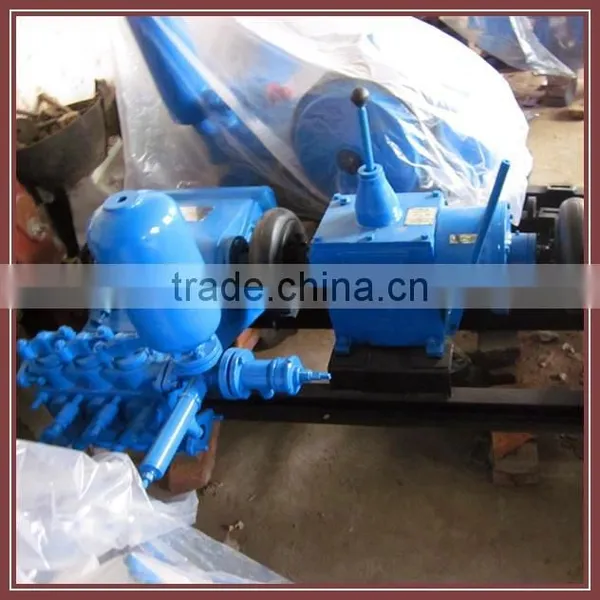

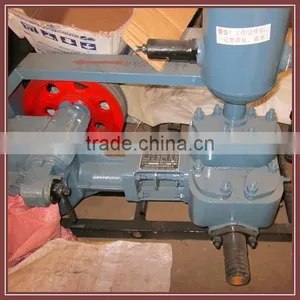

premium quality BW160 mud pump (BW160 BW200 BW250)

BW-160/10 MUD PUMP BW-160/10 Mud Pumps is equipped with drilling rigs to drill holes with mud. During drilling mud pump pumps slurry to the hole to provide coat to the wall, to lubricate the drilling tools and to carry the rock debris up to the ground. It is applied to geological core drilling and prospecting drilling with depth less than 1000 meter. SPECIFICATION MODEL BW-160/10 TYPE Horizontal, Triplex, Single Acting Reciprocating pump STROKE (mm) 70 LINER DIA. (mm) 70 STROKES (min-1) 200 132 83 55 DISPLACEMENT (L/min) 160 107 67 44 PRESSURE (Mpa) 2.5 4 6.5 10 INPUT POWER (kW) 11 SUCTION PIPE DIA. (mm) 51 DISCHARGE PIPE DIA.(mm) 25 DRILLING HOLE DEPTH Diamond Core Drilling <1000m DIMENSION (mm) 1400X850X950 WEIGHT 380KG Drilling rig and mud pump application range: 1.Projects: Construction drilling of the projects e.g. prospection, geotechnical investigation(geological exploring), railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction; 2. Exploration: Coal mining exploration, Ore exploration; 3. Water well : Small hole diameter water well drilling; 4. Pipe-installing : Geothermal pipe-installing for heat pump; 5. Foundation piling: Small-diameter hole foundation piling drilling Name BW-250 Type Horizontal,Three-cylinder single-acting, reciprocal piston pump Stroke 100 mm Liner Dia 80mm 65mm Gears I II III IV I II III IV Pump Speed (times/min) 200 116 72 42 200 116 72 42 Displacement (liter/min) 250 145 90 52 166 96 60 35 Pressure (MPa) 2.5 4.5 6.0 6.0 4.0 6.0 7.0 7.0 Volume fraction 85% Combined efficiency 72% Input power 15 Kw Triangle leather belt pitch dia Type B ×5 Groove 410 mm Input speed 500 r/min Max suction head 2.5 m Suction pipe Dia 76 mm Discharge pipe Dia 51 mm Measurement 1100 × 995 × 650 mm Weight 500 Kg
