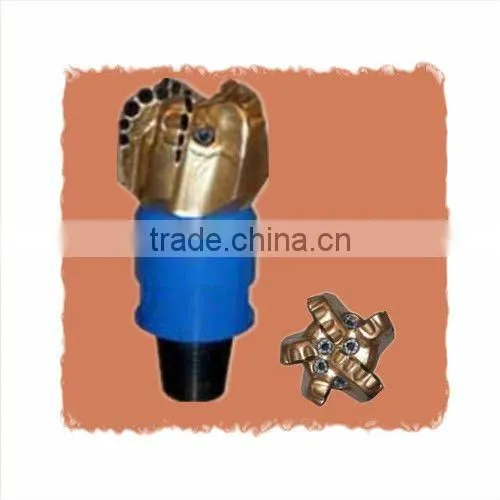

5 Blades Diamond Oil Drilling Bit

5 Blades Diamond Oil Drilling Bit thumbnail-1
5 Blades Diamond Oil Drilling Bit photo-1
US$ 100 - 1,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
ZM
Model Number:
Made-to-order
Contact Supplier Request Quote Chat Now
Henan Zhongmei Drill Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name ZM
Model Number Made-to-order
Type Other, Center Drill Bit, Drill Bit
Material Diamond
Use Other, Well Drilling, Oil Well/Coal Mining

Specifications

1.Oil and gas euquipment parts
2.Oil drilling machine parts
3.Diamond oil drilling bits
4 Oil drilling products
5.Oil tools

PDC Oil Drill Bits For Gas Exploring



Tungsten carbide matrix PDC possesses high wear resistance and impact resistance. Parabolic crown profile and maxises junk slot area can clean bit better, and prolong the bits working life.



Theory:

PDC cutters are sintered with selected diamond powder and tungsten carbide under high temperature and ultra-high pressure, they are widely used in oil/gas drill bits, geological drilling and mining bits, and also can be used in rock cutting tool.



Feature:

1.High wear resistance, impact resistance and thermal stability
2.Stable quality and competitive price
3.Timely deliverypdc diamond bit



Application:

Applying hydraulics balance design, 5 renewal nozzles and reasonable nozzles locating angle can gain ideal fluid field in well bottom,fully clean and cool cutter, and prolong the cutter working life.



Advantage:

Non-symmetry blade arrangement enhances drilling well balance.

Optimization for cutter shape, slant angle, cutter numbers prolong the cutter working life in combination with high quality PDC cutter, and improve ROP and drilling efficiency.

It can be used for on rotary or down hole motor.



Specification:

TYPE SIZE API PIN SIZE WEIGNT(KGS)
INCH MM
8 1/2M1234AL 8 1/2 215.9 4 1/2REG 70
8 1/2M3235AL 8 1/2 215.9 4 1/2REG 70
8 1/2M3235BLF 8 1/2 215.9 4 1/2REG 70
8 1/2M2235L 8 1/2 215.9 4 1/2REG 70
8 1/2M3236AL 8 1/2 215.9 4 1/2REG 70
8 3/4M3235AL 8 3/4 222.3 4 1/2REG 72
9 1/2M3235L 9 1/2 241.3 6 5/8REG 85
9 1/2M3236L 9 1/2 241.3 6 5/8REG 85
12 1/4M3235 12 1/4 311.1 6 5/8REG 105



Drill bits type for reference:

5 blades Diamond oil drilling bit5 blades Diamond oil drilling bit5 blades Diamond oil drilling bit5 blades Diamond oil drilling bit5 blades Diamond oil drilling bit



Note: For more specifications or any questions, please feel free to contact me.
