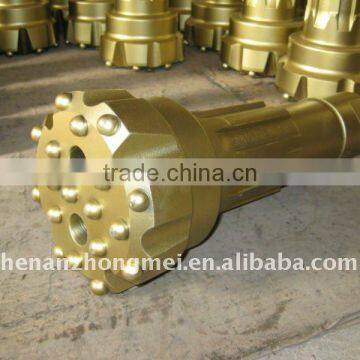

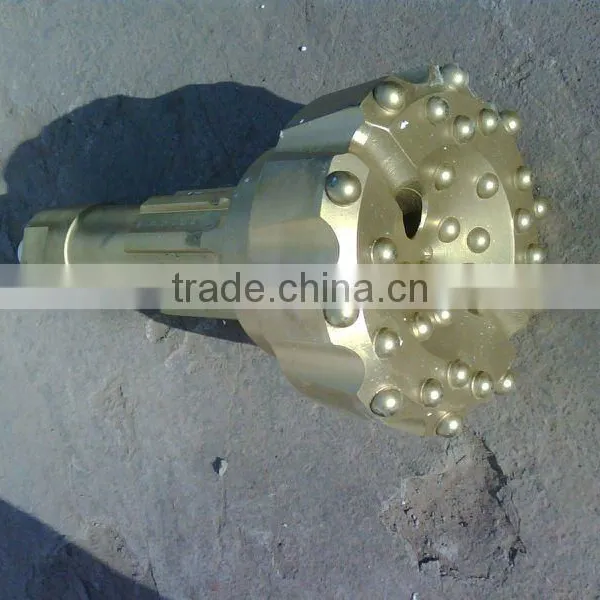

good feedback high/low air pressure DTH hammer button bit

DTH Bit Face Designs

Flat Face Bit: Flat Face (F) design for medium hard to hard formations, good flushing and good penetration rates.

Convex Bit: Convex (V) design with double gauge row for medium to hard and abrasive formations, good flushing and good penetration rates.

Concave Bit: The all-purpose Concave (C), for soft to medium hard formations, straight holes, excellent flushing and fast penetration rates.

Concave/Convex Bit: Concave/Convex Bit(X) the best of both worlds with double gauge row and concave center for medium to hard and abrasive formations, straight holes, excellent flushing and excellent penetration rates.

Cyclops Bit: Cyclops unique single port design maximizes bit strength and minimizes the risk of bit head splitting or chunking caused by operational and manufacturing induced fatigue stress.

Features

In the hole range 100-254 mm (4"-10"), DTH drilling is the dominant drilling method today (especially when the hole depth is greater than 20 meters). The main features of DTH drilling in this hole range are:
• Excellent hole straightness within 1.5% deviation without guiding equipment.
• Good hole cleaning with plenty of air for the hole cleaning from the hammer.
• Good hole quality with smooth and even hole walls for easy charging of explosives.
• Deep hole drilling capacity with constant penetration and no energy losses in joints.
• Efficient energy transmission.
• The disturbance to the ground is kept minimum, and for drilling rock, the penetration rate is outstandingly high.
• More cost-effective than the conventional rotary drilling.

Specification

DTH hammer is one advanced drilling tool in the world, due to its economy and powerful drilling capacity, more and more people in the world are using DTH drilling products. We have both low pressure and high pressure hammers, usually high pressure hammers are the most popular, from 3 inch to 8 inches hammers, while according to customers preference.

Related Products

The DTH Hammer uses a uniquely engineered air cycle to improve hammer performance and durability, even with water injection. The valve-less design features specially configured porting to allow efficient water injection through the hammer cycle. That means a more durable hammer that drills fast wet or dry.
