PDC Matrix Drill Bit

PDC Matrix Drill Bit thumbnail-1
PDC Matrix Drill Bit thumbnail-2
PDC Matrix Drill Bit thumbnail-3
PDC Matrix Drill Bit thumbnail-4

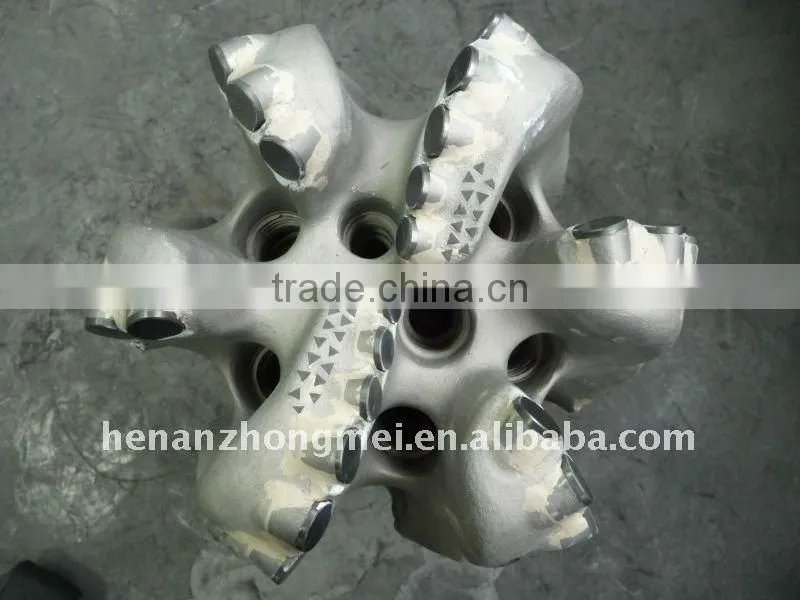

PDC Matrix Drill Bit photo-1

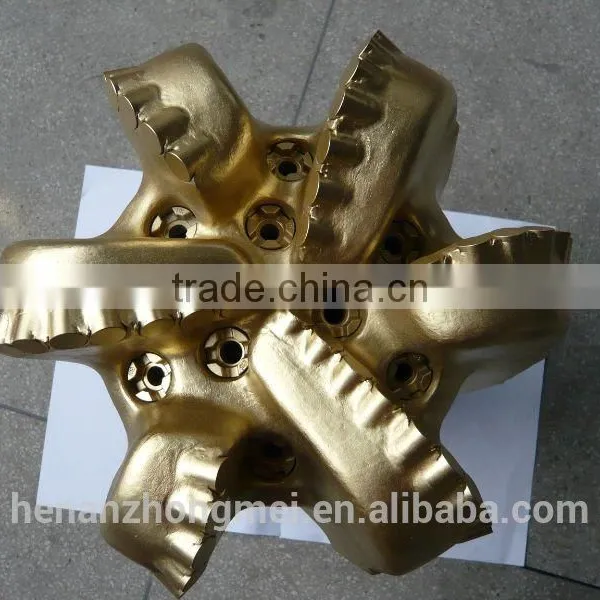

PDC Matrix Drill Bit photo-2

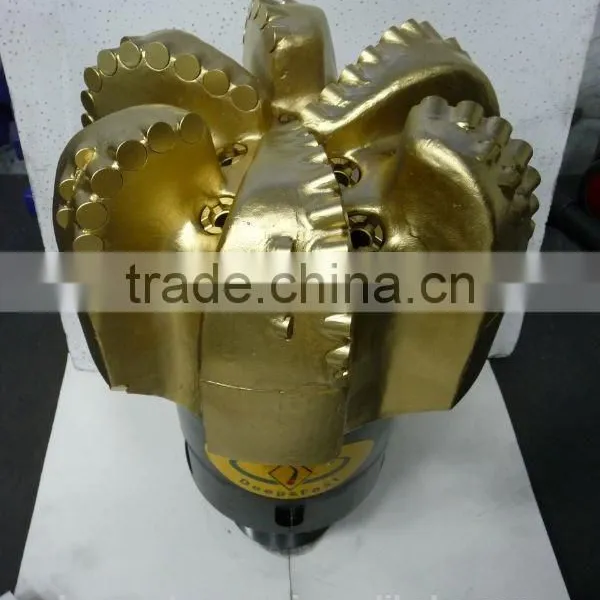

PDC Matrix Drill Bit photo-3
PDC Matrix Drill Bit photo-4
US$ 150 - 10,000 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
ZM
Type:
Other, DrillBit
Contact Supplier Request Quote Chat Now
Henan Zhongmei Drill Tool Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai etc.
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name ZM
Type Other, DrillBit
Material Other, Tungsten Carbide, Cast Steel,PDC
Use Other, Oil Drilling

Introduction

PDC bit uses PDC as main cutting components, with the excellent wear-ability and impact toughness of the PDC. It has a useful life, high-efficiency, and good performance cost ratio.

Henan zhongmei can supply all kinds of PDC Coring and non-coring bits, PDC sintering matrix bits and PDC anchoring bits. PDC bit can be widely used in the fields of geological exploration, coal mining, water conservancy and hydropower, construction of road and railway.

We also can design PDC bits according to customer requirements, such as different geological condition, special strata and so on.



Theory

PDC(polycrystalline diamond compact) drill bit is a new product after the hot-pressed and electroplated drill bit recent years.With special hith-frequency weldin techniques.PDC of high wear resistant si welded to the body as cutting edges.PDC bit is mainly used for geological prospecting,coal exploration,water conservancy and power engineering,etc.





Features

1.       It has a super long life. The grinding/consumption ratio of PDC is 20-40 times that of tungsten carbide bit and 10 times that of diamond bit.

2.       It had high drilling speed.

3.       It can be operated with low pressure and low speed.

4.       It has a good gage protection.

5.       It can be used widely, more suitable for drilling in the stratum with formation<7

6.       It has a low cost



Applicaton

PDC bit is mainly used for drilling soft and medium formation, it work under low drilling pressure,midium-low speed,big drainage. PDC Non-coring Bit is a kind of full face bit, it is mainly used for coal mining, water canservancy and hydropower, road construction, railway, bridge and building.



Specification



DIAMETER  CONNECTION WEIGHT
INCH MM LBS KG
5 7/8’’ 149.2 3 1/2’’API REG.PIN 29 13
6’’ 152.4 3 1/2’’API REG.PIN 32 14
6 1/8’’ 155.6 3 1/2’’API REG.PIN 33 14.5
6 1/4’’ 158.8 3 1/2’’API REG.PIN 40 18
6 1/2’’ 165.1 3 1/2’’API REG.PIN 46 21
6 3/4’’ 171.5 3 1/2’’API REG.PIN 49 22
7 7/8’’ 200 4 1/2’’API REG.PIN 76 34
8 1/2’’ 216 4 1/2’’API REG.PIN 90 41
8 3/4’’ 222.3 4 1/2’’API REG.PIN 92 42
9 1/2’’-9 7/8’’ 241.3-250.8 6 1/2’’API REG.PIN 141 65
10 5/8’’ 270 6 1/2’’API REG.PIN 170 77
11’’ 279.4 6 1/2’’API REG.PIN 175 80
12 1/4’’ 311.2 6 1/2’’API REG.PIN 220 100
13 1/2’’-13 3/4’’ 342.9-349.3 6 1/2’’API REG.PIN 237 108
14 3/4’’ 374.7 6 5/8’’-7 5/8’’ API REG.PIN 305 138
16’’ 406.4 6 5/8’’-7 5/8’’ API REG.PIN 415 187
17 1/2’’ 444.5 7 5/8’’ API REG.PIN 580 262
22’’ 558.8 7 5/8’’ API REG.PIN 766 347
23’’ 584.2 7 5/8’’ API REG.PIN 820 372
26’’ 660.4 7 5/8’’ API REG.PIN 1335 605
28’’ 711.2 8 5/8’’ API REG.PIN 1600 720





Note: We are also can design and manufacture of various non-standard drill tools.
