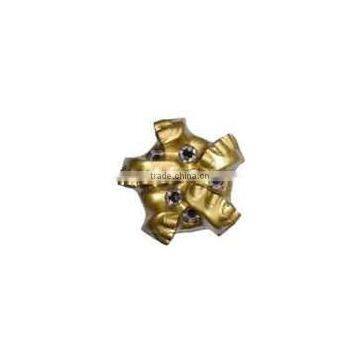

PDC Oil Drill Bits For Gas Exploring
Tungsten carbide matrix PDC possesses high wear resistance and impact resistance. Parabolic crown profile and maxises junk slot area can clean bit better, and prolong the bits working life.
Theory:
PDC cutters are sintered with selected diamond powder and tungsten carbide under high temperature and ultra-high pressure, they are widely used in oil/gas drill bits, geological drilling and mining bits, and also can be used in rock cutting tool.
Feature:
1.High wear resistance, impact resistance and thermal stability
2.Stable quality and competitive price
3.Timely deliverypdc diamond bit
Application:
Applying hydraulics balance design, 5 renewal nozzles and reasonable nozzles locating angle can gain ideal fluid field in well bottom,fully clean and cool cutter, and prolong the cutter working life.
Advantage:
Non-symmetry blade arrangement enhances drilling well balance.
Optimization for cutter shape, slant angle, cutter numbers prolong the cutter working life in combination with high quality PDC cutter, and improve ROP and drilling efficiency.
It can be used for on rotary or down hole motor.
Specification:
| TYPE | SIZE | API PIN SIZE | WEIGNT(KGS) | |
| INCH | MM | |||
| 8 1/2M1234AL | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 1/2M3235AL | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 1/2M3235BLF | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 1/2M2235L | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 1/2M3236AL | 8 1/2 | 215.9 | 4 1/2REG | 70 |
| 8 3/4M3235AL | 8 3/4 | 222.3 | 4 1/2REG | 72 |
| 9 1/2M3235L | 9 1/2 | 241.3 | 6 5/8REG | 85 |
| 9 1/2M3236L | 9 1/2 | 241.3 | 6 5/8REG | 85 |
| 12 1/4M3235 | 12 1/4 | 311.1 | 6 5/8REG | 105 |
Drill bits type for reference:
Note: For more specifications or any questions, please feel free to contact me.
