Specifications
PP woven bags pelletizing machineplastic material:PP,HDPE,LDPE,LLDPE,TPV,EVA,ABS and PS,etc.
Material shapes:Film,

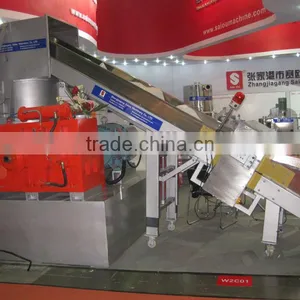

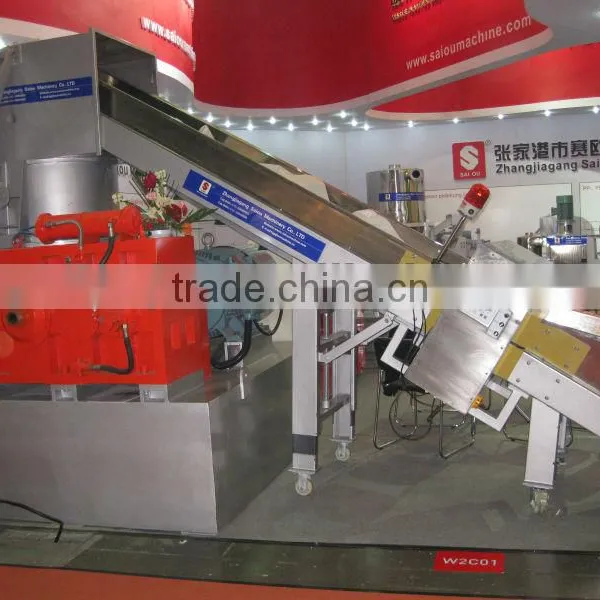

PP woven bags pelletizing machine
A.Production description :
High practicable for kinds of waste plastics recycling like plastic films, sheets and style material. It is adopted PID temperature control, non-stop filter net hydraulic changing for high automation. Particular features have granules from this machine with good plastic performance.
B. Detail of Products:
Model |
Screw diameter(mm) |
L/D |
Capacity(kg/h) |
Main motor power(kw) |
Total power(kw) |
Line length(m) |
PE-100 |
100 |
25:1 |
100 |
90 |
120 |
12 |
PE-200 |
120 |
25:1 |
200 |
110 |
150 |
15 |
PE-300 |
150 |
25:1 |
300 |
160 |
200 |
18 |
C.Process flow:
Film flakes → conveying feeding → Metal detector → Film agglomerating → Degassing single screw extruder → Hydraulic screen extruder → Rub surface granulating machine → Slip trough → Dewatering machine → Librating screener → Blowing system → Storage hopper → Finished product packing
D. Usage:
This water-cooling single screw plastic pellet making machine is one stage plastic regenerative pelletizer, which is suitable for many kinds plastic waste materials recycling and making pellet, such as PP, HDPE, LDPE, LLDPE Film and clean woven/nonwoven bag materials, etc. The film can be pressed in compressor and then be pelleted.
And also has very developed design, makes sure this machine has a long working life and economical efficiency in using.
E. Main Advantage
1. Multifunctions of crushing and granulation. Whole plastic bags can undergo direct granulation without crushing
2. Double-column online screen exchanger with larger filtering area.
3. Water ring granule cutting avoid material staining.
F. Final Products:
G. Certificate:
H. Payment:
1. 30% TT is down payment as deposit, and 70% is paid before shipment.
2.30% TT is down payment as deposit, and 70% by irrevocable L/C at sight.
3. 100% irrevocable L/C at sight.
4. By Escrow from Alibaba.
I. Package:
1. Film package: we used simple package suit for shipping.
2. Wooden package: If you want to wooden package, you should paid extra cost.
J. Factory Show
K. Trade show
L. After sale-service.
- If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. After One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.
- Workers must operate the machines according to the design of the machine. Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers
|
