Specifications
granulator machine 200kg/hr-1000kg/hr1. CE certificate
2. Use force feeding
3. Stable output
granulator machine 200kg/hr-1000kg/hr
It is an idea equipment to pelletize plastic film into granules. Capacity is from 100kg/h to 500kg/h.
This line is of new design, reasonable configuration, steady operation, low noise, low consumption and high output.
Main technical parameters:
Type |
SAIOU120 |
SAIOU140 |
SAIOU160 |
Name |
PE film or woven bags pelltizing machine |
||
Hot plastic material |
PP / HDPE / LDPE / LLDPE / ABS / PS / PA |
||
Max capability |
PP: 350kg/h HDPE: 400 kg/h LDPE:450 kg/h |
PP: 450kg/h HDPE: 500 kg/h LDPE:550 kg/h |
PP: 600kg/h HDPE: 700 kg/h LDPE:750 kg/h |
Total power |
170 KW |
200 KW |
250 KW |
Type |
SAIOU80 |
SAIOU 100 |
SAIOU 110 |
Hot plastic material |
PP / HDPE / LDPE / LLDPE / ABS / PS / PA |
||
Capability |
PP: 120kg/h HDPE: 150 kg/h LDPE:180 kg/h |
PP: 200kg/h HDPE: 240 kg/h LDPE:260 kg/h |
PP: 250kg/h HDPE: 300 kg/h LDPE: 350 kg/h |
Total power |
65 KW |
90 KW |
140 KW |
Type |
(130x70) |
(110x70) |
Usage |
Film, pressure mouth, nylon recycling |
|
Capability |
HDPE-LDPE: 100-120 kg/h |
HDPE-LDPE: 90-110 kg/h |
Total power |
45 KW |
55 KW |

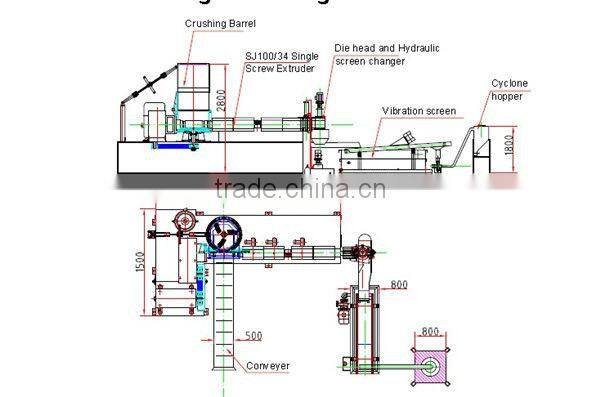

No. |
Item |
1 |
Belt conveyer |
2 |
Crushing barrel |
3 |
Extruder |
4 |
Die head and screen changing device |
5 |
Water ring cutter |
6 |
Vibrating screen |
7 |
Vertical dewatering machine |
8 |
Air drying system |
9 |
Cyclone hopper |
C.Process flow:
D.Usage:
pppe film granulator, granulator, granulating machine, this machine is mainly used to process pp/pe films into pellets
E. Main Advantage
1. High-efficient force-feeder ensures high capacity feeding, low energy consumption
2. Single screw extruder, equipped with specially designed screw & barrel, venting system, has a very good output capacity.
3. Pelletizing style: Water-ring cutting with extrusion mould, even cutting ensures good shape.
F.Final Products:
G.Certificate:
H. Payment: PE film or woven bags pelletizing machine granulator machine 200kg/hr-1000kg/hr
1. 30% TT is down payment as deposit, and 70% is paied before shipment.
2.30% TT is down payment as deposit, and 70% by irrevocable L/C at sight.
3.100% irrevocable L/C at sight.
4.By Escrow from Alibaba.
I.Package:
1.Film package: we used simple package suit for shipping
2.Wooden package: If you want to wooden package, you should paied the extra cost.
J.Factory Show
K Trade show
L. After sale-service PE film or woven bags pelletizing machine granulator machine 200kg/hr-1000kg/hr
- If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.
- Workers must operate the machines according to the design of the machine. Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers.
M. Engineer install picture
