HDPE flake granulator
PP/(HD)PE/ABS/PS Flakes Granulator(Water ring)

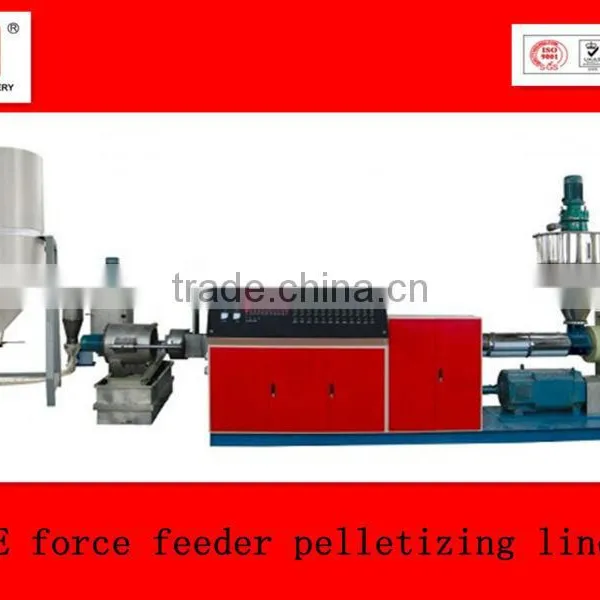

1. Efficient forced feeding ensures high feeding and low energy consumption.
2. With a special design of the barrel, screw, exhaust system and screw, high capacity and quality of the granule could be get.
3. Main technical parameters:
| SCREW DIAMETER(MM) | L/D RATIO | POWER | CAPACITY(PE) |
| 100MM | 32:1 | 110KW | 150-300KG/HOUR |
| 120MM | 34:1 | 130KW | 200-350KG/HOUR |
| 140MM | 36:1 | 160KW | 350-400KG/HOUR |
| 180MM | 36:1 | 180KW | 150-540KG/HOUR |
4.The general process of this whole production line for plastic granulating machine is as following:
1)Putting into the feeder----Extruding ---- water cooling ---- drying----cutting into granulator
By regulating the rotation speed of extruder and altering screw structure it is applicable to manufacture different plastic profile, like PE PP PS ABS PVC and polyolefin Modificationand granulation: Being applicable to the different plastic material co-mixing, modification and reinforcing granulation.

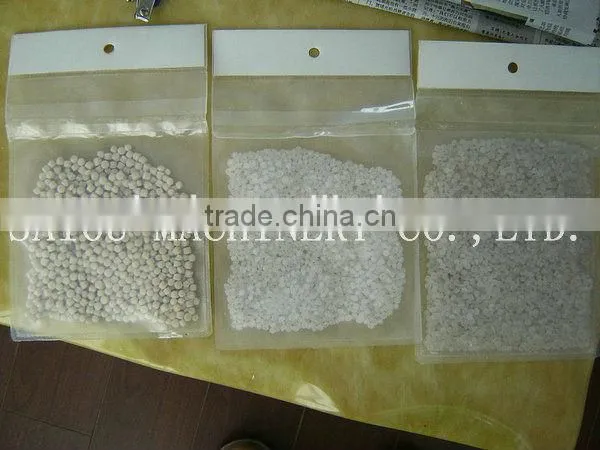

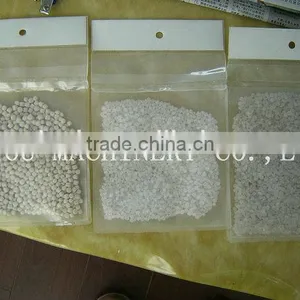

2)It can make granules from pe pp flakes, film or bottles and so on. Our capacity is from 100kg/h to 500kg/h
3)With rotation feeder, the pe pp flakes will get into the screw even and continuously, our motors, tempreture controller and inverters are made by world famous brand, such as Siemense, Omron, RKC, FUJI, and so on. Our screw and barrels are 38CrMoALA, nitrogen treatment. With double screen exchanger, you can exchange the screen without stopping the machines.
4).With more than 10 years experiences in this field, we are so professional and competitive, welcome to visit our factory, we will show you the running machines here.

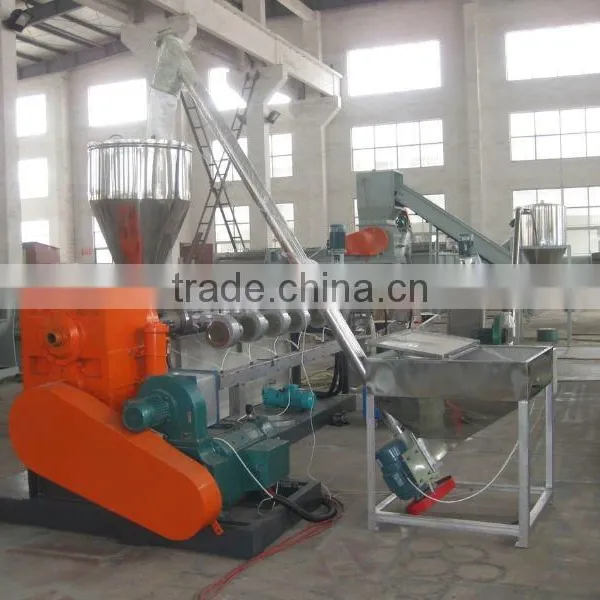

1.Mix HDPE flakes ,and make them into extruder.
2.Single screw of extruder,if you need double stage ,we also can design for you.

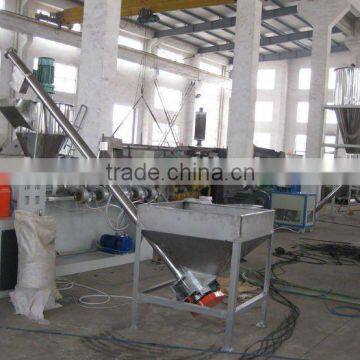

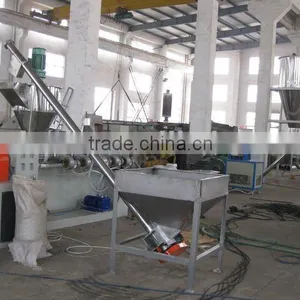

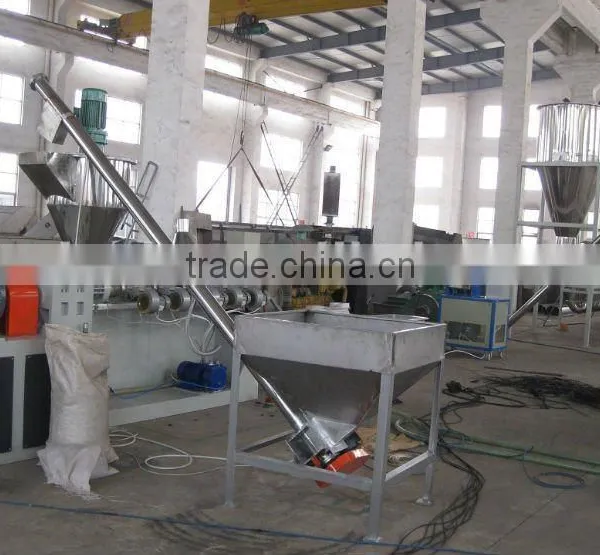

3.We are testing the machines in our factory,discuss the technical of the granulator.
4.Water ring cutting.
5.Vibration Screen
SAIOU did export business since 2006,so we have the certifications which suit for shipping our products: plastic crushing washing drying machine, plastic pelletizing machine, plastic pipes production line ,shredders ,all include our machines.And we also have quality certification.
Our machines export to USA, RUSSIA,BULGARIA,CHILE,MALAYSIA,CAMBODIA,VIETNAM,KOREA,MEXICO,INDIA,BANGLADESH etc, too much places.
- Film package: we used simple package suit for shipping.
- Wooden package: If you want to wooden package, you should paied the extra cost.
Do you know our service?
The machine inspection before delivery in SAIOU MACHINERY When you come to our factory .Check everything is it ok .
Free of charge of some necessary spare part.
One year guaranteeof all the machines running , if any problem ,we will bear. Of course if the machines after one year ,you also can ask for the technical guidance.
1-2 technical engineers will be come to your factory to installation and commissioningthe machines and train your workers if you need.
We accept 30% TT down payment, 70% TT or LC at sight before delivery.
Film packing or plywood packing suit for sea shipping.
Zhangjiagang Saiou Machinery Co., Ltd. is an enterprise specializing in researching and producing plastic machinery.
SAIOU MACHINERY was set up since 2001, with various quality, competitive advantage products, and good after-sale service. we are the market leader in plastic machinery market. Our products are very popular with people at home or abroad, So we have ever been exported to many countries, such as, Canada, Mexico, Chile, Egypt, Slovakia, Dominican Republic, Indonesia, Bulgaria, Saudi Arabia, Libya etc.
Advanced equipment, mature techniques and strict testing system guarantee high quality products. Saiou Machinery trust our principle of “QUALITY IS OUR CULTURE” Saiou would like to cooperate with you for a longer business in near futures..
Welcome to SAIOU MACHINERY! We are always here.
skype: saiouzjg
whatsapp: +86-13962247879
wechart: +86-13962247879
If you want more informations, please contact with us directly.
Our company is near Shanghai ,about 130km. Welcome to come anytime.
We also can do recycling machines, if you need, please contact with us, thanks!
