Specifications
HDPE bottle flakes pelletizing plant.1.Suitable for cleaning and dried bottle flakes .
2.Material:HPE bottle flakes.

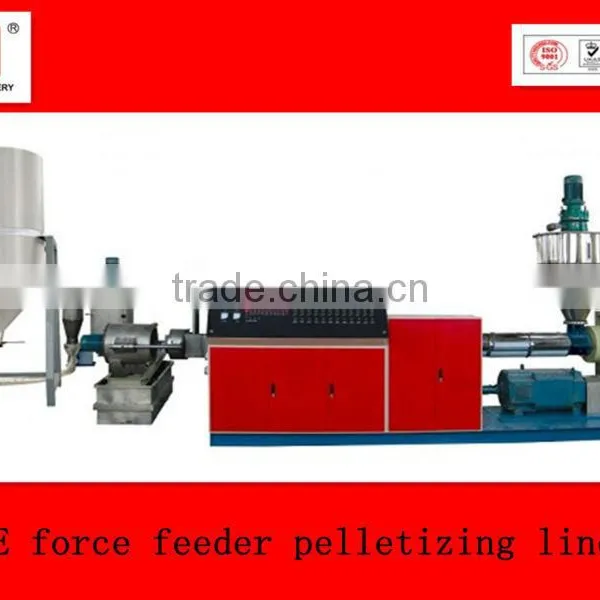

HDPE bottle flakes pelletizing plant
PP/(HD)PE/ABS/PS Flakes Granulator(Water ring)
1. Efficient forced feeding ensures high feeding and low energy consumption.
2. With a special design of the barrel, screw, exhaust system and screw, high capacity and quality of the granule could be get.
3. Main technical parameters:
| SCREW DIAMETER(MM) | L/D RATIO | POWER | CAPACITY(PE) |
| 100MM | 32:1 | 110KW | 150-300KG/HOUR |
| 120MM | 34:1 | 130KW | 200-350KG/HOUR |
| 140MM | 36:1 | 160KW | 350-400KG/HOUR |
| 180MM | 36:1 | 180KW | 150-540KG/HOUR |
4.The general process of this whole production line for plastic granulating machine is as following:
1)Putting into the feeder----Extruding ---- water cooling ---- drying----cutting into granulator
By regulating the rotation speed of extruder and altering screw structure it is applicable to manufacture different plastic profile, like PE PP PS ABS PVC and polyolefin Modificationand granulation: Being applicable to the different plastic material co-mixing, modification and reinforcing granulation.
2)It can make granules from pe pp flakes, film or bottles and so on. Our capacity is from 100kg/h to 500kg/h
3)With rotation feeder, the pe pp flakes will get into the screw even and continuously, our motors, tempreture controller and inverters are made by world famous brand, such as Siemense, Omron, RKC, FUJI, and so on. Our screw and barrels are 38CrMoALA, nitrogen treatment. With double screen exchanger, you can exchange the screen without stopping the machines.
4).With more than 10 years experiences in this field, we are so professional and competitive, welcome to visit our factory, we will show you the running machines here.

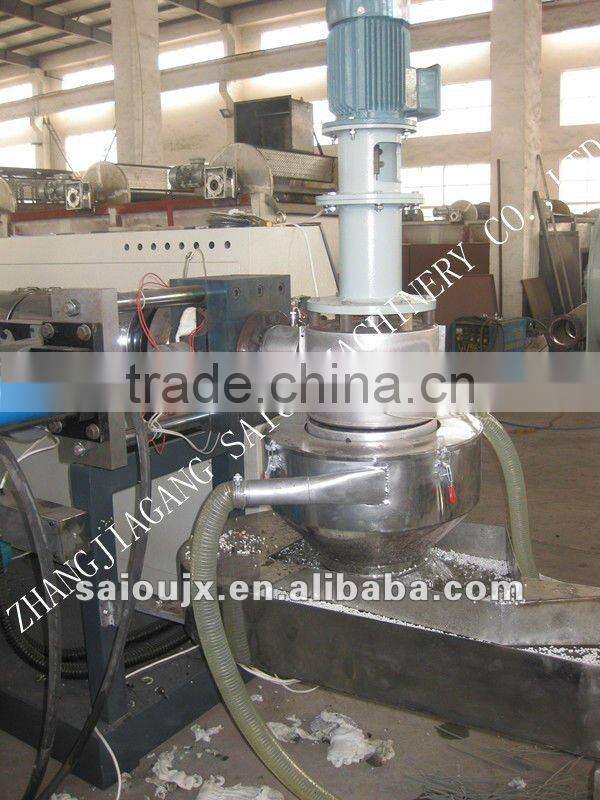

1.Mix HDPE flakes ,and make them into extruder.
2.Single screw of extruder,if you need double stage ,we also can design for you.

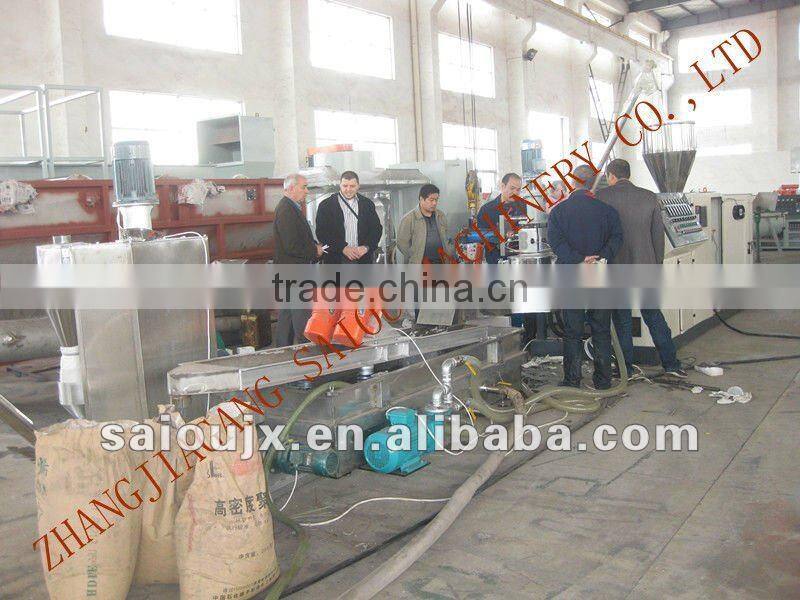

3.We are testing the machines in our factory,discuss the technical of the granulator.

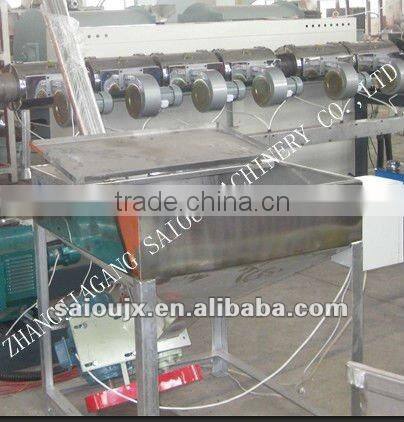

4.Water ring cutting.

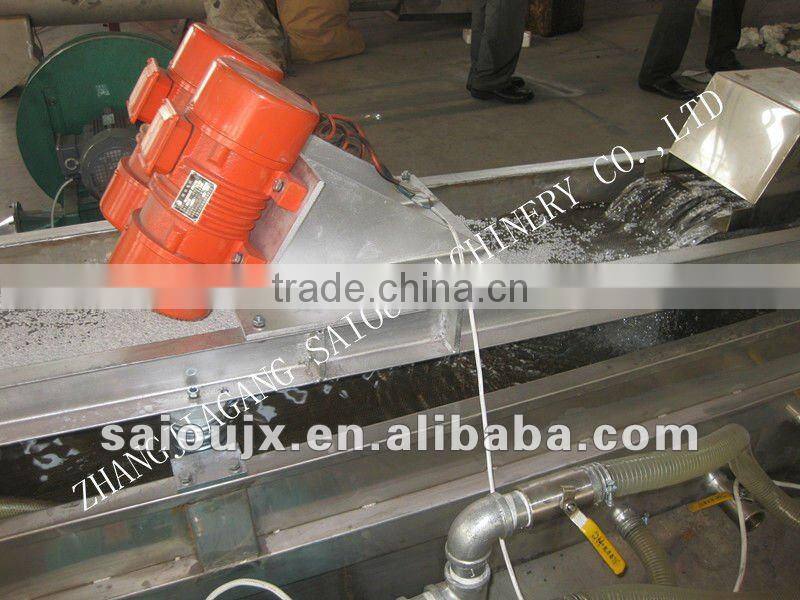

5.Vibration Screen

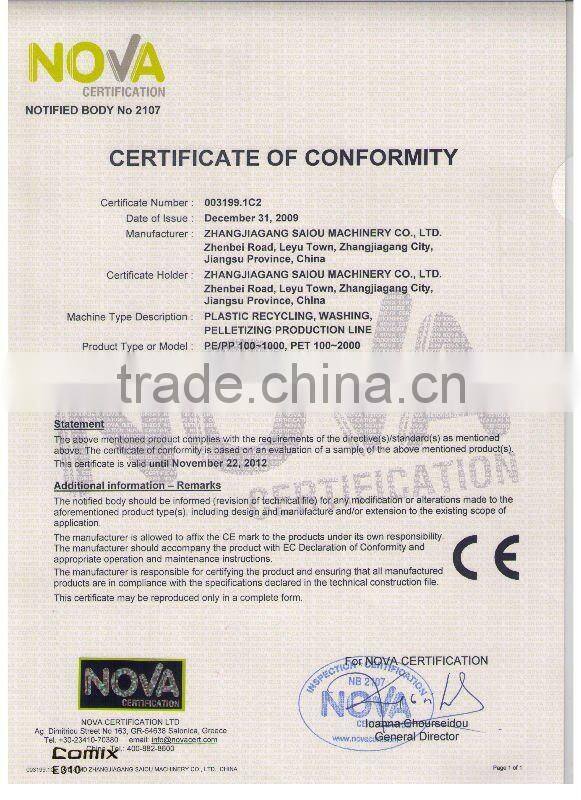

CERTIFICATE
SHIPPING
If you want more informations, please contact with us directly
Our company is near Shanghai ,about 130km. Welcome to come anytime.
We also can do recycling machines, if you need, please contact with us, thanks!
