PE PVC PP WPC Vertical Type Mixing Machine

Zhangjiagang Saiou Machinery Co., Ltd.
PE PVC PP WPC Vertical Type Mixing Machine thumbnail-1
PE PVC PP WPC Vertical Type Mixing Machine thumbnail-2
PE PVC PP WPC Vertical Type Mixing Machine thumbnail-3
PE PVC PP WPC Vertical Type Mixing Machine photo-1
PE PVC PP WPC Vertical Type Mixing Machine photo-2
PE PVC PP WPC Vertical Type Mixing Machine photo-3
US$ 5,000 - 13,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Mixing
Automatic Grade:
Automatic
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Application Mixing
Automatic Grade Automatic
Production Capacity different
Place of Origin Jiangsu, China
Brand Name SAIOU
Model Number SRL-Z
Voltage 380V
Power(W) 14kw/22kw/7.5kw Optional
Dimension(L*W*H) 2500*2100*3800 mm
Weight 550-5800kg
Certification CE/ISO9001
Warranty 1 Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description

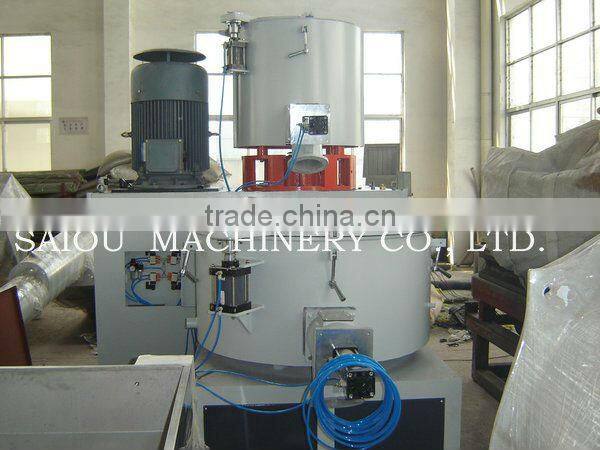

PE PVC PP WPC Vertical Type Mixing Machine



SRL-Z series vertical mixer units are widely used in mixing, drying, coloring, for all kinds of resin such as PVC, PP, PE. They can also be applied in dryness of ABS ,polycarbonate, and mixing hydroxybenzene, Alde Hyde resin.

This unit is composed of one hot mixing pot and one cooling pot, the materials from hot mixer will be filled into the cooling mixer automatically, so it can eliminate humidity, and protect from agglomeration.

Two layers of sealing are adopted in the pot lid. Pot lid of cooling mixer adopts arch lid, uneasy to be out of shape.

The blades have been passed the test of the dynamic and static balance testing machine.

It adopts PLC control and all the electric meters adopts imported famous brands.

PE PVC PP WPC Vertical Type Mixing MachinePE PVC PP WPC Vertical Type Mixing MachinePE PVC PP WPC Vertical Type Mixing Machine

Main technical parameter:

Model

Capacity

(L)

Effective

Capacity (L)

Paddle

Speed(rpm)

Motor&

Heating

Power(kw)

Outlook

Size

(mm

Weight

(T)

Remark:

The specific

mixing time

is decided

according to

processes, formulas,raw materials,

formulas,raw materials

SRL-Z

50/100

50/10032/75

750/1500-180

7/11-5.5

2300/1800

/1900

1.8

SRL-Z

100-200

100/20075/160

650/1300-180

14/22/7.5

2500/2000

/2200

2.5

SRL-Z

200/500

200/500150/320

475/950-

80

30/42/11

4580/2240

/2470

3.6

SRL-Z

300/600

300/600200/360

475/950/

130

40/55/11

4580/2240

/2500

4.5

SRL-Z

300/1000B

300/100200/640

475/950

/60

40/55/11

4600/3000

/4050

4.9

SRL-Z

500/1000A

500/1000375/650

430/860

/60

55/75/18.5

4600/3000

/4050

5.8

SRL-Z

500/1600B

500/1600375/1200

430/860

/60

55/75/18.5

4600/3000

/4050

6.5

SRL-Z

800/1600A

800/1600600/1024

357/714-

60

55/75/18.5

6230/4230

/4480

8.3

SRL-Z

800/2500A

800/2500600/1500

357/714-

50

83/110-30

4850/3860

/6550

8.8
Packaging & Shipping

 Packaging Details:mixing machine: film & wooden case

Delivery Detail:Shipped in 60 days after payment

 PE PVC PP WPC Vertical Type Mixing Machine

Our Services

 If the equipment fails due to the quality of the machine during one year, we will provide replacement and the repair Free of Charge. after One Year customer must pay for Spare Parts, Saiou will provide long-term technical assistance.Workers must operate the machines according to the design of the machine.

Saiou Machinery will not be responsible for accidents which are caused by improper operation of workers.

Payment:

 30% TT is down payment as deposit, and 70% is paied before shipment.

30% TT is down payment as deposit, and 70% by irrevocable L/C at sight.

100% irrevocable L/C at sight.
