HF100 Grouting Hole Drilling MachineCrawler type
Efficient, stable and flexible
Easy to use
Economic

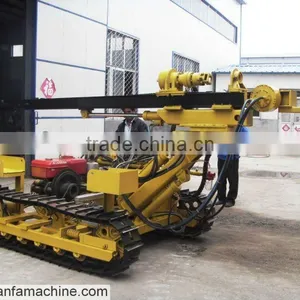

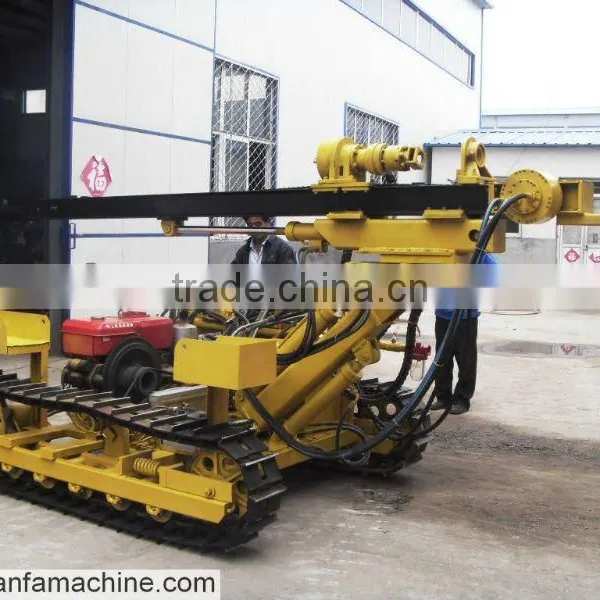

HF100 Grouting Hole Drilling Machine
1. Application
HF100 DTH drilling rig can be used for urban construction, railway, highway, river, hydroelectric project and other projects in the rock drilling anchor holes, bolt holes, blow holes, grouting hole, etc. It could drill hard rock with rock hardness f = 8-16.
2. Features
1. Caterpillar type, easy to transport.
2. High mechanical efficiency, low cost and stable performance.
3. Easy to operate, needing little experience to operate.
4. Economical and reasonable price.
3. Main Technical Parameter
Main Machine Technical Parameter | |
Model | HF100 |
Borehole diameter | 90-130mm |
Rock type | Rock, hard rock, f=8-16 |
Bore depth | 30m |
Air pressure | 0.5-0.7Mpa |
Air consumption | 6 -9m³/min
|
Flush-out frequency | 840 r/min |
Gradeability | 30°
|
Travel speed | 2km/h |
Pitch angle of carriage | up and down 10°
|
Tilt angle of carriage | left 35° right 10°
|
Length compensation of carriage | 900m |
Drilling Rod | |
Diameter | 60mm |
Rod length | 2m/pc |
Engine | |
Oil | diesel |
Power | 18.6KW (25HP) |
Overall Dimension | |
Length | 4000mm |
Width | 2020mm |
Height | 2010mm |
Weight | 2.5T |
