High Drilling Efficiency Hydraulic Rock Drilling Rig Mobile Drill Rig

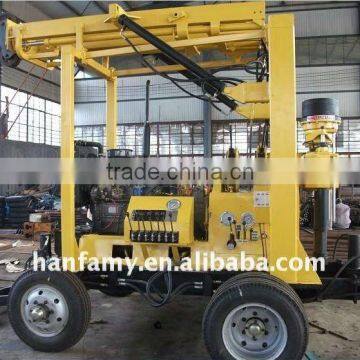

High Drilling Efficiency Hydraulic Rock Drilling Rig Mobile Drill Rig photo-1
US$ 24,000 - 300,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Place of Origin:
Henan, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Type Rotary Drilling Rig
Place of Origin Henan, China
Brand Name HF
Model Number HF-3
Usage Water Well

Specifications

HF-3 hydraulic rock drilling rig mobile drill rigs
1Trailer type,hydraulic system
2Easy-operated
3ISO9001:2000

Diesel Engine and Electric Motor Alternative! HF-3 Trailer Mounted Hydraulic Rock Drill  Rig mobile drill rig

1),easy to operate,
2)strong torque,high drilling efficency

Drilling depth

m

300-600

Open hole caliber

mm

300

End hole caliber

mm

75

Drilling rod

mm

Φ60

Drilling angle



90°-65°

Spindle

Spindle forward speed

r/min

57-1024

Spindle reverse speed

r/min

45-212

Spindle stroke

mm

560

Spindle inner diameter

mm

96

Spindle lifting capacity

KG

6000

Hoist

Single line lifting speed

m/s

0.515 0.894 1.421 1.948

Hug floodgate belt width

mm

90

Tightrope caliber

mm

12.5 or 14

Hoist single line lifting capacity

KG

3000

Reel caliber

mm

200

Reel cubic measure

m

30

Mud pump

Horizontal double actuator

Displacement

L/min

200,125

Triangle conveyer belt type



B×5

Work pressure

Mpa

4.6

Water inlet caliber

mm

65

Water to exit caliber

mm

37

Oil pump

Duplex gear oil pump          F532/F314

Front displacement,pressure



32L/min    20Mpa

Behind displacement,pressure



  14L/min    20Mpa

Drilling rig Power

Diesel engine

Hp

395Kz     40HP

Electric motor

KW

 Y180L-4  22KW
