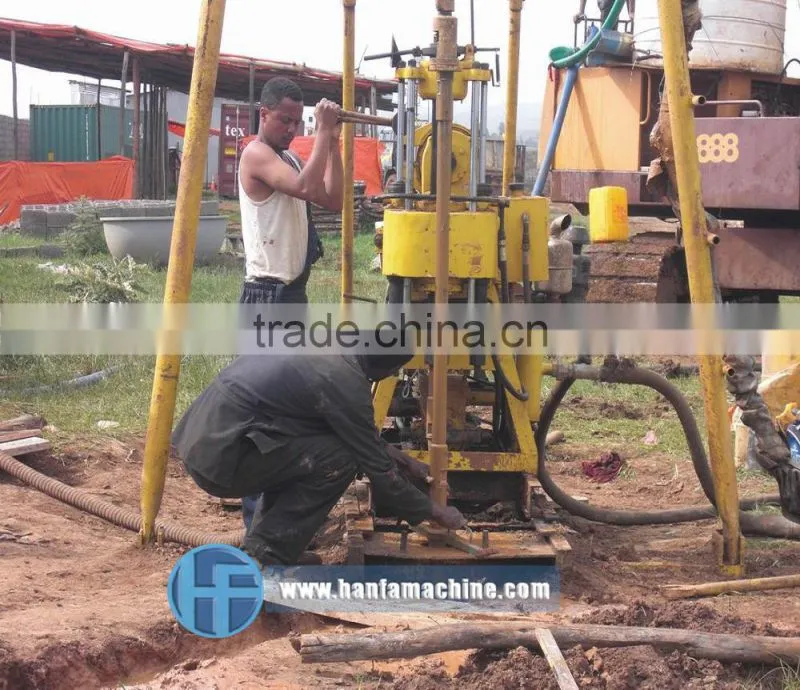

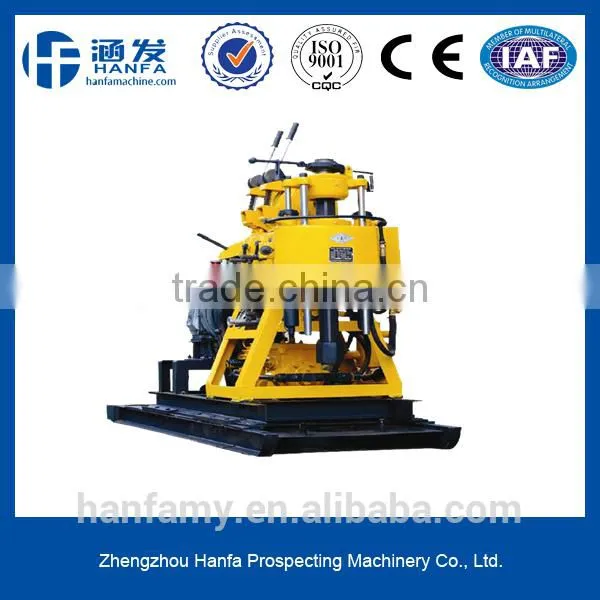

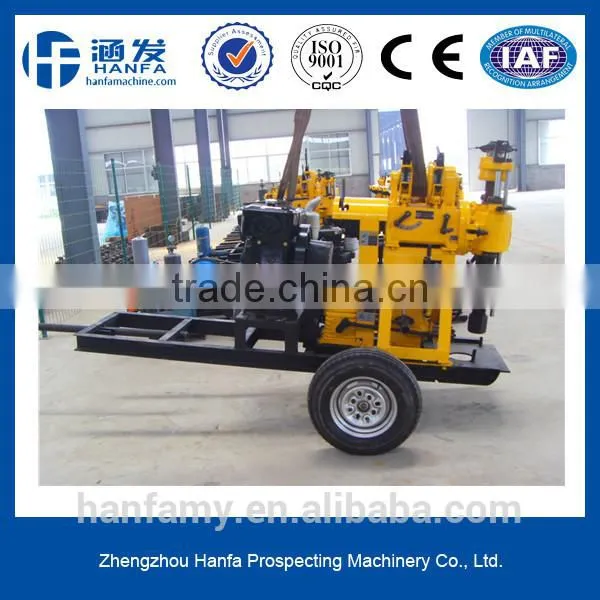

HF-150 drilling machine
.
Description and advantage:
To be equipped with hexagonal vertical shaft and hexagonal drive drilling rod which have the advantages of the strong rigidity and big transfer torque.
To be provided with cone plate friction clutch, and big transfer torque.
Adopting rolling bearing type hoist, with wide brake band and big lifting capacity.
To be equipped with speed reducer and sludge pump in the integrated structure.
The entire machine is featured by stong adaptability, high motive power, low cost and broad compatibility.
To be provided with hydraulic control pressure feed mechanism for the purpose of construction's efficiency.
To use hydraulic control well head displacement mechanism for enlargement of initial hole diameter.
Technical data:
Model |
HF150 |
||
Drilling depth |
30--150m |
||
Drlling diameter |
300-75mm |
||
Drilling pipe diameter |
50mm |
||
Drilling angle |
90°~75° |
||
Drilling weight(no include power) |
910kg |
||
Unity machine dimesions |
2.75×0.95×1.6m |
||
Spindle | |||
Spindle speed |
64,128,287,557r/min |
||
Spindle stroke |
450mm |
||
Hoist | |||
Max.single line hoisting capacity |
1600kg |
||
Reel lifting speed |
17,35,75,151r/min |
||
Reel diameter |
140mm |
||
Wirerope diameter |
12.5mm |
||
Wirerop cubic measure |
35m |
||
Hug floodgate diameter |
254mm |
||
Hug floodgate belt width |
70mm |
||
Distance between drill and hole |
400mm |
||
Mud pump | |||
Type |
Horizontal single urn twin-action |
||
Displacement |
170L/min |
||
Power | |||
Diesel engine |
s1105 Model, 18HP |
||
Electric Motor |
Y160M—4 ,15kw 1440r/min |
||
Maximum pressure |
1.5Mpa |
||
Work pressure |
0.7Mpa |
||
Water inlet caliber |
40mm |
||
Water to exit caliber |
30mm |
||
Triangle conveyer belt |
B1728mm |
||
Useful | |||
Geology general check exploration,Earth physics exploration,sampling test in mining, water Well,Blast opening etc drilling engineering | |||
