Specifications
HF-MPI Portable Ores Detector1.portable and economical
2.used in minerals and water prospecting
3,small cubage

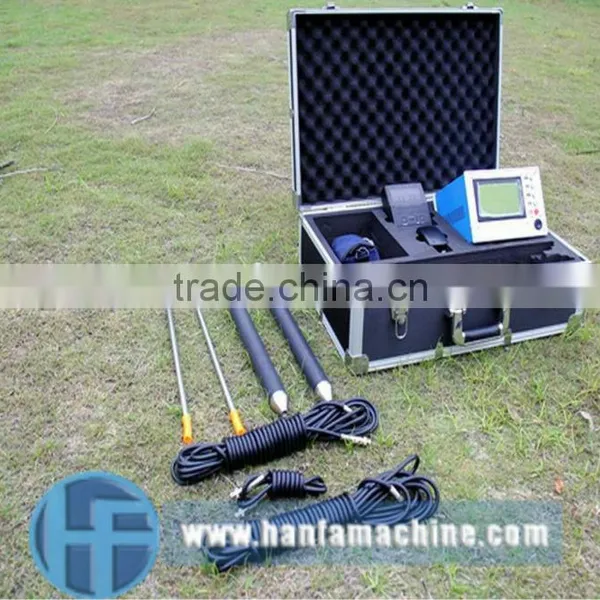

HF-MPI Easy Operation Portable Ores Detector
Application Range
using for locator underground water, minerals and solve engineering geophysical problem and geophysical disaster. Working area is from large to several square kilometer to small to several square, especially for mountain area and city prospecting.
Specifications
Product parameters
Frequency: (Hz C/S)
Three-frequency measurement: Each measuring point measures the following
three frequency data: 25;67;170
Multi-frequency measurements: A measuring point for fixed-point
measurement, measuring the following 30 frequency data:
20;30;40;50;60;70;80;90;100;110;120;130;140;150;
170;190;210;230;250;300;350;400;460;500;700;900;
1100;1300;1500;2000
Each frequency range allows the election: Center frequency ±1%
Measurement parameters: Magneto telluric different frequencies electric
field component
ΔV⊥s,ΔV"s (mV)
Measuring range: 1 uV-250mV, instrument automatically converted range
Input impedance: >10MΩ
Power: 12V/1.2AH battery
Work environment: Temperature (-10°C—+45°C), relative humidity: ≤85%
