Specifications

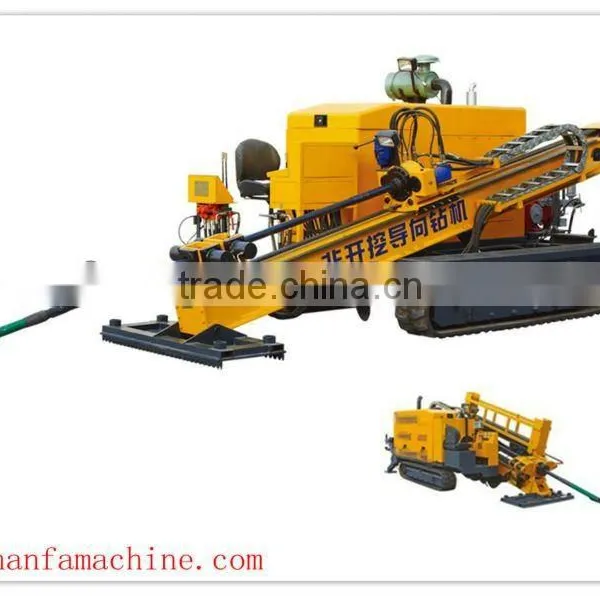

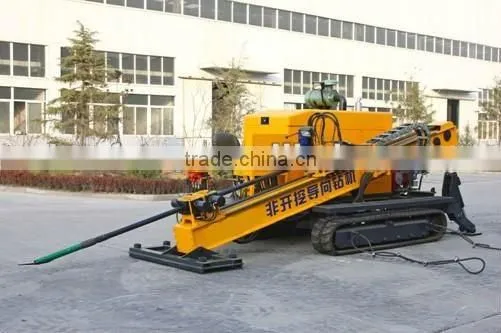

HFDP-15 Hydraulic Trenchless Drills1.Advanced, compact structure
2.High efficiency good stability drill rig
3.Horizontal rig
Hydraulic Trenchless Drills
Hydraulic Trenchless Drills
1.Advanced, compact structure
2.High efficiency, good stability drill rig
3.Low oil consumptio
* With low emission diesel engine, it is suitable for performance in city; direct fuel injection requires not preheat in winter.
* The chassis and mast are high in rigidity and intensity, they are durable and reliable.
* Equipped with hydraulic outriggers, the rig could be adjusted to balance and stability with convenience and easiness.
* The mud pump is driven hydraulically with fourspeed mechanical gear shift/stepless speed change. With controllable wide flow range, the displacement could be adjusted flexibly according to different geological conditions and performance techniques.
* Equipped individually of mud processing unit, adopting injection and recirculation storage procession method, the efficiency will be increased and the intensity of labor will be decreased.
* With the rod, 60mm in diameter and 3000mm in length, the drilling tools are complete in matching accessories and could be produced in accordance with the requirement of clients unusually.
The Main Machine | |
Power of Engine |
66.2 KW(89HP) (2200r/min) |
Max. Push capacity |
75KN (16860 lbf) |
Max. Pull capacity0 |
150KN (33720 lbf) |
Rated Torque |
4200 N·M(3096 lbf·ft) |
Hollow Spindle RPM |
Lower 0-60r/min |
High 0-120r/min | |
Feeding Stroke |
3500 mm(137.8 inch) |
Diameter of Guide Hole |
80 mm(3.15 inch) |
Drilling Angle |
0°20° |
Pressure of hydraulic system |
20-25Mpa(2901-3626 psi) |
Traveling speed |
2.5 km/h (8200 feet/h) |
Structural Style |
integrated with rubber crawler and mud pump |
Dimension (L×W×H) |
5800×2050×2380 mm(228×81×94 inch) |
Weight |
6100 kg(13450 lb) |
Mud Pump | |
Specification |
BW-160A |
Max. Discharge |
160 L/min(42.3 US Gallons/min) |
Peak Pressure |
10 Mpa(1450 psi) |
Mud Process System | |
Mud Tank |
1.5M3 (53 feet3) |

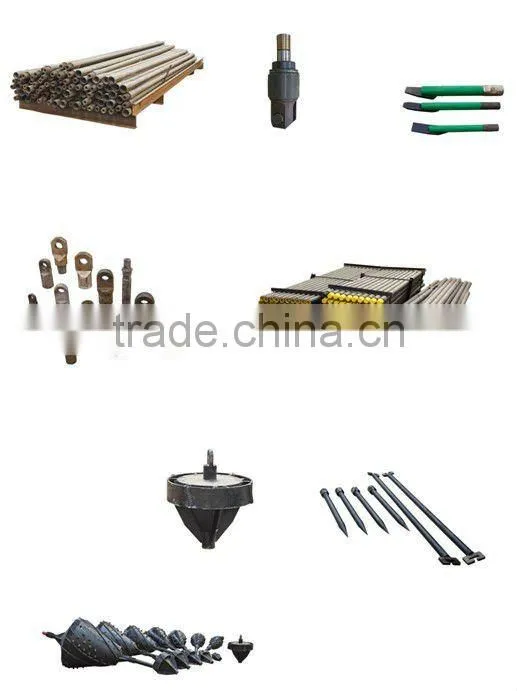

Drilling tools and auxiliary system | |
Specification of Rod |
60×3000 mm(2.36×118 inch) |
Guide Bit |
80 mm(3.15 inch) |
Reamer |
179;259;313;365;417mm (7.05;10.2;12.32;14.37;16.42 inch) |
Distributor |
25T(55125 lb) |
Tracker |
Optional Part |
