Product Details
Condition: | New | Type: | Other, geological drilling | Power Type: | Diesel |
Place of Origin: | Henan, China | Brand Name: | HF | Model Number: | HFDP-40 |
Usage: | Other, geological drilling | Voltage: | 220V/380V | Power(W): | 175kw |
Dimension(L*W*H): | 7800*2300*2350 mm | Weight: | 16000 kg | Certification: | ISO CE |
Warranty: | 1 Year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
ISO 9001:2000 certificated ! geological drilling for geological exploration

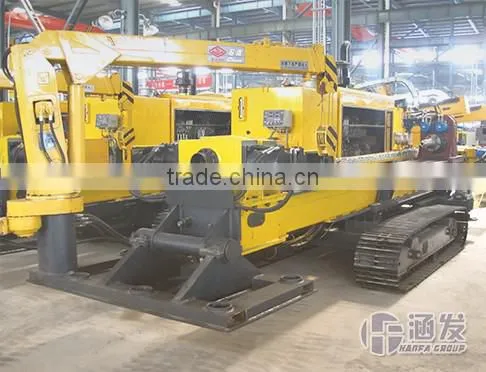

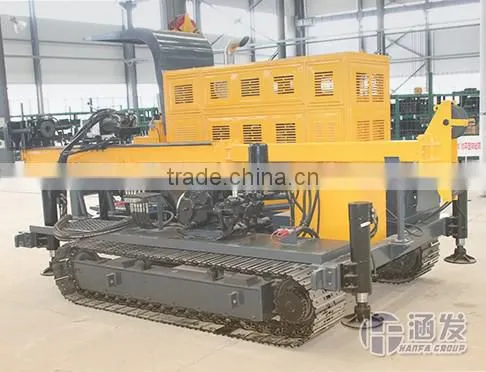

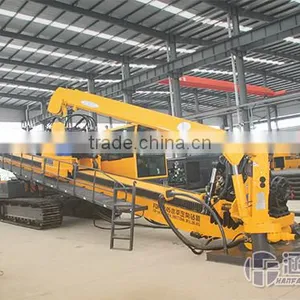

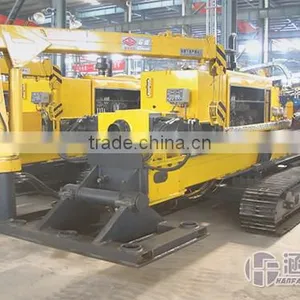

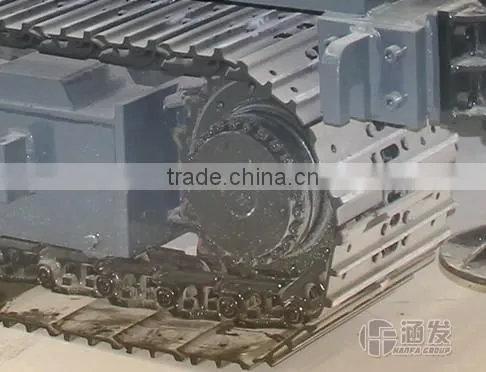

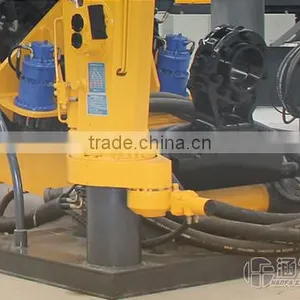

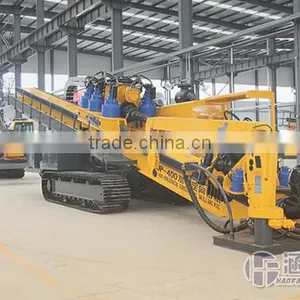

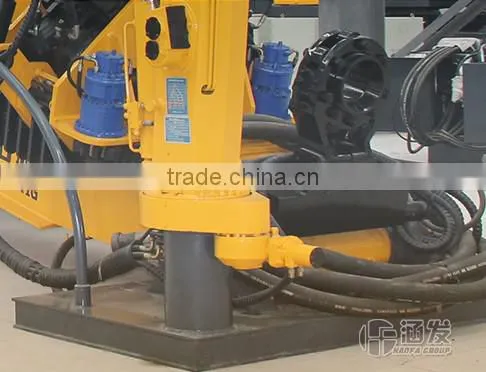

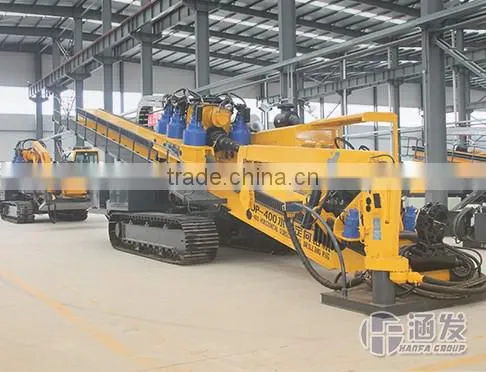

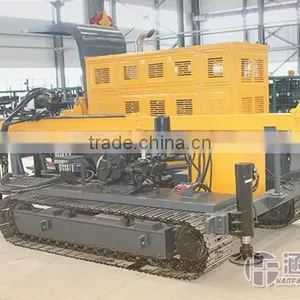

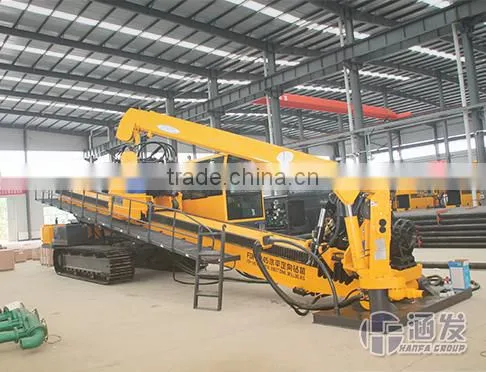

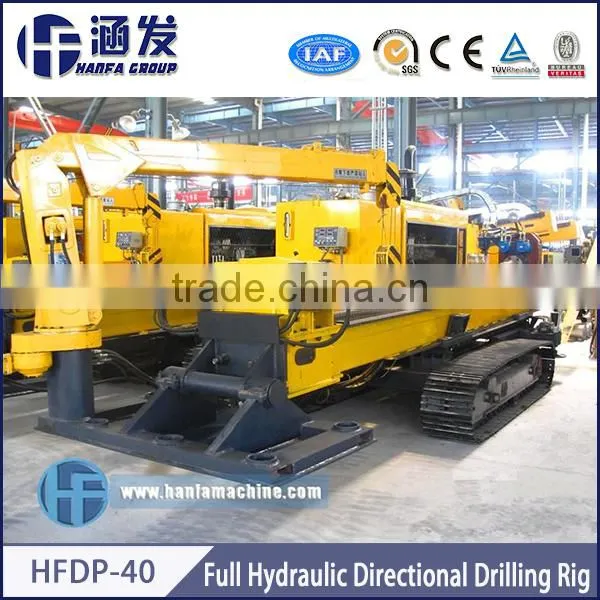

The HFDP-40 directional drilling rig is driven with full hydraulic system, propelled with its own crawlers. Driven with duplex zero motors, the rotator could drill with two speeds with an advanced and compact structure. Adopting chain feeding system driven by motor, the motor could move stably and reliably. The mast could be adjusted for the angle of drilling holes from 8° to 22° . The overall unit is in low center of gravity and good stability with graceful structure. An auxiliary crane is equipped to the rig. The comfortable operation circumstance is provided to the operator.
Basing on the idea of purchasing internationally, the main matching parts and auxiliary equipments, such as diesel engine, hydraulic pumps, valves, motors, reducer and key hydraulic accessories are all adopted in famous brand at home and abroad.
The HFDP-40’s big torque, reasonable structure design, advanced operation way and 4.5 m (14.76 feet) length of rod all guarantee the rig a high efficient performance.
Specification |
|
The Main Machine |
|
Power of Engine | YC6M240 175 KW(235HP) (2200 r/min) |
Max. Push capacity | 400KN (89920 lbf) |
Max. Pull capacity | 400KN (89920 lbf) |
Rated Torque | 15000 N · M (11055 lbf · ft) |
Hollow Spindle RPM | Lower 0-40r/min |
| High 0-80r/min |
Feeding Stroke | 5000 mm(197 inch) |
Diameter of Guide Hole | 170 mm(6.7 inch) |
Drilling Angle | 8°—20° |
Pressure of hydraulic system | 20Mpa(2901 psi) |
Traveling speed | 2 km/h(6560feet/h) |
Structural Style | integrated with steel crawler, crane and mud pump |
Dimension (L×W×H) | 7800×2300×2350 mm(307×90.6×92.5 inch) |
Weight | 16000 kg(35280 lb) |
Crane | 2T/m(1345 lb/feet), Max Straight-arm 4.5m(14.8 feet) |

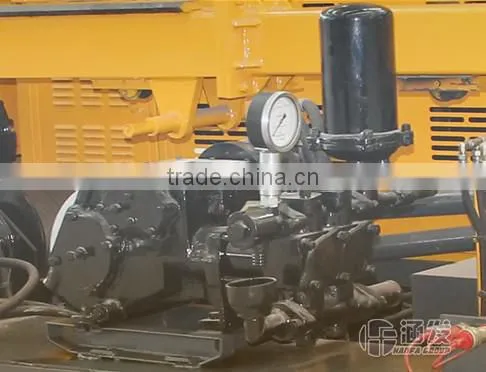

Mud Pump |
|
Specification | BWF-400 |
Max. Discharge | 400 L/min (106 US Gallons/min) |
Peak Pressure | 10 Mpa(1450 psi) |
Mud Process System (Optional Part) |
|
Data of engine | 20.9PS petrol engine |
Pump parameter | 100 m 3 /h (3529 feet 3 /h) |
Mud processing capacity | 16 m 3 /h (565 feet 3 /h) |
Mud Tank | 5M 3 (176feet 3 ) |
Weight | 500kg(1103 lb) |
Drilling tools and auxiliary system |
|
Specification of Rod | 89×4500 mm(3.5×177 inch) |
Guide Bit | 170 mm (6.7 inch) |
Reamer | 400;500;600;720;830;900mm |
| (15.7;19.7;23.6;28.3;32.7;35.4 inch) |
Distributor | 60T (132300 lb) |
Tracker | Optional Part |

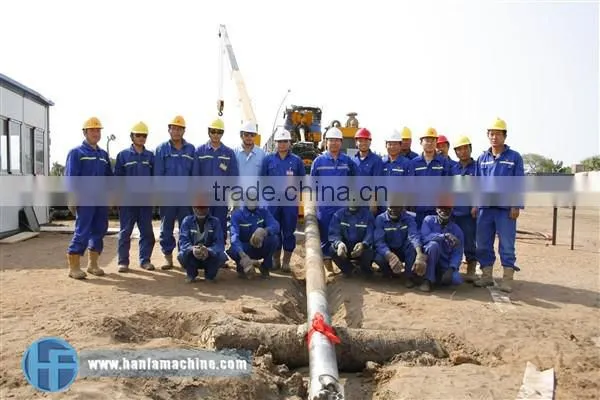

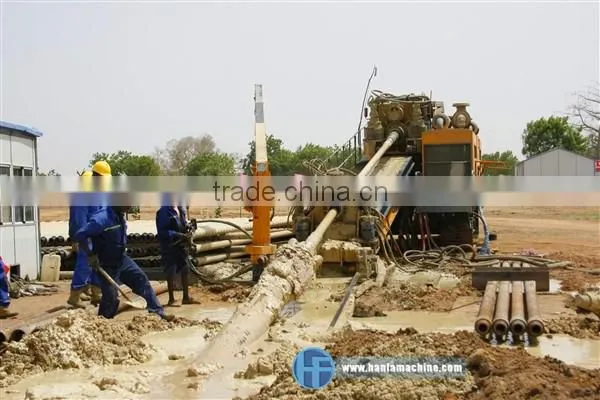

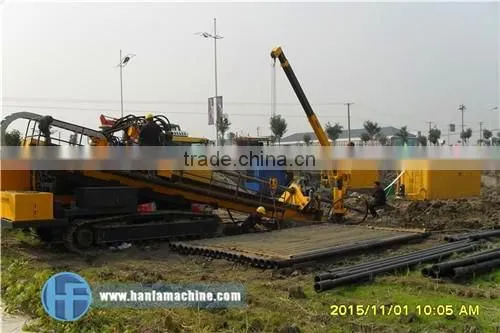

HFDP-40 at worksite :

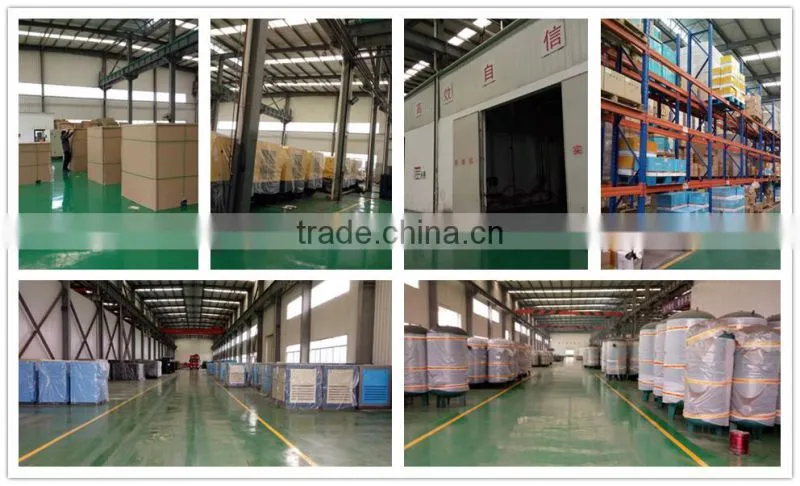

Our Factory:
Our certificate
