Quality Ensure!!Best After-self Service!! HF100Y Crawler Hydraulic Drilling Machine
US$ 13,500 - 15,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Core Drilling Rig
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Open Mining Drilling Rig! Crawle Type~ HF138Y Horizontal Bore Hole Drilling EquipmentUS$ 25,000 - 28,000MOQ: 1 Set -
Open Mining Drilling Rig! Crawle Type~ HF138Y Horizontal Bore Hole Drilling RigUS$ 25,000 - 28,000MOQ: 1 Set
-
Open Mining Drilling Rig! Crawle Type~ HF138Y Horizontal Hole Drilling EquipmentUS$ 25,000 - 28,000MOQ: 1 Set
-

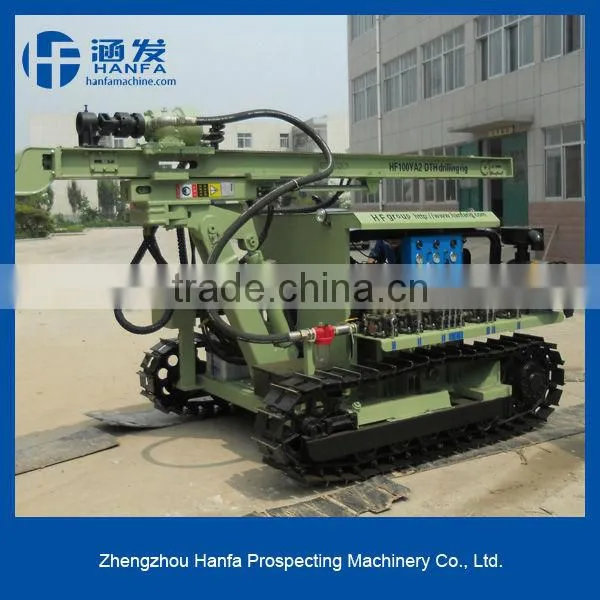

Shot Hole Drill ! HF100YA2 Machine Rock DrillUS$ 15,000 - 18,000MOQ: 1 Set
-
CE Certificate ! Quality Ensure Your Best Choice ! HF140Y Hydraulic Crawler Rock Drilling Rig , Geotechnical Drilling RigUS$ 30,000 - 42,000MOQ: 1 Set
Condition
New
Type
Core Drilling Rig
Power Type
Diesel
Place of Origin
Henan, China
Brand Name
HF
Model Number
HF100Y
Usage
Coal
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications
HF100Y crawler hydraulic drilling machine1.diameter90mm-130mm,
2.hydraulic
3.small valume, crawler
4.easy to transport
HF100Y crawler hydraulic drilling machine
I. Application
HF100Y DTH drilling rig can be used for urban construction, railway, highway, river, hydroelectric project and other projects in the rock drilling anchor holes, blast hole, bolt holes, blow holes, grouting hole, etc. It could drill hard rock with rock hardness f = 8-16.
II. Features
1. Caterpillar type, easy to transport.
2. High mechanical efficiency, low cost and stable performance.
3. Easy to operate, needing little experience to operate.
4. Economical and reasonable price.
| Main Machine Technical Parameter | |
| Model | HF100Y |
| Borehole diameter | 90-130mm |
| Rock type | Rock, hard rock, f=8-16 |
| Bore depth | 30m |
| Air pressure | 0.5-0.7Mpa |
| Air consumption | 6 -9m³ /min |
| Flush-out frequency | 840 r/min |
| Gradeability | 30° |
| Travel speed | 2km/h |
| Pitch angle of carriage | up and down 10° |
| Tilt angle of carriage | left 35° right 10° |
| Length compensation of carriage | 900m |
| Drilling Rod | |
| Diameter | 60mm |
| Rod length | 2m/pc |
| Engine | |
| Oil | diesel |
| Power | 18.6KW (25HP) |
| Overall Dimension | |
| Length | 4000mm |
| Width | 2020mm |
| Height | 2010mm |
| Weight | 2.5T |
