Quality Ensure!Rock Drilling!Stone Killer!crawler Type Hydraulic Movable Drill HF138Y, With Air Compressor
US$ 23,800 - 40,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other
Power Type:
Diesel
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Best Sale!Stone Killer!Economical and Practical!HF115Y Crawler-type Geothermal Drilling RigsUS$ 21,000 - 35,000MOQ: 1 Set -
Rock Drilling!Stone Killer!crawler Type Hydraulic Movable Drill HF138Y, With Air CompressorUS$ 23,800 - 40,000MOQ: 1 Set
-
Hard Rock Killer!NO.1 Sale!!Quality Ensure!!HF140Y Crawler Type Blasthole Drilling RigUS$ 30,000 - 42,000MOQ: 1 Set
-
CE Certificate!!perfect Drill Rig,high Efficent!!! HF130Y Crawler Hydraulic DTH Drilling MachineUS$ 25,000 - 32,000MOQ: 1 Set
-
No.1 Sale!Stone Killer!!Quality Ensure!!HF140Y Crawler Type Blasthole Drilling RigUS$ 30,000 - 42,000MOQ: 1 Set
Condition
New
Type
Other
Power Type
Diesel
Place of Origin
Henan, China
Brand Name
HF
Model Number
HF138Y
Usage
Ore
Certification
CE
Warranty
1 year
After-sales Service Provided
Engineers available to service machinery overseas
Specifications

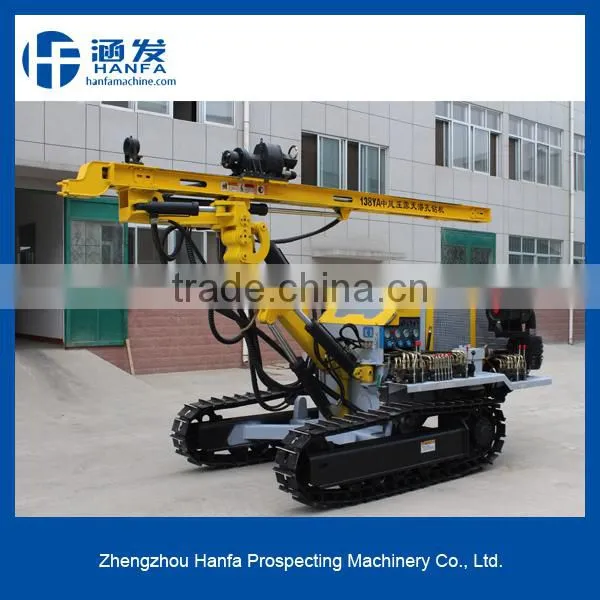

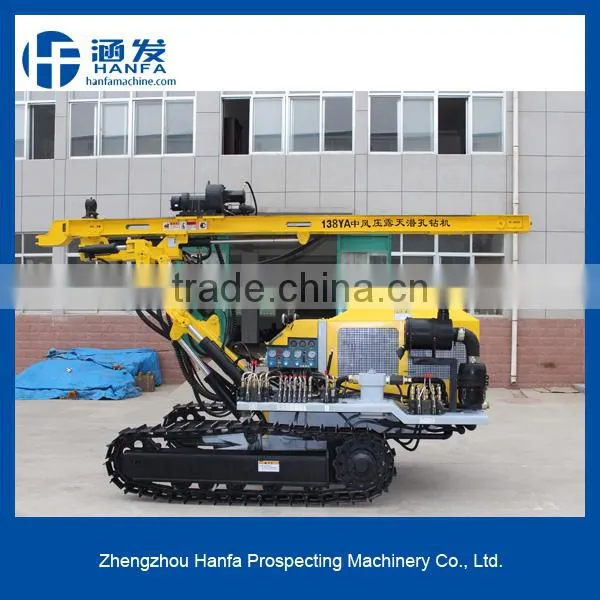

HF138Y crawler type Hydraulic movable drill1.new hydraulic technology,easy operation
2.crawler type, high speed
3.durable

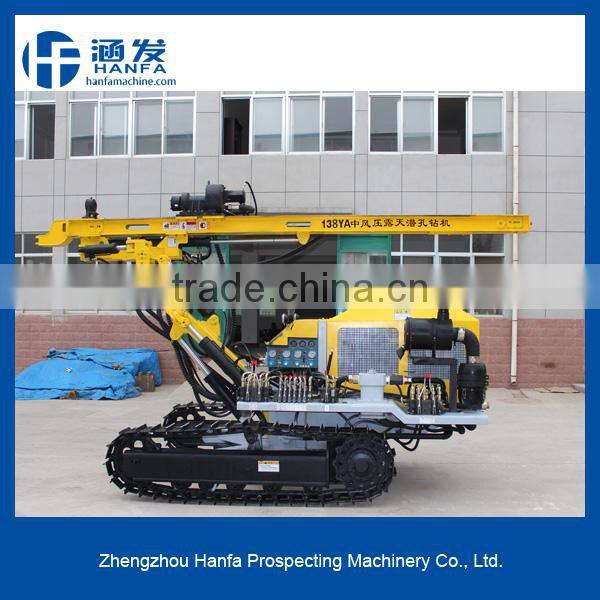

crawler type Hydraulic movable drill HF138Y, with air compressor
Introduction
1>HF138Y can drill level to 40m, down to 30m,drilling caliber is from 90mm to 130mm,mainly used in open-air mining, water conservancy, power plants, roads and other stonework blast hole drilling engineering
2>It can drill through soil,clay,granite,Hard Rock layers(F=6-20) and so on,capable to meet your various requirements.
3>It uses new type of hydraulic technology, low consumption, large rotary torque, convenient hole deflection.The drilling machine structure is compact,.while the mast has adjustable compensation function.when drilling, the mast supported on the ground, borehole stability is good.
Main technical parameters
Bore diameter | 90-130mm |
Bore depth | 40m |
Walk speed | 0-2.5kw/h |
For rock | F=6-20 |
Air pressure | 0.7-1.6Mpa |
Air consumption | 7-15m³/min |
Once promotion | 3000mm |
Skid pitch | 100° |
Swinging angle of skid | Left and right total 70° |
Rotation speed | 0-120r/min |
Host power | 45Kw |
Climb ability | 35° |
Dimension(L*W*H) | 5270*1950*2300(mm) |
weight | 4170Kg |
