Specifications
HF100YA2 shot hole drill equipment1.30m depth,130~90mm diameter
2.high rock drilling efficiency
3.crawler type
Air DTH drilling rig! HF100YA2 shot hole drill equipment
Specifications
HF100Y2 crawler hydraulic drilling rig, using a new hydraulic technology, with low air consumption rotary torque, variable-bit-shift convenient hole, the drilling rig structure, a compact, the smallest turning radius of only 2.8m, while promoting a retractable sliding shelf compensation. When drilling, the sliding frame support on the ground, have good stability.
The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other Rock drilling blasting holes.
Features:

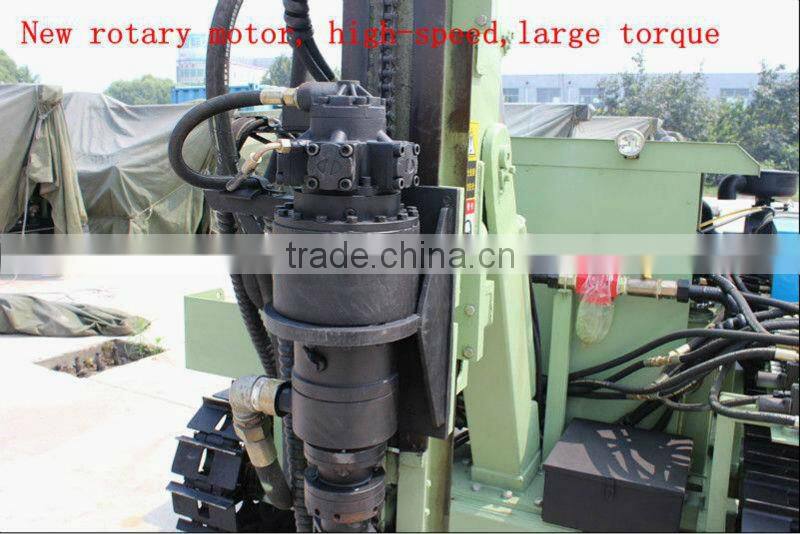

1.Rotary structure can be low, medium and high-speed switching, perforation of the work to meet the needs of the different rock
2.Double-pump reduces the pump using the failure rate and maintenance costs
3.Walking with high torque agencies to ensure a strong power output
4.Enhance and promote organizations to adopt the fuel tank of the completion of reliable
HF100YA2 DTH Drilling Rig Technical Parameters:
Total Weight (kg) | 2800 |
Drilling diameter (mm) | 90---130 |
Dimension (L * W * H) (mm) | 4100*2030*2020 |
Drilling depth (m) | 30 (max:40) |
Travelling speed (km/h) | 2 |
Once promotion distance (mm) | 2000 |
Grade ability (°) | 30 |
Working pressure (mpa) | 0.7—1.4 |
Chassis ground clearance (mm) | 260 |
Air consumption (m³/min) | 7--15 |
Skid pitch (°) | up and down total 100 |
Host Power (kw) | 33 |
Sliding tilt swing (°) | Left 35, right 10 |
For rock (f) | 6--20 |
Skid compensation (mm) | 900 |
Impact frequency (r/min) | 840 |
Note: The Company’s products continued to improve; various design and technical specifications may change at any time, without any additional notice or obligation. | |

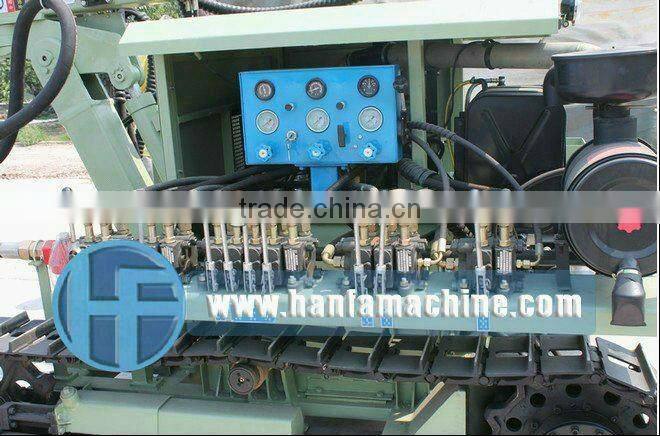

Hydraulic parts:

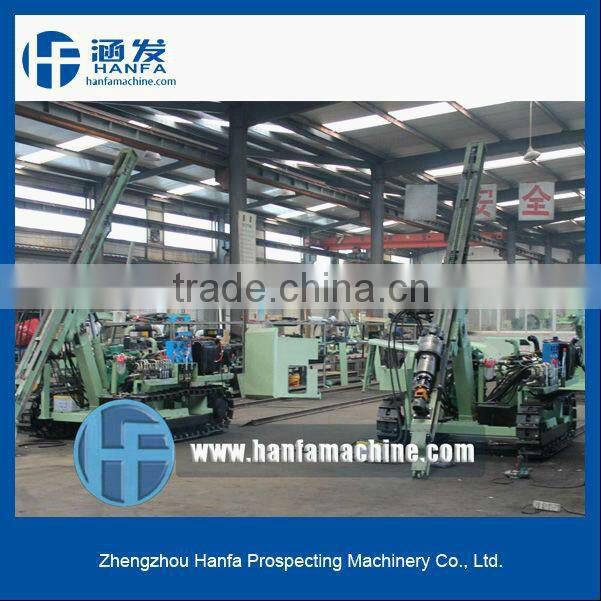

Our workshop:
Customers visiting:
About us:
