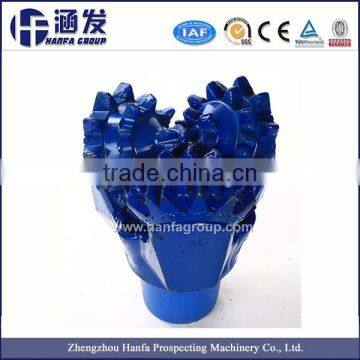

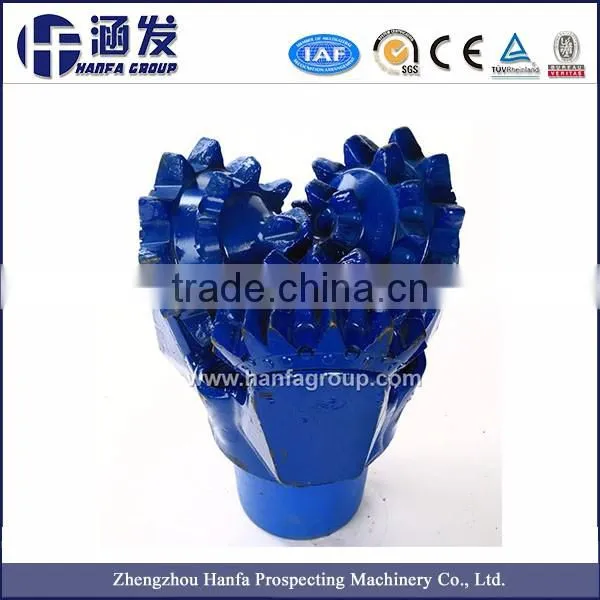

Core Drilling Bit, Tricone Drilling Bit, Tricone Bit photo-1
Core Drilling Bit, Tricone Drilling Bit, Tricone Bit photo-2
Core Drilling Bit, Tricone Drilling Bit, Tricone Bit photo-3
Core Drilling Bit, Tricone Drilling Bit, Tricone Bit photo-4
Core Drilling Bit, Tricone Drilling Bit, Tricone Bit photo-5
Core Drilling Bit, Tricone Drilling Bit, Tricone Bit photo-6
US$ 200 - 800 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Hanfa
Model Number:
Tricone Bit
Contact Supplier Request Quote Chat Now
Zhengzhou Han Fa Imp & Exp Trading Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Henan, China
Brand Name Hanfa
Model Number Tricone Bit
Type Other, Core Drill Bit, Tricone Bit
Material Other, other
Use Other, drill machine

Core Drilling Bit, Tricone Drilling Bit, Tricone Bit





Core Drilling Bit, Tricone Drilling Bit, Tricone Bit




1.Tricone bit cutting structure


Adopting new formula of new technology of the high quality hard alloy tooth, enhance the cutting teeth mechanical properties.

2. Tricone bit diameter structure


Using multiple gage protection structure: Die with multidrug trimming tooth (GT teeth), round back, claw back set have cemented carbide gear, surfacing resistance mo alloy, strengthen ZhaoJian and anterior apply welding, greatly improving the drill gage protection ability.

3. Tricone bit bearing structure


Adopting high precision with radial sliding, two way thrust bearings, ball tight. Tooth claw big shaft neck and two stop surface welding have wear-resisting alloy, cone big hole and two stop surface solution and silver inlaid special alloy, increase the abrasion resistance and resistance bearing vice occlusive ability, improve bearing ability of high speed vice adapt.

4. Tricone bit seal lubricants


Adopting advanced metal seal, greatly extend the drill life.

5. Tricone bit applicable



Metal seal bit stable performance, than common rubber seal bit longer life, suitable for underground power drill and high penetration rate turntable drilling. <o:p>



Core Drilling Bit, Tricone Drilling Bit, Tricone Bit

IADC   WOB RPM Application
(KN/mm) (r/min)
111/114/115 0.3-0.75 200-80 very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
116/117 0.35-0.8 150-80 very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk
121 0.3-0.85 200-80 soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
124/125 180-60
131 0.3-0.95 180-80 soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
136/137 0.35-1.0 120-60
211/241 0.3-0.95 180-80 medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds.
216/217 0.4-1.0 100-60
246/247 0.4-1.0 80-50 medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
321 0.4-1.0 150-70 medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble
324 0.4-1.0 120-50
437/447/435 0.35-0.9 240-70 very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone
517/527/515 0.35-1.0 220-60 soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone
537/547/535 0.45-1.0 220-50 soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds
617/615 0.45-1.1 200-50 medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite
637/635 0.5-1.1 180-40 hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble
Note: Above limitts of WOB and RRPM should not be used simultaneously


PIN SIZE

Bit Diameter API PIN
(inch) (mm)
3 7/8"~5 1/4" 98~134 2 3/8", 2 7/8"
5 5/8"~6 3/4" 143~171 3 1/2"
7 1/2"~9 1/2" 190.5~241 4 1/2"
9 5/8"~13 3/4" 245~350 6 5/8"
14 5/8"~26" 371~660.4 7 5/8"
