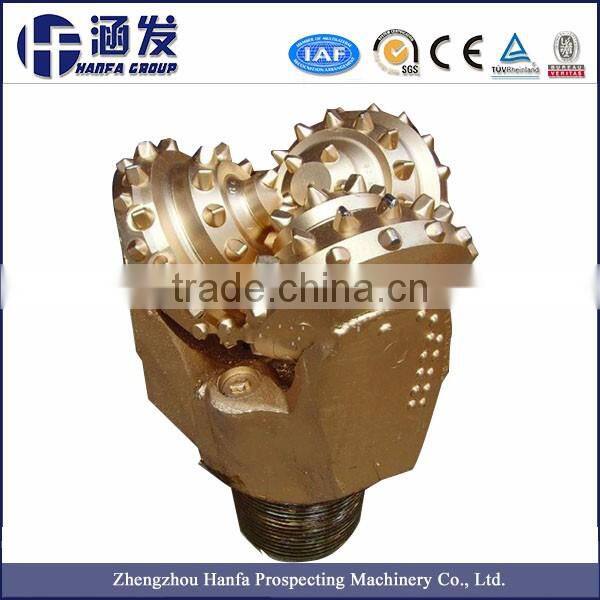

Different Types and Sizes of TCI Rock Bits & Tricone Bits
US$ 200 - 800
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
Hanfa
Model Number:
Tricone Bits
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Organic Derivative of a Bentonite Clay With High PurityUS$ 100 - 300MOQ: 1 Bag -
DTH Hammer Drill Bits for MiningUS$ 200 - 1,900MOQ: 1 Piece
-
Low Pressure DTH Hammars, Good Hammer DrillUS$ 500 - 1,900MOQ: 1 Piece
-
6" DTH Drill Bit and HammerUS$ 500 - 1,900MOQ: 1 Piece
-
Down The Hole Hammer, DTH Hammer, Tsk HammerUS$ 500 - 1,900MOQ: 1 Piece
Place of Origin
Henan, China
Brand Name
Hanfa
Model Number
Tricone Bits
Type
Other, Core Drill Bit, Tricone Bits
Material
Other, other
Use
Other, Drilling Machine
Different Types and Sizes of TCI Rock Bits & Tricone Bits
The roller-cone bits are used to drill all kinds of formations, from soft to hard. The softer formations use steel-tooth bits, and the harder use tungsten carbide.<o:p>
The biggest advantage the tricone bits have over any other drill bit is the test of time. They have been proven time and time again, and they're the best at controlling the trickier situations. Tricones' ability to handle both soft and hard formations gives them the flexibility that other drill bits do not have.
| IADC | WOB | RPM | Application |
| (KN/mm) | (r/min) | ||
| 111/114/115 | 0.3-0.75 | 200-80 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk |
| 116/117 | 0.35-0.8 | 150-80 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk |
| 121 | 0.3-0.85 | 200-80 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 124/125 | 180-60 | ||
| 131 | 0.3-0.95 | 180-80 | soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds |
| 136/137 | 0.35-1.0 | 120-60 | |
| 211/241 | 0.3-0.95 | 180-80 | medium formations with high compressive strength, like medium, soft shake, hard gypsum, medium soft limestone, medium soft sandstone, soft formation with harder interbeds. |
| 216/217 | 0.4-1.0 | 100-60 | |
| 246/247 | 0.4-1.0 | 80-50 | medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite |
| 321 | 0.4-1.0 | 150-70 | medium abrasive formations, like abrasive shale, limestone, sandstone, dolomite, hard gypsum, marble |
| 324 | 0.4-1.0 | 120-50 | |
| 437/447/435 | 0.35-0.9 | 240-70 | very soft formations with low compressive strength and high drill ability, like clay, mudstone, chalk, gypsum, salt, soft limestone |
| 517/527/515 | 0.35-1.0 | 220-60 | soft formations with low compressive strength and high drill ability, like mudstone, gypsum, salt, soft limestone |
| 537/547/535 | 0.45-1.0 | 220-50 | soft to medium formations with low compressive strength, like medium, soft shake, medium soft limestone, medium soft sandstone, medium formation with harder and abrasive interbeds |
| 617/615 | 0.45-1.1 | 200-50 | medium hard formation with high compressive strength, like hard shale, limestone, sandstone, dolomite |
| 637/635 | 0.5-1.1 | 180-40 | hard formation with high compressive strength, like limestone, sandstone, dolomite, hard gypsum, marble |
| Note: Above limitts of WOB and RRPM should not be used simultaneously | |||
PIN SIZE
| Bit Diameter | API PIN | |
| (inch) | (mm) | |
| 3 7/8"~5 1/4" | 98~134 | 2 3/8", 2 7/8" |
| 5 5/8"~6 3/4" | 143~171 | 3 1/2" |
| 7 1/2"~9 1/2" | 190.5~241 | 4 1/2" |
| 9 5/8"~13 3/4" | 245~350 | 6 5/8" |
| 14 5/8"~26" | 371~660.4 | 7 5/8" |
