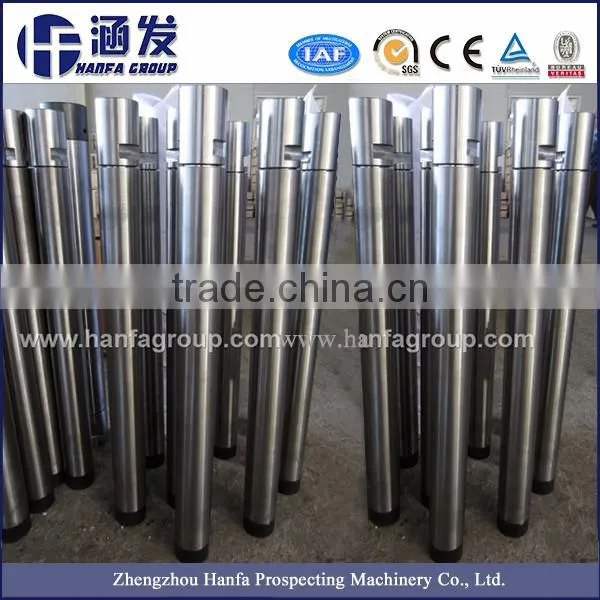

Low Pressure DTH Hammars, Good Hammer Drill
US$ 500 - 1,900
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Henan, China
Brand Name:
HF
Model Number:
Hammer Drill
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6" DTH Drill Bit and HammerUS$ 500 - 1,900MOQ: 1 Piece -
Down The Hole Hammer, DTH Hammer, Tsk HammerUS$ 500 - 1,900MOQ: 1 Piece
-
Numa Shank HammerUS$ 900 - 1,900MOQ: 1 Piece
-
DTH Drill Hammer for DTH Drilling RigUS$ 900 - 1,900MOQ: 1 Piece
-
DHD3.5 DHD340 DHD350 DHD360 DHD380 DTH HammerUS$ 500 - 1,900MOQ: 1 Piece
Place of Origin
Henan, China
Brand Name
HF
Model Number
Hammer Drill
Type
Other, dth hammer, Hammer Drill
Machine Type
Drilling Tool
Certification
AISI
Material
High Manganese Steel
Processing Type
Forging
Use
Well Drilling
Low Pressure DTH Hammars, Good Hammer Drill
Our DTH hammer and bits are compatible with CIR, DHD,QL,SD,Mission, etc. series of Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. Even for all kinds of high hardness, high abrasive rocks and other harsh conditions, our drilling tools can also realize efficient and economical drilling.
|
Item |
GL65B |
GL70 |
GL76 |
GL80 |
GL90 |
GL90-1 |
GL110 |
GL150 |
GL170 |
|
Drilling Dia. |
68-70 |
72-74 |
74-76 |
80-82 |
90-130 |
90-130 |
110-150 |
150-185 |
170-250 |
|
(mm) | |||||||||
|
Hammer Length(mm) |
745 |
803 |
766 |
796 |
796 |
796 |
838 |
908 |
1023 |
|
Outside Dia. |
61.2 |
67.2 |
67.2 |
72 |
80.2 |
80 |
98 |
137 |
156 |
|
(mm) | |||||||||
|
Weight(kg) |
13 |
14 |
15 |
17 |
20 |
20 |
30 |
75 |
90 |
|
Working Pressure(Mpa) |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
0.5-0.7 |
|
Air |
2.5 |
3 |
3 |
5 |
6 |
5.5 |
11 |
17 |
19.5 |
|
Consumption | |||||||||
|
(M3/Min.) | |||||||||
|
Torque(N.M) |
51 |
70 |
75 |
81 |
110 |
120 |
180 |
340 |
420 |
|
Impact |
≥810 |
≥810 |
≥810 |
≥800 |
≥820 |
≥820 |
≥830 |
≥800 |
≥790 |
|
Frequency (Times/Min.) | |||||||||
|
Connection 1 |
×10×1.5 |
×4.2 |
×10×2 |
×10×2 |
×10×2 |
×10×2 |
API 2-3/8" |
76×10×3 |
×28×10 |
|
Connection 2 |
37-4 |
43-6 |
44-4 |
50-6 |
54-6 |
54-6 |
65-6 |
90-6 |
98-6 |
