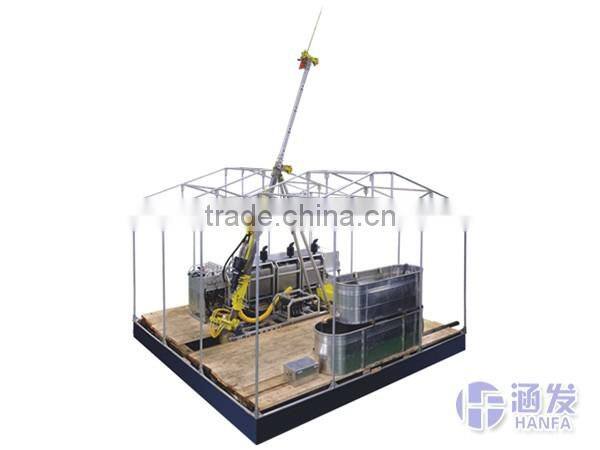

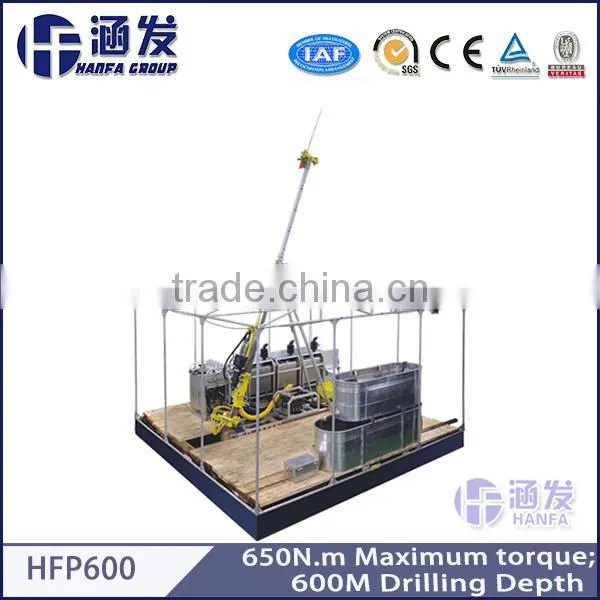

China top HFP600 portable geological prospecting drilling rig
Fields of Application
HFP600 is one of HANFA’s core products. With its high efficiency and easy assembling capability, it has been widely used mineral exploration, infrastructure construction (i.e. railway, road and bridge, etc.), hydraulic and hydropower project, tunnel exploration and geographical investigation.It works particularly well in areas with complex geographic characteristics such as mountainous region, forest and plateau. It is the ideal drilling rig when operating in hard-to-access areas within a depth of 200 meters, executing small projects, conducting initial investigations and working on tight schedules.

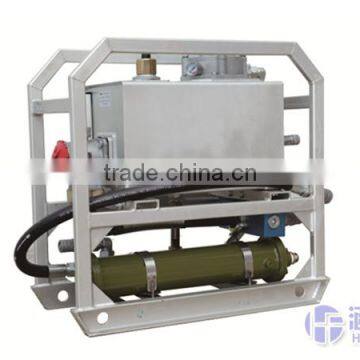

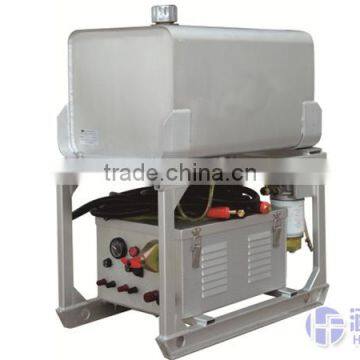

The Hydraulic Fuel Tank

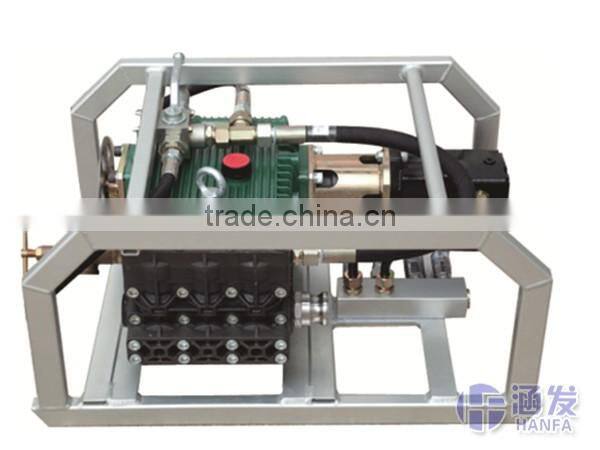

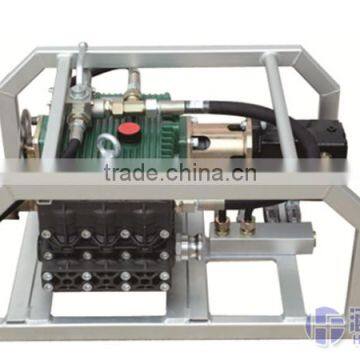

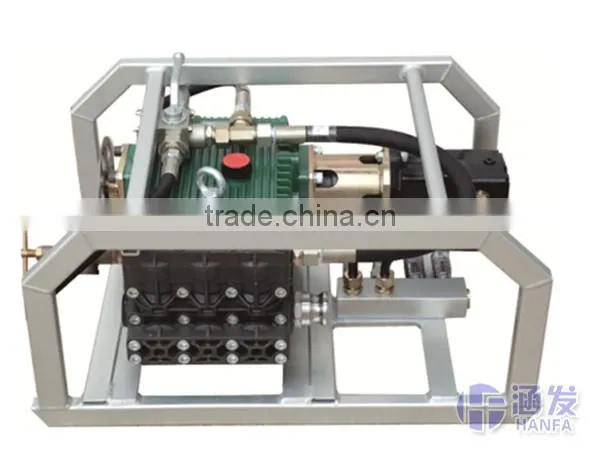

Mud Pump

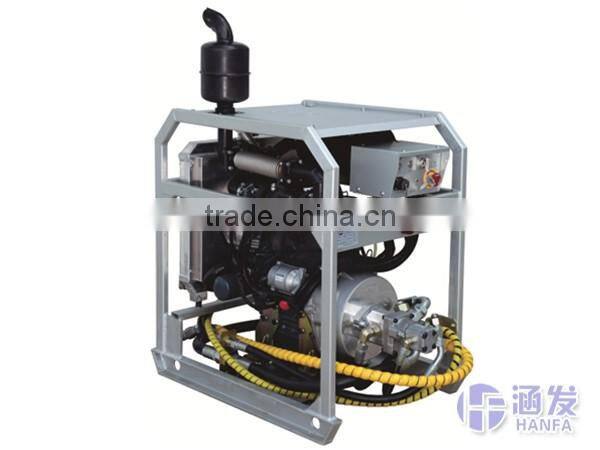

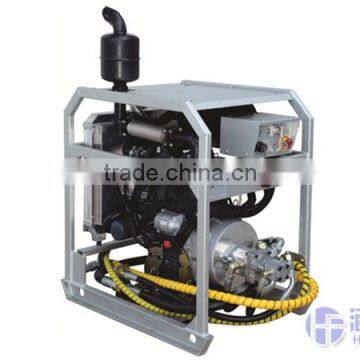

diesel engine

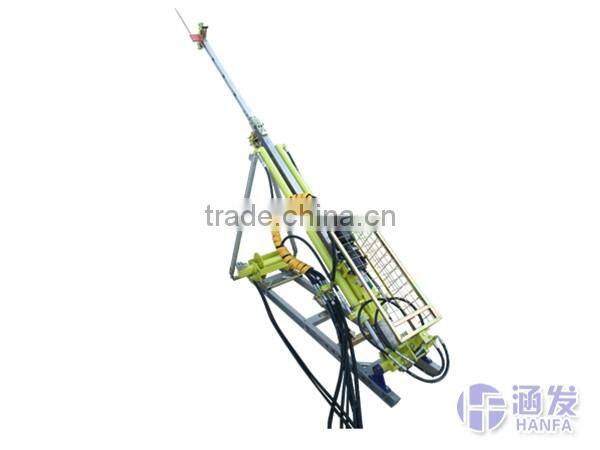

Drilling Derrick
Key Characteristics
1.Easy to access, easy to assemble/disassemble, high efficiency.
2.Light weight and portable.
3.Modulizeddesign with the heaviest module weighing only 180kg, able to be carried by only four persons.
4.Mastsrig with the capability of drilling from an angle of 45 to 90 degree. No tower is needed.
5.Light weight machine with 80% of the framework being made of high-strength aluminum alloy materials.

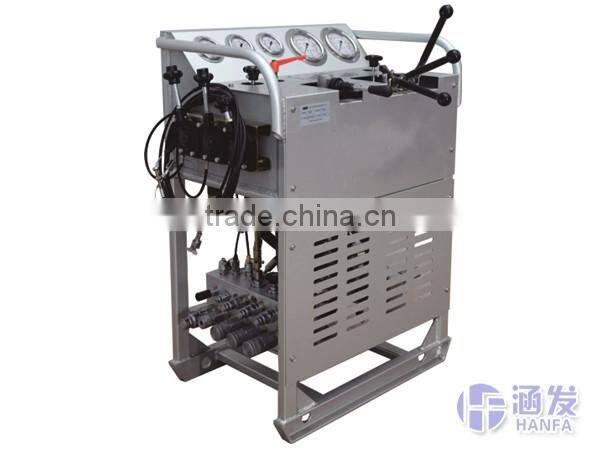

Operating Pannel

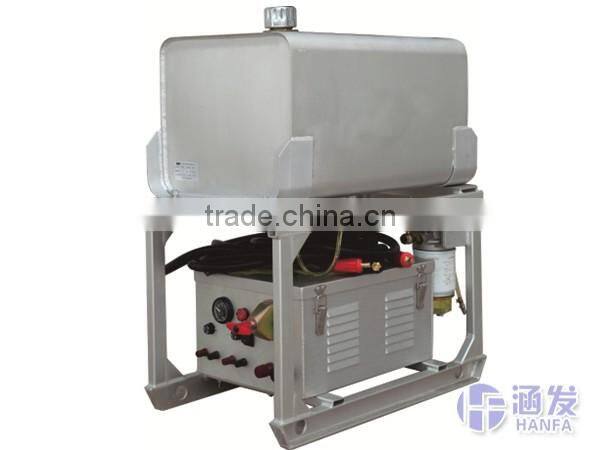

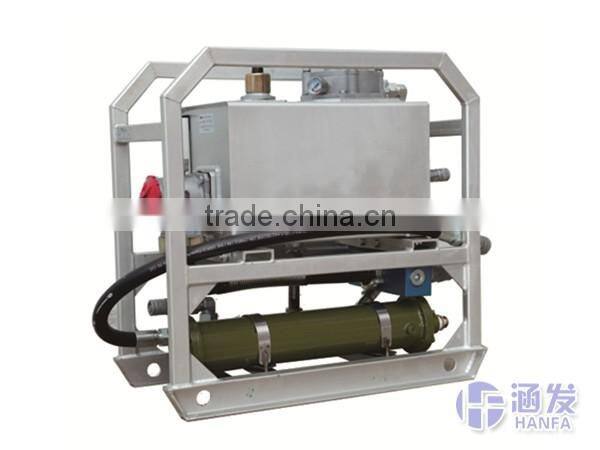

Oil and electricity power supply unit
Fast
Fast transportation – No need for road and infrastructure construction
Fast relocation – Only 2 hours required for the next hole
Fast penetration – 3 timeshigher than vertical rig with a maximum daily penetration of 150
metersand an average daily penetration of 70 meters
Reliable
All key parts are from the global leading brands, powerful,stable and reliable
Integrated hydraulic system with no worries of leakage and malfunction

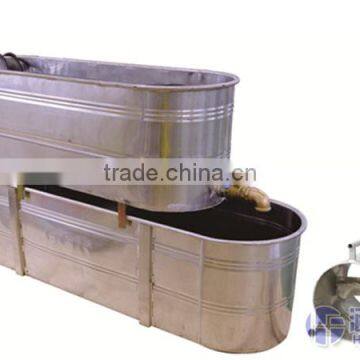

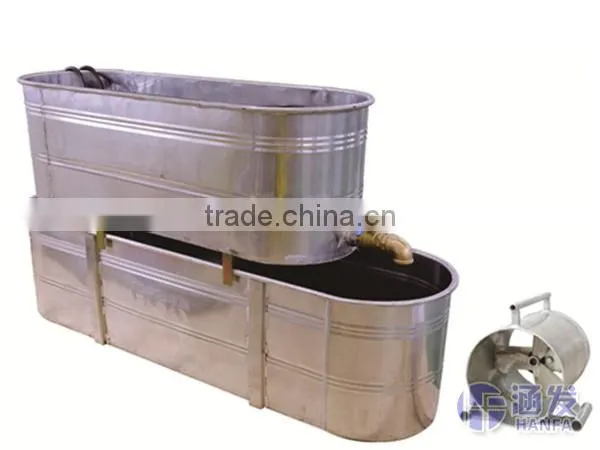

Unique mud system andspecial mud materials to increase drilling efficiency and reduce
Accidents.
| Drilling depth capacity | HQ/NTW/BTW | 100/300/600m |
| Hole Diameter | Rod Length 1.5m | 96/75.7/60mm |
| Core Diameter | 63.5/56/42mm | |
| Power engine | KUBOTA D1105.T, 3×23.5KW/3000RPM | |
| Hydraulic system | American Parker valve,water cooler | |
| Maximum pressure 21Mpa/max,Maxium flow 160L/min | ||
| Top drive rotation head | Maximum torque | 650N.m |
| Maximum rotation speed | 1300rpm | |
| Feed travel | 1.83m | |
| Pull/Thrust | 50KN/30KN(Single cylinder) | |
| Winch | Average speed | 150m/min |
| Lift | 700kg | |
| Were Diameter | 5mm | |
| Were accommodation | 650m | |
| Mast | Height of the mast on 90 degree | 5m |
| Drilling angle | 45º-90º(standard ) | |
| Size and weight | Platform area/Module quantity | 4m×4m/12 piece |
| Gross/Maximum module | 1150kg/180kg |
