Waste Water Grinder From China

Huanchuang(Xiamen) Technology Co., Ltd.
Waste Water Grinder From China thumbnail-1
Waste Water Grinder From China thumbnail-2

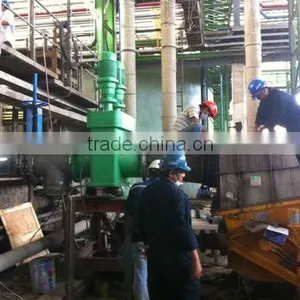

Waste Water Grinder From China thumbnail-3
Waste Water Grinder From China photo-1
Waste Water Grinder From China photo-2

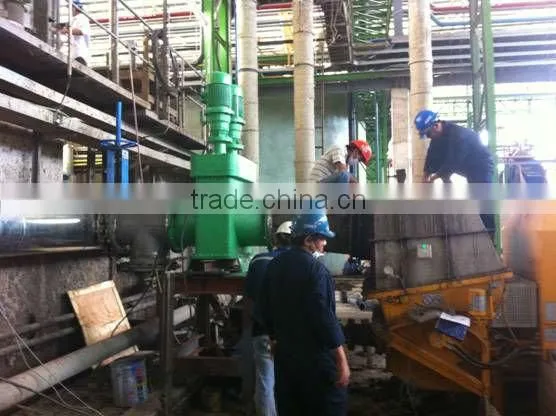

Waste Water Grinder From China photo-3
US$ 10,000 - 60,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
hc
Model Number:
hc
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
XIAMEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name hc
Model Number hc
Type Other, waste water

Operation Principle

1.      Solids enter grinders through open channel.

2.      Solids pass through cutters for size reduction.

3.      Solids are cut into smaller particles and no threat to downstream equipment.

Materials of Construction

Motor: Customized, multiple power options

Reducer: Planet gear reducer, good ability to against the load impact

Cutter and spacer: heat-treated alloy steel 4130 with surface harden evenly.

The hardness is not less than 45~50HRC

Shaft: heat-treated alloy steel 4140

Mechanicals Seals: Tungsten Carbide faces

Housings: Ductile cast iron ASTMA 536

Frame: Stainless steel(304,316)

Mechanical Characteristic

Ease and Flexibility of Installation

Adapts to most existing pipelines with little or no modification

Mechanical Seals

Pressure capability up to 6.3kg/cm2;

No seal flush required and no packing gland to adjust;

High-Flow Side Rails

 Increases flow capacity and decreases head loss

 Directs solids into the cutting chamber

Dual Shaft Design

Low-speed, high torque grinders handle rags, rocks, wood, clothing, plastics and other debris

Capable of handling a wider variety of solids than single shafted machine

Cutter Options

Customized cutters with various tooth configurations to meet special application

Low Profile Bottom end housing

More of the cutting chamber is utilized during low flow

Top Fastening Devices

 Easy to fasten without lifting out of the channel

Control System Function

PLC Control Cabinet with liquid crystal display, real time monitoring loading

 MODBUS standard field bus Communication interface and remote controllable

Time adjustment, runtime and failure records query

Automatic Reversal Function, time and times setting of reversal

Leakage, Over Capacity, Overheating, Short Out and Lack of phase protection functions

 Authority setting function
