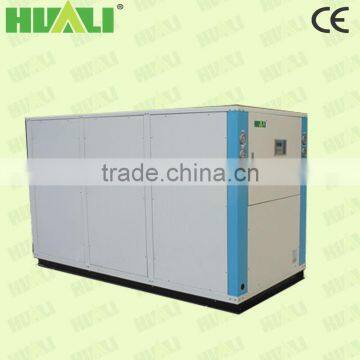

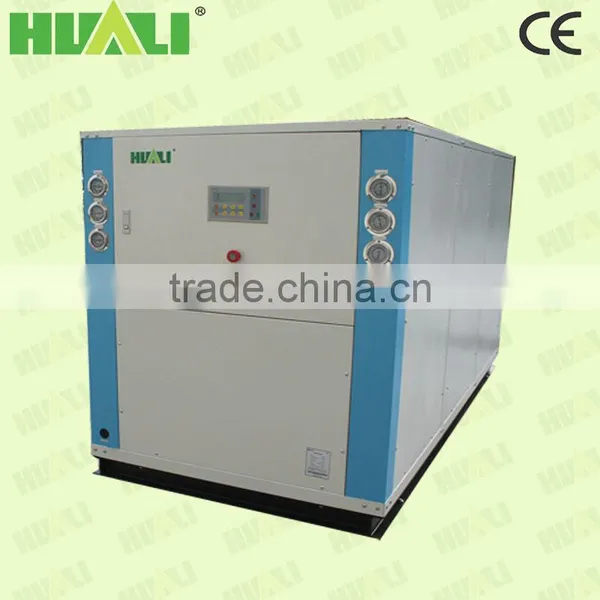

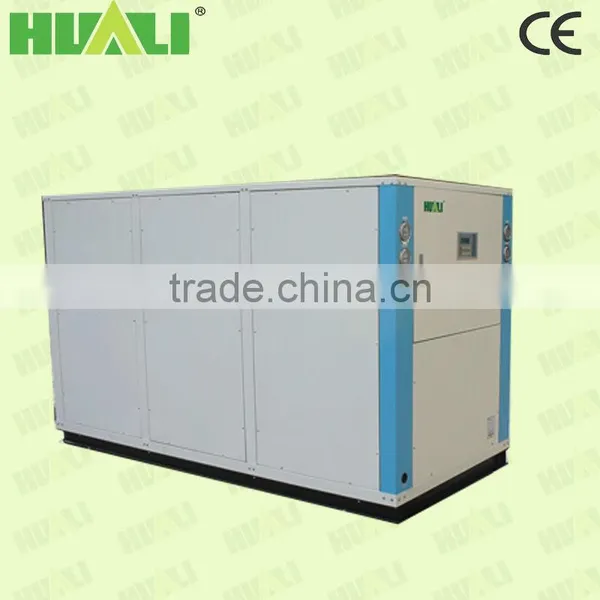

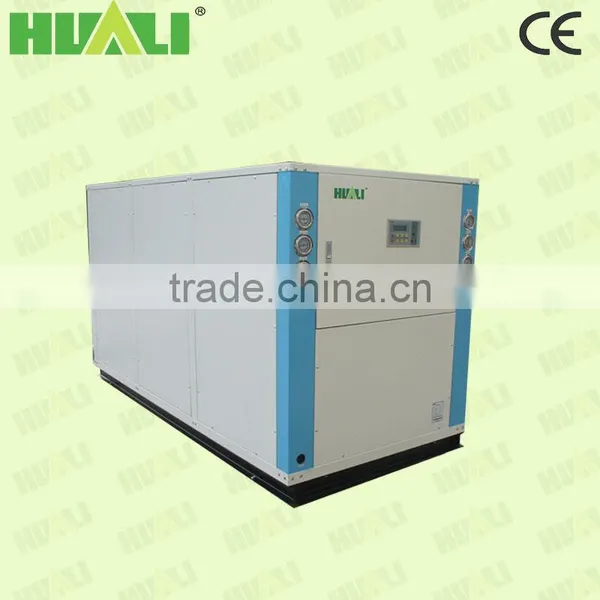

Help CenterHUALI Box Water Chillers / Industrial Water Cooled Water Chiller for Industry Use
Related Products
-
Shell and Tube Type High Effiency High Quality Glycol Water Cooled ChillersUS$ 8,500 - 85,000MOQ: 1 Unit -
HUALI High Performance Modular Water Cooled Used Industrial Water ChillerUS$ 30,000 - 180,000MOQ: 1 Set
-
Huali CE Certificated Food Processing Industrial Cold Water Screw Chiller With Heat RecoveryUS$ 3,000 - 18,000MOQ: 1 Set
-
92~462KW High Efficiency Cheap Water ChillerUS$ 11,000 - 18,000MOQ: 1 Unit
-
Commercial Water Chiller Heat Recovery Air Conditioner Water ChillerUS$ 11,000 - 18,000MOQ: 1 Unit
| Features |
1. The chiller adopt high-quality compressor and Taiwan pump, so it is very safe and noiseless, economical in power and durable
2. Temperature control range 5°C to 35°C,more or less ±1°C
3. The designs of chiller and radiator are unique, so the heat exchange efficiency is very high
4. The chiller is designed to be with current over-load protector, high voltage and low voltage construction and electric time-delay safeguard, when malfunction happened, it could alarm and show the cause of the problem in time
5. This series chiller can customize base on the requirement of acid resistant & acidity-resistant (optional).
6.Standard model: Equiped with water pump and wate tank.
7.Refrigerant is R407C,but R410A,R134A also available.
8.Power and frequency supply:380V,3PH,50HZ. Can customerized 400V,3PH,50HZ/ 380V,3PH,50HZ/ 400V,3PH,60HZ.
9. Rated cooling capacity base: ambient temp. 35°C; water in/outlet 30°C/35°C; inlet/outlet temp. 12°C/7°C, fouling factor:0.088m2 · °C/KW.
10. Chilled water range: 5°C to 20°C; Cooling water range: 20°C to 40°C;
11. Changes of specification for improvement may be without prior notice. |
| Product Application |
Injection Industry Golden chiller can accurately control the temperature of mold which can improve the quality and production rate. Electronic Component Industry Golden chiller can stabilize the molecular structure of electronic component inside. This can improve the FTQ and product time. Machinery Industry Golden chiller can cool down the oil for the machine and stabilize the oil temperature and pressure. It’ll extend the useful life of oil. And it can also improve mechanical lubrication efficiency. Electroplating Industry The temperature of electroplate can be controlled by our chiller. It can improve the density and smooth of electroplate and production efficiency. Food & Drink Processing Industry The temperature of processed food and drink will be too high to be packaged. Golden chiller can cool it down through food grade stainless steel heat exchanger. Air conditioner system Widely used in building air conditioning system, small and medium-sized office, workshop, restaurants, villas and other air conditioning environment |
| Specification |
|
| Product show |
|
| Our Customer |
|
| About our certification |
|
| Company profile |
Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2 with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
|
| Why chose us ? |
|
