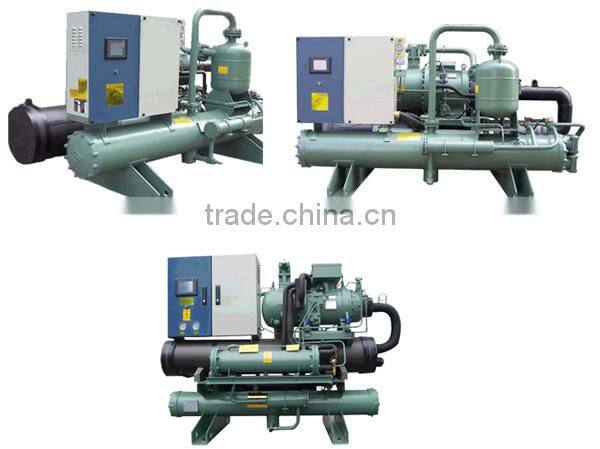

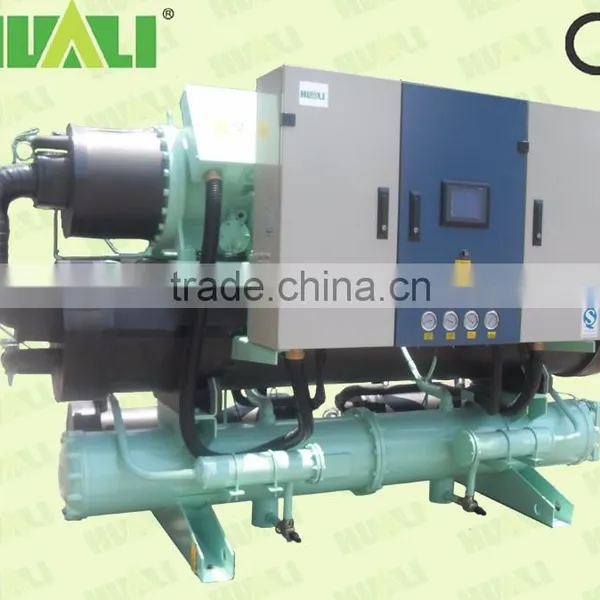

2017 new design safety excellent Screw-type industrial water chiller

1. This type of water cooling chiller are made of superior compressor, so it is exllcellent in quality, noiseless, economical and durable.

2. The evaportors are shell and tube types, which are of excellent performace.

3. The cooling capacity covers a range of 120-2002KW

4. It is compact-sized, with sufficent cooling capacity, and easy to clean.

5. Air cooled Water chiller can be used in various feilds,such as chemical industry, medical industry, industrial processing, food processing industry,etc.

6. All-round safety protection: phase reversion protection, phase lack protection, overload current protection, discharge sir temp. protection, low&high pressure protection , low temp. protection, water flow protection

7. Refrigerant is R407C,R22,but R410A,R134A also available

8. Rated cooling capacity base: chilled water inlet/outlet temp.17 °C /12V

cooling water    inlet/outlet temp. 30°C/35°C, fouling factor:0.088m2 · °C/KW.

Injection Industry

Golden chiller can accurately control the temperature of mold which can improve the quality and production rate.

Electronic Component Industry

Golden chiller can stabilize the molecular structure of electronic component inside. This can improve the FTQ and product time.

Machinery Industry

Golden chiller can cool down the oil for the machine and stabilize the oil temperature and pressure. It’ll extend the useful life of oil. And it can also improve mechanical lubrication efficiency.

Electroplating Industry

The temperature of electroplate can be controlled by our chiller. It can improve the density and smooth of electroplate and production efficiency.

Food & Drink Processing Industry

The temperature of processed food and drink will be too high to be packaged. Golden chiller can cool it down through food grade stainless steel heat exchanger.

Air conditioner system

Widely used in building air conditioning system, small and medium-sized office, workshop, restaurants, villas and other air conditioning environment

1. The chiller adopt high-quality compressor and Italy pump, so it is very safe and noiseless, economical in power and durable.
2. The chiller is deployed with Italy temperature controller, it can control the temperature between 3 and 35 degrees exactly.
3. The designs of chiller and radiator are unique, so the heat exchange efficiency is very high.
4. The chiller is designed to be with current over-load protector, high voltage and low voltage construction and electric time-delay safeguard, when malfunction happened, it could alarm and show the cause of the problem in time.
5. It has stainless steel temperature-holder box, it is very convenience to purify.
6. It is designed to be with anti-phase & lack-phase protector and anti-icy protector.
7. The temperature of ultra cod chiller can be below -15 degrees.
8. This series chiller can customize base on the requirement of acid resistant & acidity-resistant.
9. It has got CE certification.

Safety protection of  water cooling chiller

 1.Phase reversion protection,

 2.Phase lack protection,

 3.Overload current protection,

 4.Discharge sir temp. protection,

 5.Low&high pressure protection ,

 6.Low temp. protection,

 7.Water flow protection
