2017 Injection Machine Industrial Air Cooled Water Chiller

2017 Injection Machine Industrial Air Cooled Water Chiller thumbnail-1
2017 Injection Machine Industrial Air Cooled Water Chiller thumbnail-2
2017 Injection Machine Industrial Air Cooled Water Chiller thumbnail-3
2017 Injection Machine Industrial Air Cooled Water Chiller thumbnail-4
2017 Injection Machine Industrial Air Cooled Water Chiller thumbnail-5
2017 Injection Machine Industrial Air Cooled Water Chiller thumbnail-6
2017 Injection Machine Industrial Air Cooled Water Chiller photo-1
2017 Injection Machine Industrial Air Cooled Water Chiller photo-2
2017 Injection Machine Industrial Air Cooled Water Chiller photo-3

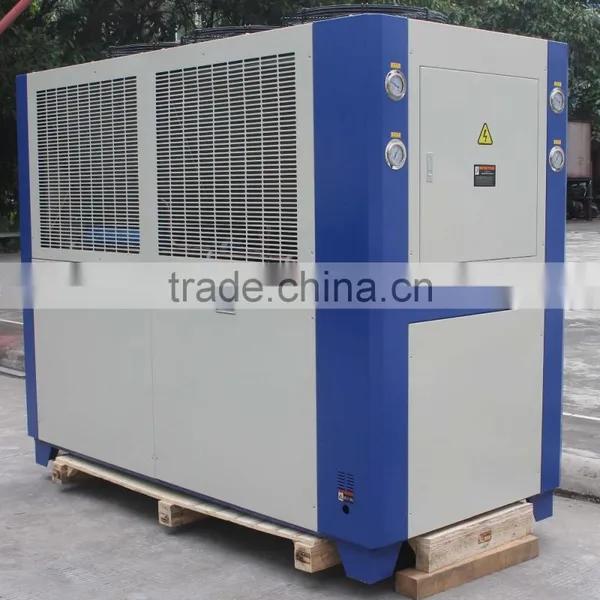

2017 Injection Machine Industrial Air Cooled Water Chiller photo-4
2017 Injection Machine Industrial Air Cooled Water Chiller photo-5
2017 Injection Machine Industrial Air Cooled Water Chiller photo-6
US$ 150 - 15,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Air-Cooled
Place of Origin:
Guangdong, China
Contact Supplier Request Quote Chat Now
Shenzhen Jinhuali Refrigeration Plant Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Air-Cooled
Place of Origin Guangdong, China
Brand Name HUALI
Model Number HLLA-03SI-45TI, HLLA~03SI-45TI
Cooling Capability(kw) 3.02-41.4KW, 9.2-142.2KW
Voltage 380~415V, 380-440V
Dimension(L*W*H) 1300*650*1300 mm
Weight 130~1400KG
Certification CE, CE, ROHS, UL
Warranty 1 Year, 1 year

Injection machine industrial air cooled water chiller



Features

1. Applications:
Electroplating, plastic products, hardware, chemical industry, electronics, food preservation,

laser carving, vacuum coating, ultrasonic cleaning etc industries.

Chiller that uses high effective a easy cleaning stainless steel heat exchanger, exerts its

unique advantage against erosion and filth in electroplating, PCB, oxidization, chemical

Industry,etc weak acid and alkaline conditions.



2. Spare parts introduction:

Packaged -type chiller including water pump and water tank. Client can choose with or without water pump and water tank.

Compressor: Hitachi, Daikin, Danfoss, Copeland, client can choose the compressor

Air cooled type: Shell-and-tube condenser, finned type evaporator.



3. Safety production Device:

Besides the features of tank water-cooled machine set, air blast cooling chiller does not need extra cooling water tower and is easy to install and operate so that it is suitable for small production equipments.
Phase reversion protection, Phase lack protection, overload current protection ,discharge air temp. protection, low &high pressure protection.



4. Function:
Refrigerant:R22/R407c/R134, client can choose the refrigerant/gas.

Cooling only unit/cooling-heating unit ,

1.Adopt the advanced scroll compressor, resistance low temp and high efficiency

2.Electrical configuration adopt high –quality product of the world to ensure that the unit stable quality and reliable operation.

3.Equipped with high-performance low temp freezing pump and stainless steel water tank

4.adopt the glycol antifreeze as the cooling agent, freezing water temp can be controlled at -25 degrees Celsius.

5.customer may request calcium chloride as an antifreeze.

Specification
  Model  HLLA ~ 03SI 05SI 08SI 10SI 12.5SI 15SI 20DI 25DI 30DI 40TI 45TI
Rated Cooling Capacity ×1000 kcal/h 7.9 12.8 20.8 27.9 32.3 40.8 55.7 64.7 81.5 97.0 122.3
KW 9.2 14.9 24.2 32.4 37.6 47.4 64.8 75.2 94.8 112.8 142.2
Input Power (KW) 3.85 5.55 8.15 10.4 12.0 16.0 20.1 22.5 31.2 33.7 45.7
Comp. Input Power×Qty.  (KW) 2.6 4.3 6.35 8.1 9.3 12.5 8.1×2 9.3×2 12.5×2 9.3×3 12.5×3
 Chilled Water Pump Power  (KW) 0.75 0.75 1.1 1.1 1.5 1.5 1.5 1.5 2.2 2.2 2.2
 Comp. Current (A) 6.8 10.5 14 17.5 20 25.6 33.8 37.2 49.8 55.8 72.6
Power Supply 3φ-380V-50HZ
 Number of Refrigeration Circuit 1 2 3
 Capacity Control (%) 0, 100 0, 50, 100 0, 33, 66, 100
 Refrigerant R22
 Condenser Ripple Aluminum Fins around Cooper Pipe
 Power lnput of Fan (KW) 0.5 0.5 0.7 1.2 1.2 2.0 2.4 2.4 4.0 3.6 6.0
 Evaporator   Pipe Coil Type
 Water Side Max Pressure (MPa) - 1
 Dia.of Pipe to Evaporator (inch) 1" 1-1/2" 2" 2-1/2"
 Chilled Water Flow (L/m) 26.4 42.7 69.4 92.9 107.8 135.9 172.0 194.8 272.2 292.2 408.3
 Evaporator Water Pressure drop (kPa) - 17 23 28 30 28 28 32 32 31
 Running Noise dB(A) 72 72 73 75 75 75 75 75 75 75 75
 Tank Volume (L) 50 70 120 200 200 270 350 350 420 510 510
 Total weight (Kg) 130 170 430 480 510 560 840 880 980 1130 1280



Pictures

2017 Injection machine industrial air cooled water chiller2017 Injection machine industrial air cooled water chiller2017 Injection machine industrial air cooled water chiller

Our Customer

2017 Injection machine industrial air cooled water chiller

About our certification

2017 Injection machine industrial air cooled water chiller

Company profile

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.



2017 Injection machine industrial air cooled water chiller
