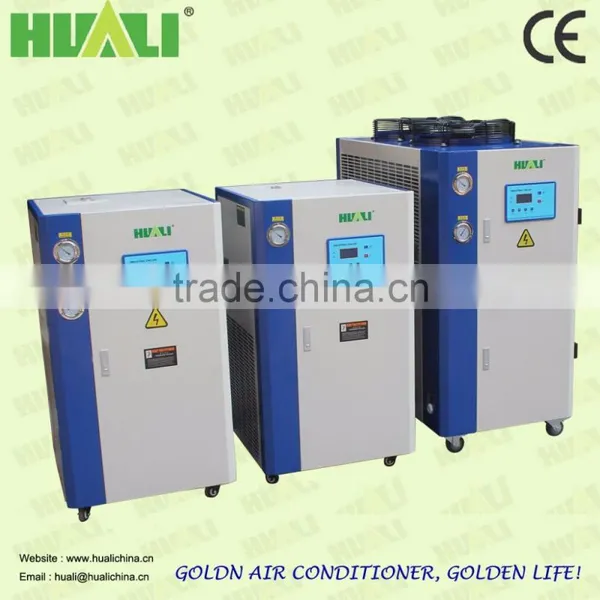

Shenzhen Huali 3.02-41.4KW air cooler water chiller

1. Applications:
Electroplating, plastic products, hardware, chemical industry, electronics, food preservation,

laser carving, vacuum coating, ultrasonic cleaning etc industries.

Chiller that uses high effective a easy cleaning stainless steel heat exchanger, exerts its

unique advantage against erosion and filth in electroplating, PCB, oxidization, chemical

Industry,etc weak acid and alkaline conditions.

2. Spare parts introduction:

Packaged -type chiller including water pump and water tank. Client can choose with or without water pump and water tank.

Compressor: Hitachi, Daikin, Danfoss, Copeland, client can choose the compressor

Air cooled type: Shell-and-tube condenser, finned type evaporator.

3. Safety production Device:

Besides the features of tank water-cooled machine set, air blast cooling chiller does not need extra cooling water tower and is easy to install and operate so that it is suitable for small production equipments.
Phase reversion protection, Phase lack protection, overload current protection ,discharge air temp. protection, low &high pressure protection.

4. Function:
Refrigerant:R22/R407c/R134, client can choose the refrigerant/gas.

Cooling only unit/cooling-heating unit ,

1.Adopt the advanced scroll compressor, resistance low temp and high efficiency

2.Electrical configuration adopt high –quality product of the world to ensure that the unit stable quality and reliable operation.

3.Equipped with high-performance low temp freezing pump and stainless steel water tank

4.adopt the glycol antifreeze as the cooling agent, freezing water temp can be controlled at -25 degrees Celsius.

5.customer may request calcium chloride as an antifreeze.

Shenzhen Jinhuali Technology Co.,Ltd. is a modern large enterprise, which integrates technology, industry and trade. It is a professional enterprise that provides central A/C, refrigeration plant, eletromechanical device, electric equipment and electronics, as engineering design and installation service. HUALI takes an area of over 100,000m2  with an asset of more than 100 millions and empolyee of more than 500 persons, and its has 5 branch companies in the rest of China.
