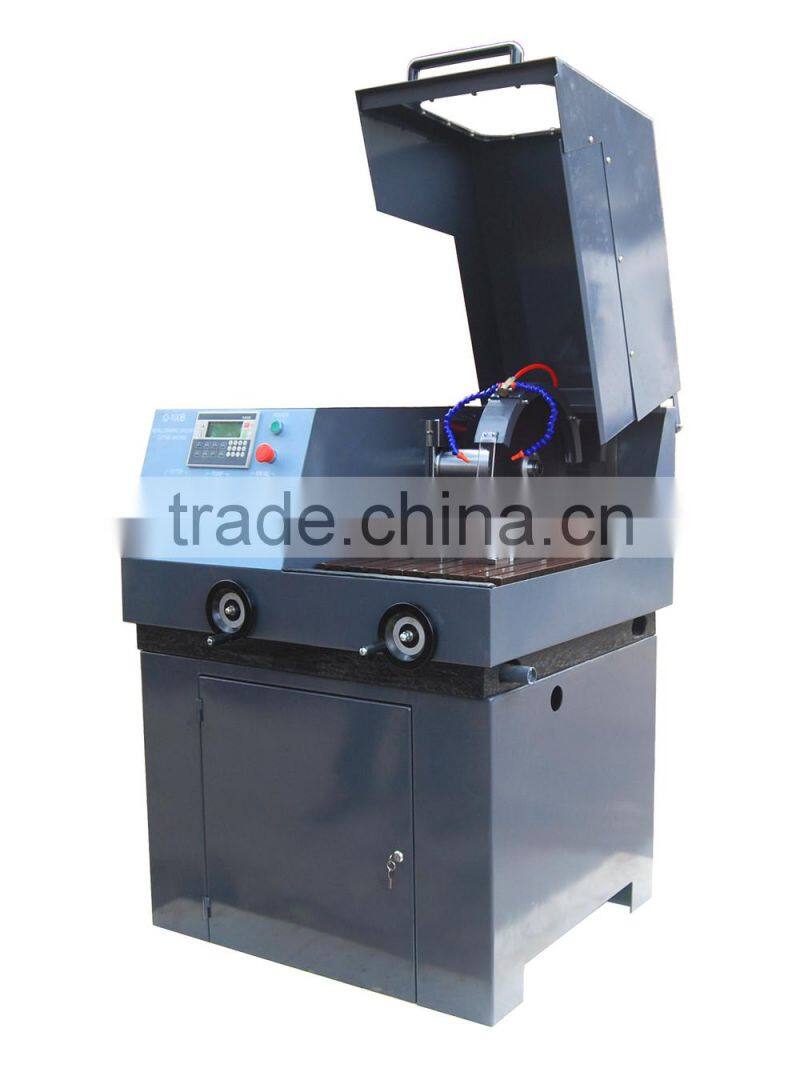

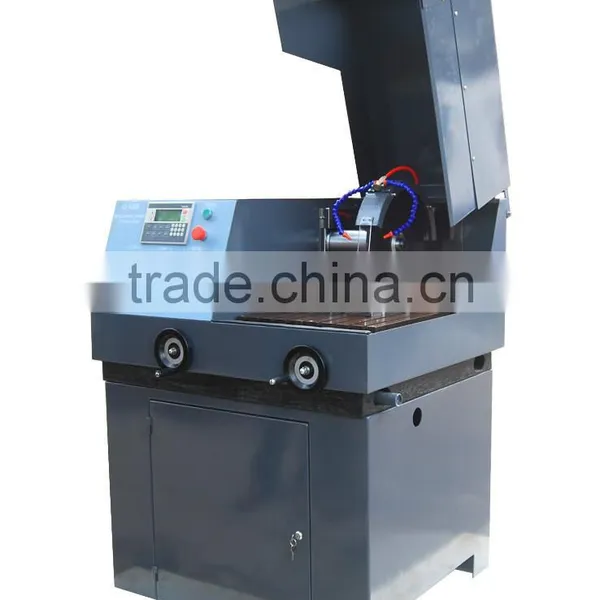

LQ-120Z Metallographic sample cutting machine
LQ-100B Metallographic sample cutting machine (Upright) is used to cut various metal and non-metal specimen so as to observe the material organization of metallographic and lithofacies. This machine is with manual and automatic together, it can be changed to manual or automatic arbitrarily. Under automatic operation, no need person to operate. Super-large worktable and
super-length cutting distance, it could cut the big specimen. With up-down moving function, it will reduce the consumption of grinding wheel. With cooling device, it would take away the heat using the cooling liquid so as to avoid over heat to damage the specimen organization. The advantage of this machine: easy to use, safe and reliable, it is one of necessary equipment for the factories,
esearch unit, universities and colleges.
LQ-120Z Cutting machine main technical parameters
1.Power supply: three phase four wire (380V,50HZ)
2.Spindle speed: 2300rpm
3.Grinding wheel: 350×2.5×32mm
4.Max cutting diameter: 120mm
5.Motor: 3.0KW
6. Auto feeding speed range: 0-180mm/min
7. Up-down moving range: 0-50mm
8. Front-back moving range: 0-340mm
9. Matched quick clamps
10. With two kinds of cutting ways: batch-type cutting and continuous cutting
Please feel free to contact us if you are interested in our products, we will offer the top quality and best service for you. thank you very much!
