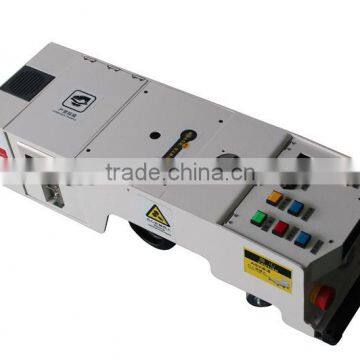

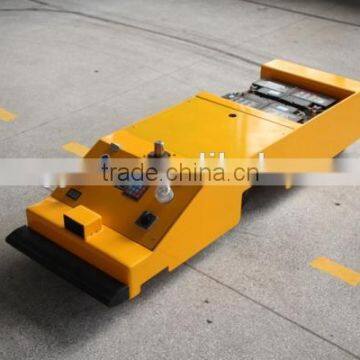

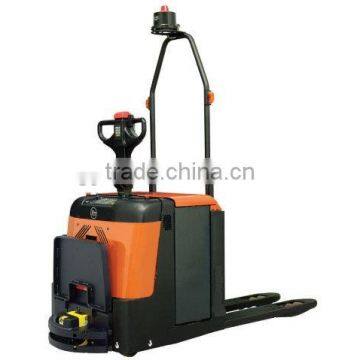

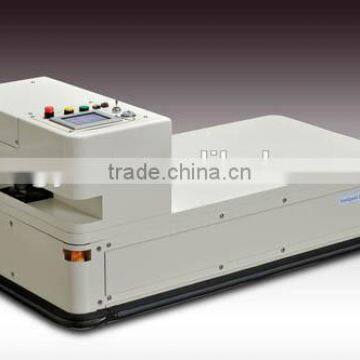

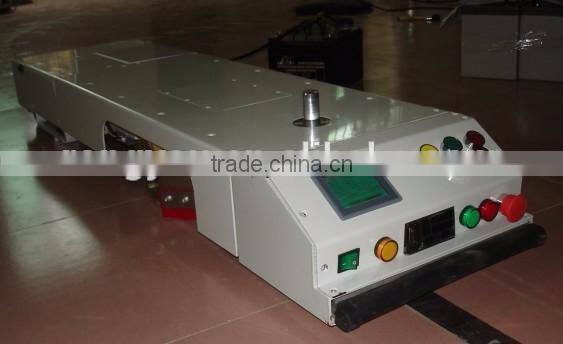

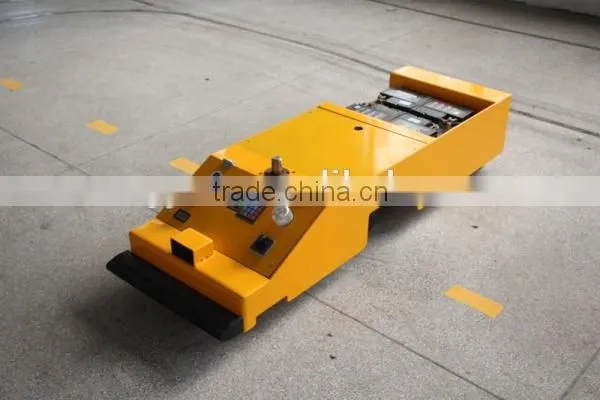

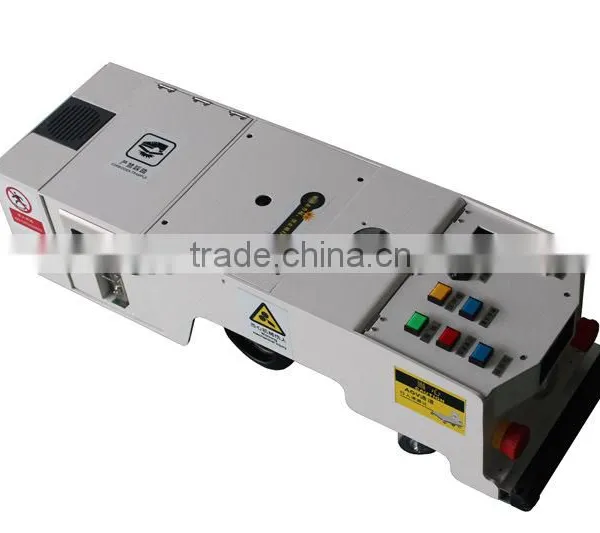

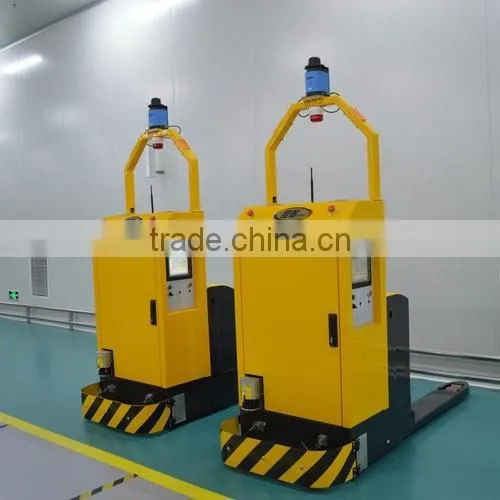

Superior performance AGV
Anthropomorphic navigation is using CCD camera pavement images, using machine vision technology to identify the path, realize the automatic navigation of a new navigation method, the camera acquisition of digital image, through comparison and study, and then use the image morphological knowledge, the path to the image edge detection, and can determine the location of the center line of the path.
Moving Way | Straight Line, Left /Right Bifurcation or Arc Line |
Moving Directions | Unidirectional or Bidirectional |
Means Of Communication | Zigbee or Wifi |
Driving Mode | Dual-motor Differential Operation |
Carrying Capacity | 500 KG ~10 Tons |
Carrying Capacity (time) | 8-10 Hours |
Navigation Accuracy | ±10mm |
Manner of working | Manual operation if there is no magnetic tape. Automatic running provided that there is magnetic tape. No magnetic tape tracking under automatic operation is available. Relative address automatic control. |
Climbing Capacity | For more than 70% of carrying capacity, the maximum gradient is 2% ( continuous within 5 meters).
For less than 70% of carrying capacity, the maximum gradient is 3% ( continuous within 5 meters). |
Stop Precision | ±10MM ( under brake. The braking length vary based on different conditions.) |
Charge Methods | Manual |
Safety Induction Scope | Laser: 180° Infrared: 120° |
Alarm Form | Alarm Form |
Storage Battery | Lead-acid Traction: 24V70AH Lithium Iron Phosphate: 24V40AH-60AH |
Safety protection | Long Distance: Laser Obstacle Sensor or Infrared Obstacle Senor Short Distance: Rubber Anti-collision Bumper Bar |
Designed Life span | 10 years |
Your Satisfaction Is Our Unremitting Pursuit
Payment and service
- Normal payment : T/T ,L/C, Wester union.
- Normal package : plastic and cartons
- Service 1 : provide FOB , CFR , CIF price and the CBM for your shipment.
- Service 2: Provide you design for your warehouse and other logistic equipment.
- Sercive 3 : Provide free sample parts and factory open for your visiting.
- Sercive 4 : Provide aftersale service, listen to your feedback
- Service 5 : SGS/BV/CNCA/CIQ /CO applyment for customer
Pre-sale service
o customers. We promise that we'll be responsible all the way to the end once our services begin.
Basic Information
1) What's your adventage?
Honest business with competitive price and professional service on export process.
2) What is your minimum order requirement?
The biggest order we received was 30sets while the smallest order we got was parts .
3) How I believe you?
We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
4) Can you supply sample for me to check?
Yes, we will provide sample for free.
5) How can I know how my order is being done?
We will inspect and test all items in order to avoid damage and missing parts before shipping. The detailed inspection pictures of the order will be sent to you for your confirmation before delivery.
6) Can you give warranty of your products?
Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service. For the overseas orders, we guarantee most accessories. Provided emails with details including pictures or short video, we will send guide manual or replacements at our cost to repair.
7) Where are you? Can I visit you?
Sure, we are in Shijiazhuang city, Hebei Province, 280km distance to Beijing. There are many flights from Shanghai, Guangzhou to our city. Please contact us to make an appointment.
ADD: RM.1116-1117,Yihong Building,No.298 North Zhonghua Street,Shijiazhuang,China.
TEL:+86-311-85021376;+8613932118373
FAX:+86-311-85021373
SKYPE:kenword86
Welcome to contact us for detailed consultation.Thank you!
