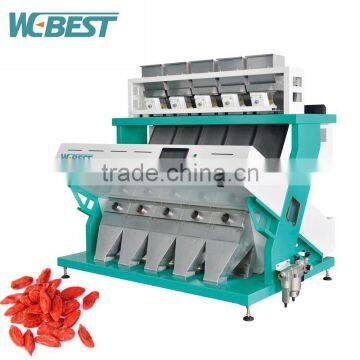

CCD Wolfberry Color Sorter Machine,Get Highly Praise By Customer
- 1200 Unit / Units per Month
- Shanghai China
- T/T D/P D/A Credit Card
You May Like
-
Big Capacity Wolfberry / Medlar Color Sorter Food Processing Machine
-
Good Performance LED White Kidney Bean Cereal Color Sorter Machine
-
Factory Direct Supply White Kidney Bean Nut Color Sorter Machine
-
High Efficiency CCD White Kidney Bean Color Sorter Machine Grain Color Sorter
-
China Manufacturer White Kidney Bean Color Sorting Machine
-
Digital wolfberry color separation machine in China
Product Details
Place of Origin | Anhui, China | Brand Name | WEBEST | |
Model Number | 6SXZ-320 | Type | Grain Processing Equipment | |
After-sales Service Provided | Engineers available to service machinery overseas |
Product Description
1. Image processing system and algorithm
DSP+FPGA international leading processing technology, multi-modes complex algorithm combining color and space, providing “color sorting + shape selecting” function for different materials, free setting of multiple modes, arbitrary selection of thousands of materials.
2. Camera image acquisition system
Imported high precision camera lens, guarantee the accuracy of the image is clear.
Imported high-precision 2048-pixel high-speed linear CCD for high resolution identification and high speed color sorting.
3. Unique self-ejecting nozzle and valve drive mode
Applying specialized high speed air valve with high action response frequency, low power consumption and longer service life.
Reducing air consumption with faster response speed, more accurate striking, small carryover and large output.
4. Feeding system
Use the advanced feed detection system, Assure the uniformity of material flow.
5. Chute
Different slide ways are selected for different color sorting materials, to ensure that materials slide down more uniformly and the carryover is reduced.
6. Light source system
Leading LED optical design system, a variety of light sources can be selected to suit the different materials.
Solve the problems like high temperature, large loss, and short life etc, caused by long-term use of light source, to ensure that LED light source is durable under constant temperature.
CCD color sorter technical Parameter
Model | Z2-128 | Z3-192 | Z4-256 | Z5-320 |
Output(t/h) | 0.5-2 | 1.0-4.0 | 1.5-5.0 | 2.0-6.0 |
Sorting Accuarcy(%) | ≥99 | ≥99 | ≥99 | ≥99 |
Carryover Rate (Bad:Good) | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 |
Wegiht(kg) | 600 | 700 | 800 | 900 |
Resolution(mm²) | 0.04 | 0.04 | 0.04 | 0.04 |
Power(kw) | 1.5 | 2 | 2.5 | 3 |
DimensionLxWxH(mmxmmxmm) | 1370x1650x2010 | 1684x1650x2010 | 1998x1650x2010 | 2312x1650x2010 |
Power Supply(V/Hz) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) |
Model | Z6-384 | Z7-448 | Z10-640 | Z12-768 |
Output(t/h) | 2.5-7.0 | 3.0-8.0 | 4.5-11 | 6-13 |
Sorting Accuarcy(%) | ≥99 | ≥99 | ≥99 | ≥99 |
Carryover Rate (Bad:Good) | ≥8:1 | ≥8:1 | ≥8:1 | ≥8:1 |
Weght(kg) | 1000 | 1100 | 1400 | 1600 |
Resolution(mm²) | 0.04 | 0.04 | 0.04 | 0.04 |
Power(kw) | 4 | 4.5 | 6 | 8 |
DimensionLxWxH(mmxmmxmm) | 2626x1650x2010 | 2930x1650x2010 | 2930x1650x2024 | 2930x1650x2024 |
Power Supply(V/Hz) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) | 220/50(110/60) |
1.The above data is based on the 3% contamination, and real output depends on the material and its contamination.
2.If products update, no further notice. Please refer to the real machine.
Advantage :
1. More high-end 4096 IPIEX CCD camera, can distingush flaw which are less than 0.04 mm², glasses and resin etc, increase sorting impression to a higher level.
2. Scientific and resonable optics-design, more clear for light yellow, distinguish wider rang.
3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended the life of machine.
4. More intelligent software, can distingush all kinds of heterochrosis grain easily and totally improved the accuracy of selection.
5. Humanization ture colour screen, visual effect is more clear, operation is more easiler.
6. Professinal high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy.
1. How about engineers service oversea?
Engineers available to service machinery overseas.
2. How to use the machine?
We will supply customer the installation catalog or video online.
We will ask our engineer to teach you, how to use when he go to your country to debug the machine.
3. How about the sample machines for testing?
Sample sending for testing is welcomed.
Or you send these three photos,the raw material,good material (which is you want) ,bad material (which is you want to
discard). we send our video to you.
4. How about the guarantee period?
One year.
5. Will you accept L/C as payment?
L/C ,T/T is OK .
Alibaba Trade Assurance is your best choice.
6.Do you have any other spare parts for the customer?
Yes,we will supply you some spare parts .
7.Which machine will work together with our color sorter which you can supply?
Air compressor ,Air tank ,Air filters,Air dryer , light sources, cleaning brushes, etc.
1.We show our presence in China and around the globe.
2.We adhere to the principle of Customer priority, encourage employees to care about customer demand, and provide solutions for both domestic and overseas customer.
3.We have over 30 after-sale service staff, with our service penetrating to prefecture-level city, and provide 24h door-to-door prompt and thoughtful service for customers.
4.We provide customer with one year free repair and maintenance for complete machine, and prompt professional training and technical guidance, which fully embodies our service mode featuring fast response, timely maintenance and follow-up coordination.
Service commitment: One year free repair and maintenance for complete machine, 24h door-to-door fast response, 7x24h consultation service,
Establish user file for follow-up service.
1. Plywood case for each color sorter.
2. we will arrange the shipment as soon as possible, Gernearally speaking ,we will arrange the shipment in 15 days after we receive the deposit.
Please provide the following needed information when sending the inquiries:
1. What kinds of material do you want to sort?
2. How much is your throughput?
3. Which country will the machine be used in?
