RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine

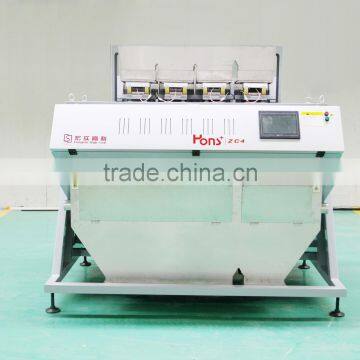

RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine thumbnail-1

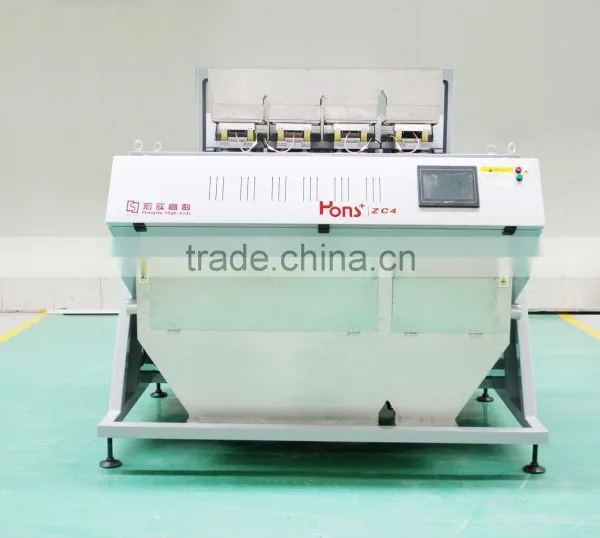

RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HONGSHI
Contact Supplier Request Quote Chat Now
Anhui Hongshi Optoelectronic High-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name HONGSHI
Model Number peanuts sorting machine
Production Capacity 100%
Voltage 220v
Power(W) 2.5kw
Weight 1000kg, 820kg
Dimension(L*W*H) 1245x2145x1542
Certification iso
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas







1. Mpored high-end 5000+ IPIEX CCD camera, can distingush infinitesimailspots which are less than 0.06mm2, glasses and resin etc, increase sorting impression to a higher level.

RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine


2. Scientific and resonable optocs-design, more clear for light yellow, distinguish wider rang.

RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine



3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended te life of machine.

RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine


4. More intelligent software, can distingush all kinds of heterochrosis grain easily and totally improved the accuracy of selection.

RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine


5. Humanization ture colour screen, visual effect is more clear, operation is more easiler.

RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine


6. Professinal high frequency ejectors, save more air, reaction velocity is more quick, rate of accuracy is higher, and longer life, working with intelligent software, ensure the good rejection and excellent accuracy

RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine
7. All main parts are coming from importing.



8. Outstanding Cooling way to ensure machine run smoothly.



9. Strong salesafter sevice team beef up all sides sevice of Hongshi Group.



10. Convenient payment item to satisfy customer's requirment.







RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine





Technical Specifications 4R(252channels) 5R(315Channels) 6R(378Channels)
Model 6SXHS-ZD4 6SXHS-315 6SXHS-ZD6
Production Capacity(/H) 2-5ton 3-7ton 4-10ton
Sorting Accuracy 99.9% 99.9% 99.9%
Rejecting Rate(Bad:good) 10:1-20:1 10:1-20:1 10:1-20:1
Total weight 1000KG(±5%) 1100KG(±5%)
Host power(kw) ≤2.7 ≤3.1
Air Consumption(m³/min) 1.8 3
Air compressor power 11kw*2 11kw*2
Air pressure 0.6-0.8MPa 0.6-0.8MPa
Power supply (Voltage/HZ) AC220V/50HZ AC220V/50HZ AC220V/50HZ
Outline Dimension 2121*1582*2034 MM 2212*1455*1857 MM
Cooling Modle Wind cooling Wind cooling Wind cooling
Ejectors 252 315 378
Cameras 2048 Black&White 2048 Black&White 2048 Black&White
Control Chip USA USA USA



 RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine





 7. spec.





model 6SXHS-ZA6CCD
channels 84
capacity 2~3.5t/h
accuracy 99~99.9%
optimal carryover 6:1~20:1
voltage AC220V/50Hz
power 2.2Kw
pressure 1.0Mpa
consumption 1.8m³/min
weight 960Kg
air compressure power 7.5*2
air tank capacity 500L
dimension 2000*1577*1844



RGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting MachineRGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting MachineRGB Camera Accuracy Less Problem Big Capacity Peanuts Color Sorting Machine
