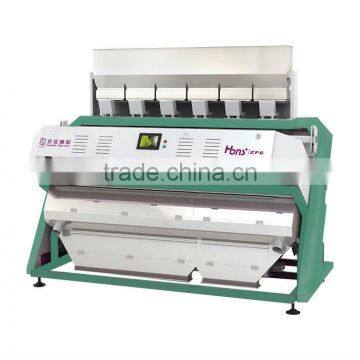

Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine

Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine thumbnail-1
Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Anhui, China
Brand Name:
HONGSHI HI TECH
Contact Supplier Request Quote Chat Now
Anhui Hongshi Optoelectronic High-Tech Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Anhui, China
Brand Name HONGSHI HI TECH
Model Number peanuts sorting machine za6
Production Capacity 100%
Voltage 220v
Power(W) 2.5kw
Weight 1000kg, 820kg
Dimension(L*W*H) 1245x2145x1542
Certification iso
Warranty 1 year
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Peanuts sorting machine
1.2048 pixel CCD camera
2.High speed ejector valves.
3.Good stability
4.Competive price.







Advantage for HONGSHI peanuts color sorter machine:


1. Mpored high-end 5432IPIEX CCD camera, can distingush infinitesimailspots which are less than 0.06mm2, glasses and resin etc, increase sorting impression to a higher level.

Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine


2. Scientific and resonable optocs-design, more clear for light yellow, distinguish wider rang.

Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine



3. Reasonable heat output device, ensure all spare parts be working in the room tepurature, SNR is better, not only increased the accuracy of sorting, but also extended te life of machine.

Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine


4. More intelligent software, can distingush all kinds of heterochrosis grain easily and totally improved the accuracy of selection.

Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine


5. Many certificate to ensure quality

Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine




 6. 100% satisfiedfeedback from customer

*Seperate discolored,contamination,darker peanuts
*High-tech peanuts color selecting machine which is stable and easy operate

China Professional Color Sorter Manufacturer!

Welcome to visit our company!!!





Technical Parameters

Model

6SXHS-ZA6

Main purpose

*sort discolored beans from good ones

*remove foreign impurities in raw materials

Channels

84

Capacity

2~3.5 t/h

Accuracy

99%~99.9%

Ejection rate

(defective ones:good ones)

6:1~20:1

Voltage

AC220V/50Hz

Power

2.2Kw

Gas source

Exhaust pressure: 1.0MPa

Displacement: 1.8m³/min

Air compressor power

7.5*2Kw

Air tack capacity

500L

Weight

960Kg

Size(L*W*H/mm)

2000*1577*1844

Certification

ISO9001



Payment terms:

Accepted L/C at sight or 30%T/T as deposit,

the balance 70% wl be paid upon receipt of B/L copy



Delivery time:

about 30 days after receiving the deposit .

Nearest port: Shanghai



After-sales service:

1.Warranty: one year free maintenance, and all parts will be charged for free under warranty.

2.Hongshi Hi-tech provide a full testing, installation, commissioning, spare parts, service and training programme.



Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine



Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine

Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine



Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine



Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine



Bio Chromatic Big Capacity High Accuracy Peanuts Color Sorting Machine







Any questions,pls feel free contact with me. Thank you for visiting!!!











 7. spec.





model 6SXHS-ZA6CCD
channels 84
capacity 2~3.5t/h
accuracy 99~99.9%
optimal carryover 6:1~20:1
voltage AC220V/50Hz
power 2.2Kw
pressure 1.0Mpa
consumption 1.8m³/min
weight 960Kg
air compressure power 7.5*2
air tank capacity 500L
dimension 2000*1577*1844
