Specifications
(1) applied in steel industry(2) hydraulic system
(3) high precision
(4 ) high speed
1.Technical Parameters:
Shearing Speed |
30--180m/min |
Chuck Diameter |
350--400 |
Chuck Opening Degree |
700--1350mm |
Blade Thickness |
35--40mm |
Blade Material |
6CrW2si |
Blade Shaft Material |
42CrMo |
Shearing Variables |
Min 5mm Max 35mm(unilateral) Max 35mm(unilateral) |
Shearing Steel Strip Thickness |
1.5--5mm |
Blade Overlap Ajustment Precision |
±0.03mm
|
Blade Clearance Adjustment Precision |
±0.005mm |

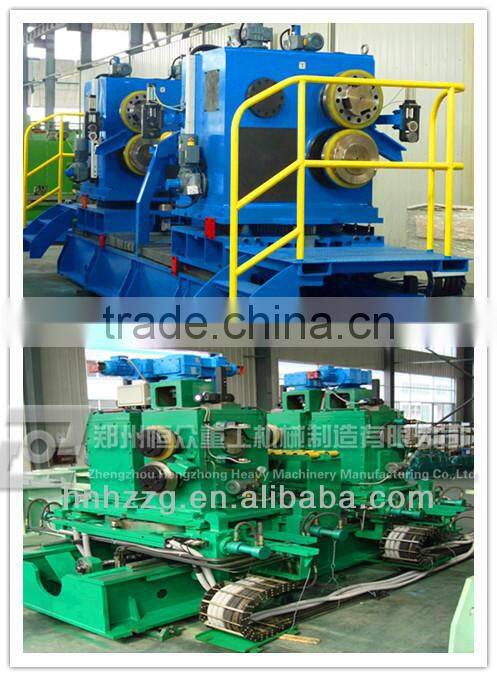

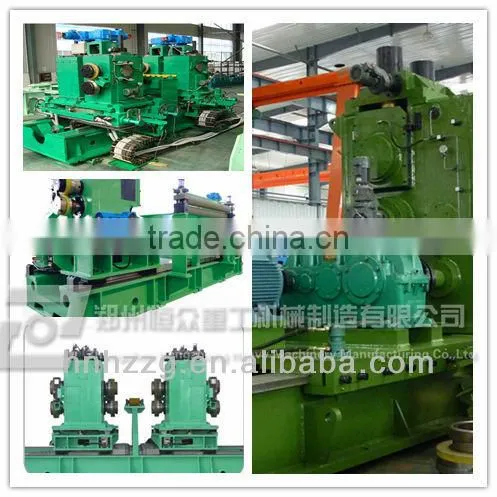

2.Rotary Shear Units:
Specifications and models |
thickness |
width |
Coil weight |
Finished products width |
Shearing number |
Shearing speed |
2X1600 |
0.3-2mm |
900-1550mm |
30T |
≥40mm |
≤20 |
60m/min |
4X1600 |
0.5-4mm |
900-1550mm |
30T |
≥60mm |
≤13 |
50m/min |
6X1600 |
1-6mm |
900-1550mm |
30T |
≥60mm |
≤10 |
40m/min |
8X1800 |
2-8mm |
900-1800mm |
30T |
≥70mm |
≤6 |
30m/min |
10X2000 |
3-10mm |
900-2000mm |
30T |
≥80mm |
≤5 |
25m/min |
12X2000 |
3-12mm |
900-2000mm |
30T |
≥100mm |
≤5 |
20m/min |
Standard exporting package and can do the package according to the different reuirements.

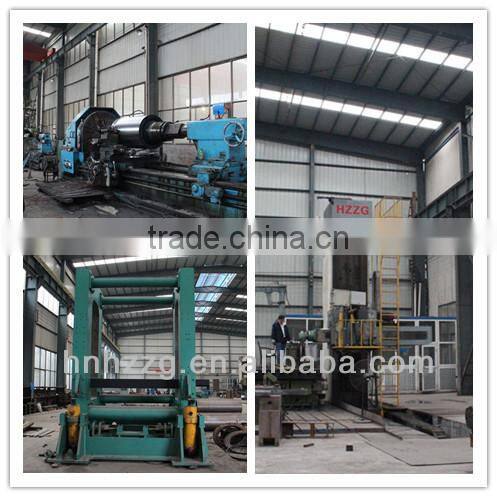

It is an aluminum processing equipment which integrates design, manufacture and installation, we have strong technical force , advanced high-end research and production capacity and excellent after -sale service. we promise one year warranty and the engineer in the overseas are available .
Our concrete products include such as the aluminum casting mill, cold rolling mill, foil rolling mill, cleaning line, cut-tolength line , tension leverer and slitter, cast roll and cast roller.
Should any of our concrete products be of your interest, please feel free to contact me, I am ready to provide you any information that you concern. I am looking forward to establishing long term business relationship with you!
