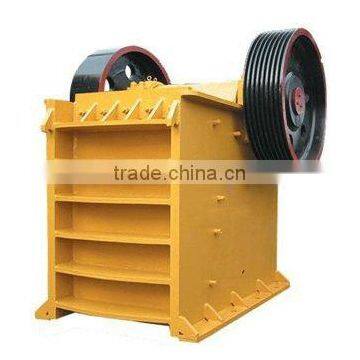

Copper ore jaw crusher

Specifications

1.it is used for copper,gold,lead,silver,coal,iron ore and so on.
2.capacity is adjustable.
3.take fine processing method

1. Brief introduction of jaw crusher:

Jaw Crusher is one of main equipment of stone crushing is ideally suitable for crushing all kinds of ores and crushing the big size materials, the highest anti-pressure strength of crushed material is 320 MPA, having two types: primary crushing and secondary crushing. Jaw crusher has been sold to 80 countries, the price and quality of jaw crusher is widely recognized, we always stick to be your satisfying partner.

2. Features of PE series jaw crusher:

  PE series jaw crusher has big reduction ratio, equal product granularity, low power consumption and convenient maintenance. It is perfect equipment for crushing ores and rocks in medium and small mine, metallurgy, building materials, chemical industry.

3. Working principle:

  Motor drives belt and belt pulley, makes moving jaw up and down through eccentric shaft. When the moving jaw is up, the angle between lining plate and moving jaw becomes large, and this will push moving jaw plate close to the fixed jaw plate. During this process, the material is crushed and ground, thus the crushing will be done. When the moving jaw is down, the angle between lining plate and moving jaw becomes small, the moving jaw plate will leave the fixed jaw plate on account of the effect of pulling bar and spring, and then the crushed material will be discharged from the lower opening of the crushing room. With the motor continuously rotating and the material periodically crushed and discharged by the crusher, the mass production can be realized.

4. Technical Parameter of Jaw Crusher:

Specification	Size of Feed Opening (mm)	Max. Feeding Size (mm)	Adjustable Size of Discharge Opening (mm)	Capacity (t/h)	Motor Power Pole	Power (kw)	Dimension (mm)	Weight (t)
PE-150×250	150×250	125	10-40	1-3	4	5.5	670×820×760	0.81
PE-150×750	150×750	125	10-40	5-16	4	15	1050×1490×1055	3.8
PE-250×400	250×400	210	20-60	5-20	4	15	1160×1300×1240	2.8
PE-400×600	400×600	350	40-100	16-65	6	30	1480×1710×1646	7
PE-500×750	500×750	425	50-100	45-100	6	55	1800×1796×1940	12
PE-600×900	600×900	500	65-160	60-160	6	75	2235×2210×2380	17
PE-750×1060	750×1060	630	80-140	90-320	8	110	2430×2302×3110	29
PE-800×1060	300×1300	640	80-200	110-350	8	130	2530×2310×3110	30
PE-900×1200	900×1200	750	95-165	140-450	8	130	3789×2826×3025	50
PE-1000×1200	1000×1200	850	110-235	160-550	8	160	3889×2826×3025	57
PE-1200×1500	1200×1500	1020	150-300	400-800	8	120	4590×3342×3553	100.9
PEX-250×750	250×750	210	25-60	15-30	6	22	1750×1500×1420	5
PEX-250×1000	250×1000	210	25-60	16-52	6	30	1940×1650×1450	7
