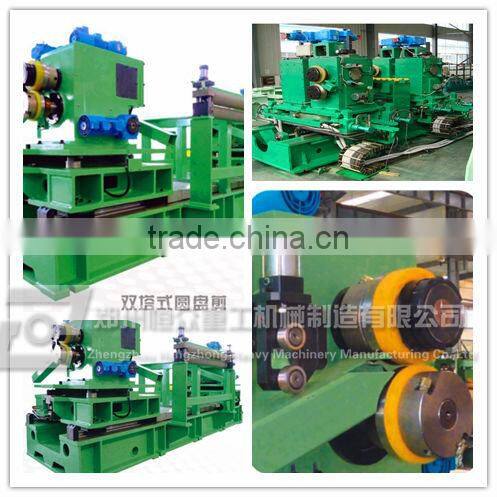

Help CenterSupplying Rotary Shear Cutting Production Line
Related Products
-
Supplying Cold Rolling Mill Artical Points Rotary Shear ManufacturerNegotiableMOQ: 1 Set -
Supplying Plate Industrial Rotary Shear Blades ManufacturerNegotiableMOQ: 1 Set
-
Supplying Rotary Shear Line for Galvanized Steel Sheet From Direct ManufacturerNegotiableMOQ: 1 Set
-
Supplying Hydraulic Industrial Rotary Shear Blade ManufacturerNegotiableMOQ: 1 Set
-
Supply Rotary Shear For Hot Rolled and Cold Rolled Aluminum PlateNegotiableMOQ: 1 Set
Specifications
Rotary Shear Cutting Production Line is of high quality, high performance, high efficiency.
1.Technical Parameters:
Shearing Speed |
30--180m/min |
Chuck Diameter |
350--400 |
Chuck Opening Degree |
700--1350mm |
Blade Thickness |
35--40mm |
Blade Material |
6CrW2si |
Blade Shaft Material |
42CrMo |
Shearing Variables |
Min 5mm Max 35mm(unilateral) Max 35mm(unilateral) |
Shearing Steel Strip Thickness |
1.5--5mm |
Blade Overlap Ajustment Precision |
±0.03mm
|
Blade Clearance Adjustment Precision |
±0.005mm |
2.Rotary Shear Units:
Specifications and models |
thickness |
width |
Coil weight |
Finished products width |
Shearing number |
Shearing speed |
2X1600 |
0.3-2mm |
900-1550mm |
30T |
≥40mm |
≤20 |
60m/min |
4X1600 |
0.5-4mm |
900-1550mm |
30T |
≥60mm |
≤13 |
50m/min |
6X1600 |
1-6mm |
900-1550mm |
30T |
≥60mm |
≤10 |
40m/min |
8X1800 |
2-8mm |
900-1800mm |
30T |
≥70mm |
≤6 |
30m/min |
10X2000 |
3-10mm |
900-2000mm |
30T |
≥80mm |
≤5 |
25m/min |
12X2000 |
3-12mm |
900-2000mm |
30T |
≥100mm |
≤5 |
20m/min |
3.Patents our Rotary Shears have got:
Change blades swiftness patent
Wide strip edge cutting patent
Should any of our concrete products be of your interest, please feel free to contact me, I am ready to provide you any information that you concern. I am looking forward to establishing long term business relationship with you!
