Specifications
Specifications :a. Exported to oversea
b.Great after-sale service
c.Simple structure & easy to operate
Aluminum alloy | 1000,3000,8000 series |
Entry thickness | 0.6 max mm |
Dia. of working roll | 200~320 mm |
Width of work roller | 800~2300mm |
Dia. of back up roll | Φ550~850 mm |
Width of back-up roller | 750~2250 mm |
Weight of coil | 30000 max kg |
Foil rough-rolling thickness | 0.05~0.2 mm |
Thickness of foil medium-rolling | 0.1 mm |
Thickness of foil rolling (double sheet) | mm |
Rolling speed | 2000 max m/min |
Exit of Al foil width | 700~2080 mm |
Rolling form | Non-reversing |
Electric control system | SIEMENS OMRON |
2,Our aluminum foil rolling mill have following advantages:
A. Aluminum foil rolling mill has an advanced hydraulic pressure on the thickness of the automatic control system (AGC).
B. Piecewise controlled cooling system .
C. Advanced pre-coated plate filtration system.
D. Automatic and manual controlled CO2 fire extinguishing system.
E. Full digital control and network communication, aim to provide control accuracy and reliability.
F. Advanced engineering workstations.
G. The roller bearing of aluminum foil rolling mill use a four-row cylindrical roller bearings and oil mist lubrication.
H. 12 inch color LCD operator terminals, easy to operate and display.

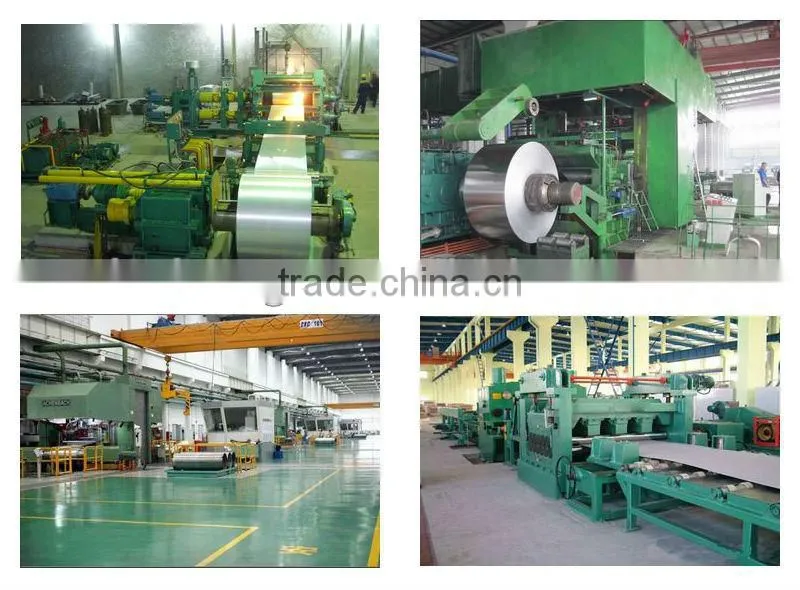

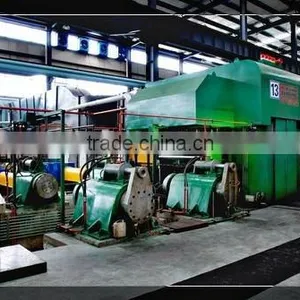

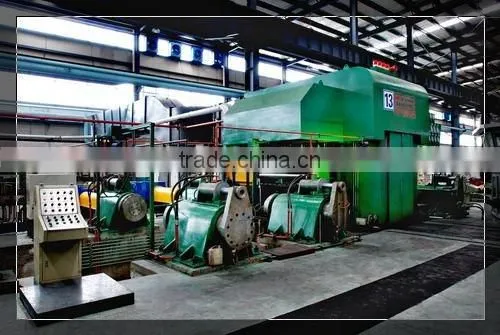

We are specialized in the design, manufacture & install of aluminum foil rolling mill, we supply kinds of auxiliary equipment and aluminum foil rolling mill accessories. We have a strong technical force, advanced production capacity and high quality after-sale service team. We can provide you product with comfortable price, great after-sale service.
The main products:
cold rolling mill
aluminum casting machine
aluminum foil rolling mill
tension leveling line
cut to lenth line
