high quality aluminum rolling mill for sale
- 20 Set / Sets per Month
- Qingdao
- T/T
- Power module Positive + Negative Electric Board Card for Thermatool High Frequency Welder
- Spiral Welded Pipe Tube Machine Line
- HF Welded Carbon Steel Furniture Pipe Making Machine
- Carbon Steel GI ERW Profile Shape Making Machine
- Black Tube Former Machinery HF Square Pipe Forming Machine
- HF Welded Straight Seam Metal Tube Production Line
Product Details
Condition: | New | Type: | Cold Rolling Mill | Place of Origin: | Henan, China |
Brand Name: | Hengzhong | Model Number: | HZLZ | Voltage: | 380v |
Power(W): | as designed | Dimension(L*W*H): | as drawing | Weight: | as designed |
Certification: | ISO9001:2008 | Warranty: | 1year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Aluminum rolling mill1,Products have been exported to oversea
2,Provide nonstandard product
3,High quality
4.ISO9001:2008
Product description of aluminum rolling mill

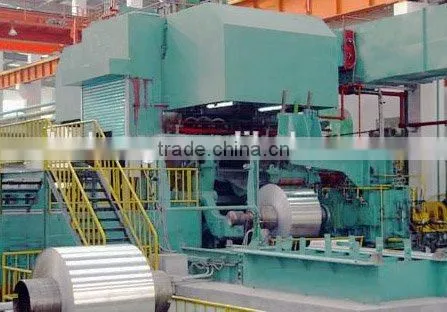

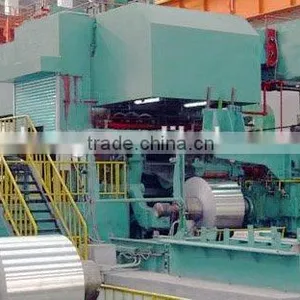

Aluminum rolling mill applies to product finished coil , using casting coil as blank,which provide blank for plate finishing and aluminum foil production.The entry thickness of the mill is max7mm, and the exit thickness is from 0.1 to 2 mm of pure aluminum and aluminum alloy.The whole mill installed level is advanced, with convenient and reliable operation and maintenance. It also can bring good economic benefits for the user.
Technical Parameter of aluminum rolling mill
Aluminum alloy | 1000,3000,8000 series |
Entry thickness | 10Max mm |
Entry width | 1000~2450mm |
Dia. of work roll | Φ280~560 mm |
Width of work roller | 850~2500 mm |
Dia. of back-up roll | Φ600~1500 mm |
Width of back-up roller | 800~2450 mm |
Width of exit | 950~2250 mm |
O.D. of coil | Φ2500 max mm |
Weight of coil | Max 20000 kg |
Rolling speed | Max 1000 mm/min |
Rough rolling exit thickness | 0.1~4.0 mm |
Finishing rolling exit thickness | 0.5~0.06 mm |
Rolling mode Non-reversing | Non-reversing |
ABB Electric control system | SIEMENS OMRON |
Model type(aluminum rolling mill)
| Φ280/φ780×1450 |
Φ380/φ960×1650 | |
Φ420/φ1100×1850 | |
Φ460/φ1300×2300 |
Product advantage
This aluminum rolling mill adopts advanced technology all over the world,equipped with AGC. CVC system. And it has automatic control function with the full hydraulic machine electricity integration. The machine can automatically balance and center, automatic thickness. It is the most advanced in the field of non-ferrous metal cold rolling equipment
Our company is specialized in manufacturing & installing aluminum equipment. We can also undertake the design and manufacture of other non-ferrous metal equipment. Our concrete products include such as cold rolling mill, aluminum cast rolling mill , aluminum foil rolling mill, tension leveler line, cut to length line, aluminum cleaning line ,cast roll, cast roller, steel sleeve, aluminum-related. We can undertake the mechanical, hydraulic & electrical upgrading of the above equipment.
Compony development
Strategic partners
main product
Quality control
Product certification
down-stream product
Why us?
1.we have We have professional engineers to help you design your machines.
2.We take care of your orders and ensure the quality.
3.reasonable price and good corporate image
4.Experience in international cooperation
1.We have technical team to provide technical advice,confirm customer's needs and offer complete solutions.
2.We have professional experience in the design,manufacture and installation of machines.
For more information, please contact us directly. We hope to receive your detailed inquiries soon, and we are looking forward to having the chance of cooperating with you in the near future.
