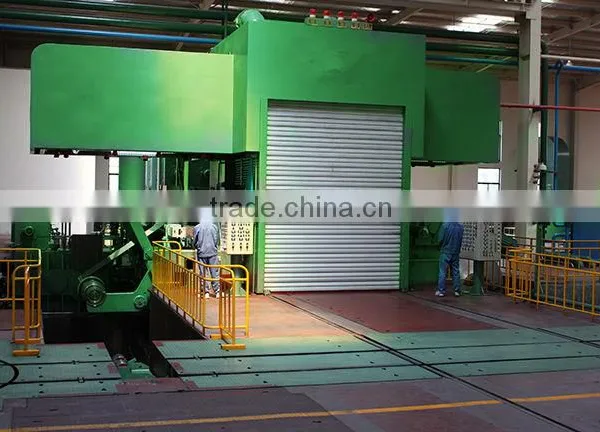

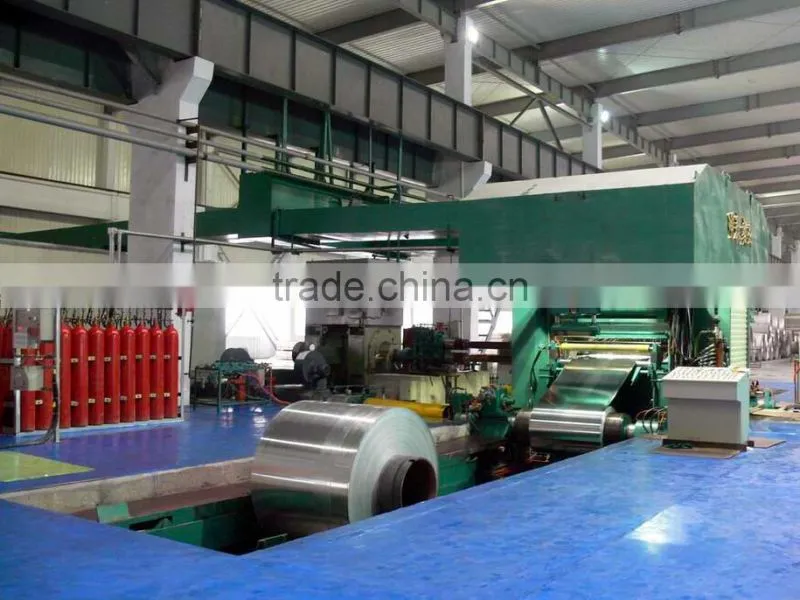

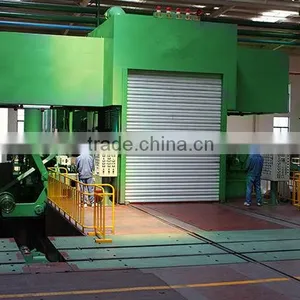

Used Cold Rolling Mill
- 10 Set / Sets per Month
- Qingdao Shanghai Tianjin
- T/T Credit Card
- Power module Positive + Negative Electric Board Card for Thermatool High Frequency Welder
- Spiral Welded Pipe Tube Machine Line
- HF Welded Carbon Steel Furniture Pipe Making Machine
- Carbon Steel GI ERW Profile Shape Making Machine
- Black Tube Former Machinery HF Square Pipe Forming Machine
- HF Welded Straight Seam Metal Tube Production Line
Product Details
Condition: | New | Type: | Cold Rolling Mill | Place of Origin: | Henan, China |
Brand Name: | Hengzhong | Model Number: | HZLZ | Voltage: | 380V |
Power(W): | 100-150KW | Dimension(L*W*H): | as required | Weight: | as required |
Certification: | ISO9001:2008 | Warranty: | 1 year | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Cold rolling machine1,Used in aluminum processing industry
2,Supply auxiliary equipment&accessories
3,High quality
Cold rolling machine detailed description
1,Technical Parameter:(aluminum cold rolling machine)
Aluminum alloy | 1000,3000,8000 series |
Entry thickness | 10Max mm |
Entry width | 1000~2300mm |
Dia. of work roll | Φ280~560 mm |
Width of work roller | 850~2500 mm |
Dia. of back-up roll | Φ600~1500 mm |
Width of back-up roller | 800~2450 mm |
Width of exit | 950~2250 mm |
O.D. of coil | Φ2500 max mm |
Weight of coil | 20000 max kg |
Rolling speed | 1000max mm/min |
Rough rolling exit thickness | 0.1~4.0 mm |
Finishing rolling exit thickness | 0.5~0.06 mm |
Rolling mode | Non-reversing |
ABB Electric control system | SIEMENS OMRON |
Model type(cold rolling machine) | Φ280/φ780×1450 |
Φ380/φ960×1650 | |
Φ420/φ1100×1850 | |
Φ460/φ1300×2300 |
We are specialized in the manufacture & install of aluminum cold rolling machine. Supply kinds of auxiliary equipment and rolling machine accessories. We have a strong technical force, advanced production capacity and high quality after-sale service team. We can provide you cold rolling machine with comfortable price, great after-sale service.
For more information, please contact us directly. We hope to receive your detailed inquiries soon, and we are looking forward to having the chance of cooperating with you in the near furture.
Keywords: cold rolling machine, 6 hi rolling mill, rolling machine
