Help CenterStone Vibrating Feeding Machine
Related Products
-
Gold Ore Vibrating Feeding MachineNegotiableMOQ: 1 Set -
Iron Ore Mining Vibrating Screen MeshNegotiableMOQ: 1 Set
-
Good Iron Ore Vibrating ScreeningUS$ 2,000 - 7,000MOQ: 1 Set
-
Iron Ore Benefication PlantUS$ 800,000 - 898,880MOQ: 1 Set
-
Stone & Quarry Production LineUS$ 3,000 - 12,000MOQ: 1 Set
Specifications
stone vibrating feeding machine1.reliable operation, a long span life
2.Exclusive vibrator technology
3.Low consumption

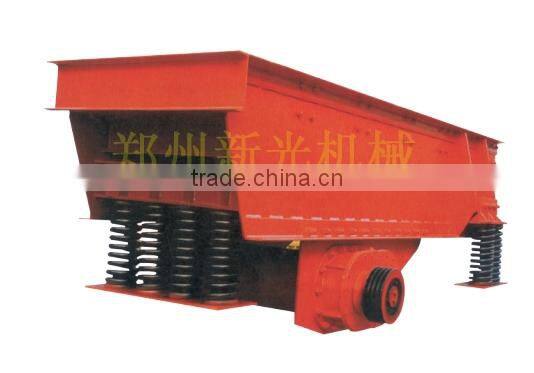

stone vibrating feeding machine
Vibrating Feeder Application:
Vibrating Feeder is a kind of linear direction feeding equipment, are widely used in mining, building material, silicate andchemical industry in the crushing and screening plants.In the Sand Stone production line, vibrating feeder can send materials to crusher evenly and continuously and at the same time, it can screen materials roughly.Vibrating feeder can be used in metallurgical industry, coal mining industry, miningselecting, building, chemical and grinding industry, etc.
Vibrating Feeder Features and Benefits:
Vibrating feeder is generally installed in front of the primary crusher, which conveys big blocks continuously and evenly while removing the dirt and impurities by screen bars. It can effectively control the feeding capacity to match with the capacity of the whole crushing plant. It has features of strong construction, antistrike and wearable.
1,Vibrating feeder features smooth vibrating, Double deck, reliable operation, a long span life and suitability for feeding .
2,Flexible design and easy adjustment
3. Easy maintenance.less investment, an energy efficient
4, Extra heavy-duty construction
5,Exclusive vibrator technology
6,Less power consumption, small start-up current, low noise;
Vibrating Feeder Working Principle:
Vibrating feeder consists of vibrating frame, spring, vibrator, motor vibrating device and motor. The vibrator is made of two fixed eccentric shafts whose gearsare jogged. When installation, the two gears must be jogged according to the sign. Through drive of the motor, the two eccentric shafts start rotating to producea linear huge power which forces the feeder to vibrate. Through the vibration,the materials will slip and sling on the funnel, moving forward, when the materials pass the screening part, smaller parts will fall down, and avoiding the furthercrushing, so screening purpose can be reached.
Specifications
Model | Hopper size(mm) | The Max feed particle size (mm) | Production (t/h) | Power (kw) | Weight (t) | Overall dimension (mm) |
GZD-850×3000 | 850×3000 | 400 | 80-120 | 7.5 | 3895 | 3110×1800×1600 |
GZD-960×3800 | 960×3800 | 500 | 120-210 | 11 | 3980 | 3850×1950×1630 |
GZD-1100×4200 | 1100×4200 | 580 | 200-430 | 15 | 4170 | 4400×2050×1660 |
GZD-1100×4900 | 1100×4900 | 580 | 280-500 | 15 | 4520 | 5200×2050×1700 |
GZD-1300×4900 | 1300×4900 | 650 | 450-600 | 22 | 5200 | 5200×2350×1750 |
